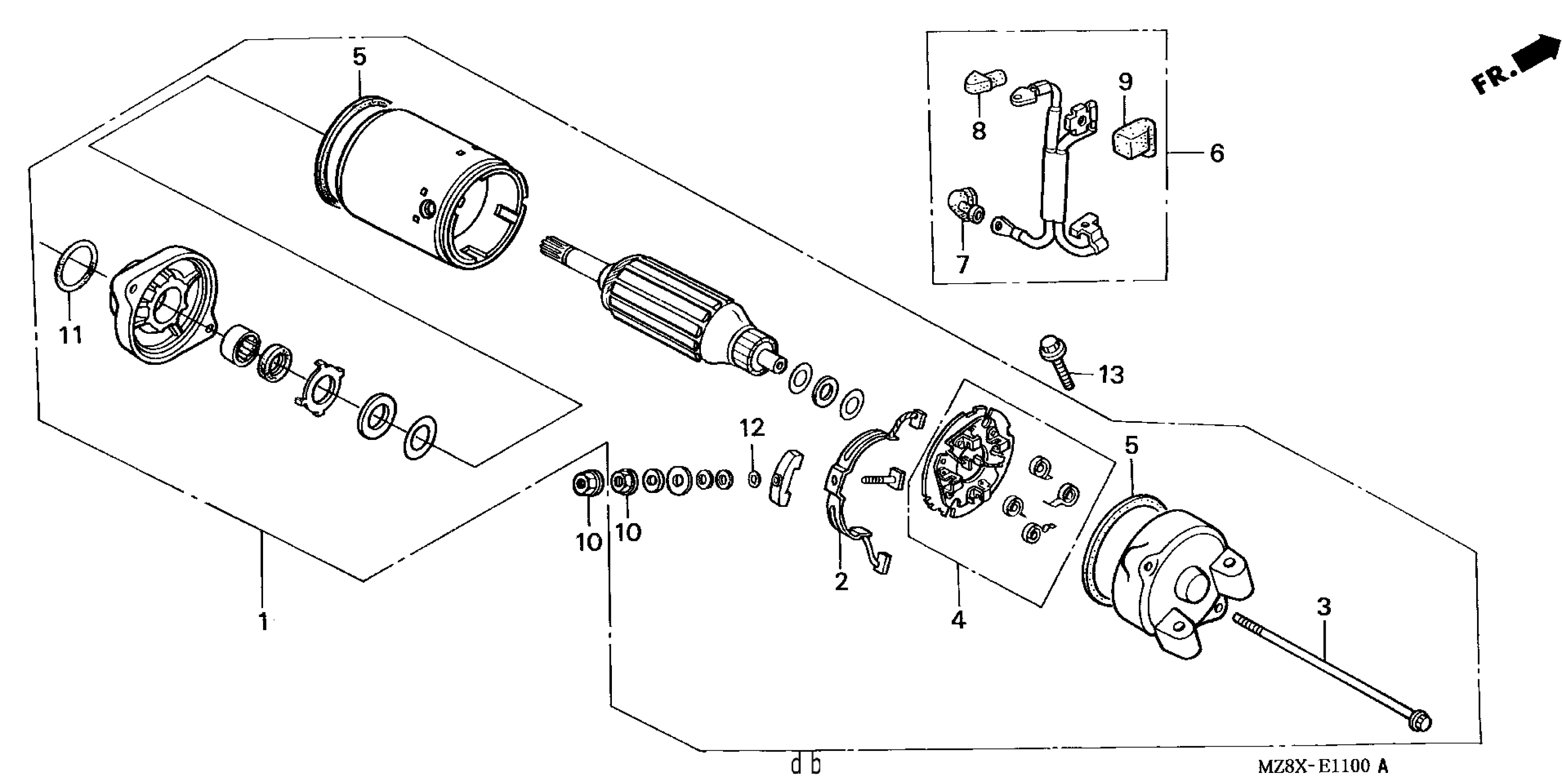

Honda VT600CA (99) SHADOW VLX, JPN, VIN# JH2PC210-XM900001 STARTER MOTOR Diagram

MOTOR ASSY., STARTER | Use up to Engine SN 4103956

31200-MBA-600

Unavailable

MOTOR ASSY., STARTER (MITSUBA) | Use from Engine SN 4103957

31200-MR1-831

Unavailable

TERMINAL SET, BRUSH

31201-MR6-008

$23.39

BOLT, SETTING

31205-MR1-008

$5.26

HOLDER SET, BRUSH

31206-MR6-008

$24.58

RING

31207-KS5-901

$3.12

CABLE SET, STARTER MOTOR & BATTERY GROUND

32411-MY0-770

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER B, STARTER MAGNETIC

32416-MR1-000

$4.87

COVER, BATTERY TERMINAL

32418-MR1-000

$5.31

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING

91320-MB0-000

$2.43

BOLT, FLANGE (6X32)

95801-06032-00

$1.49
