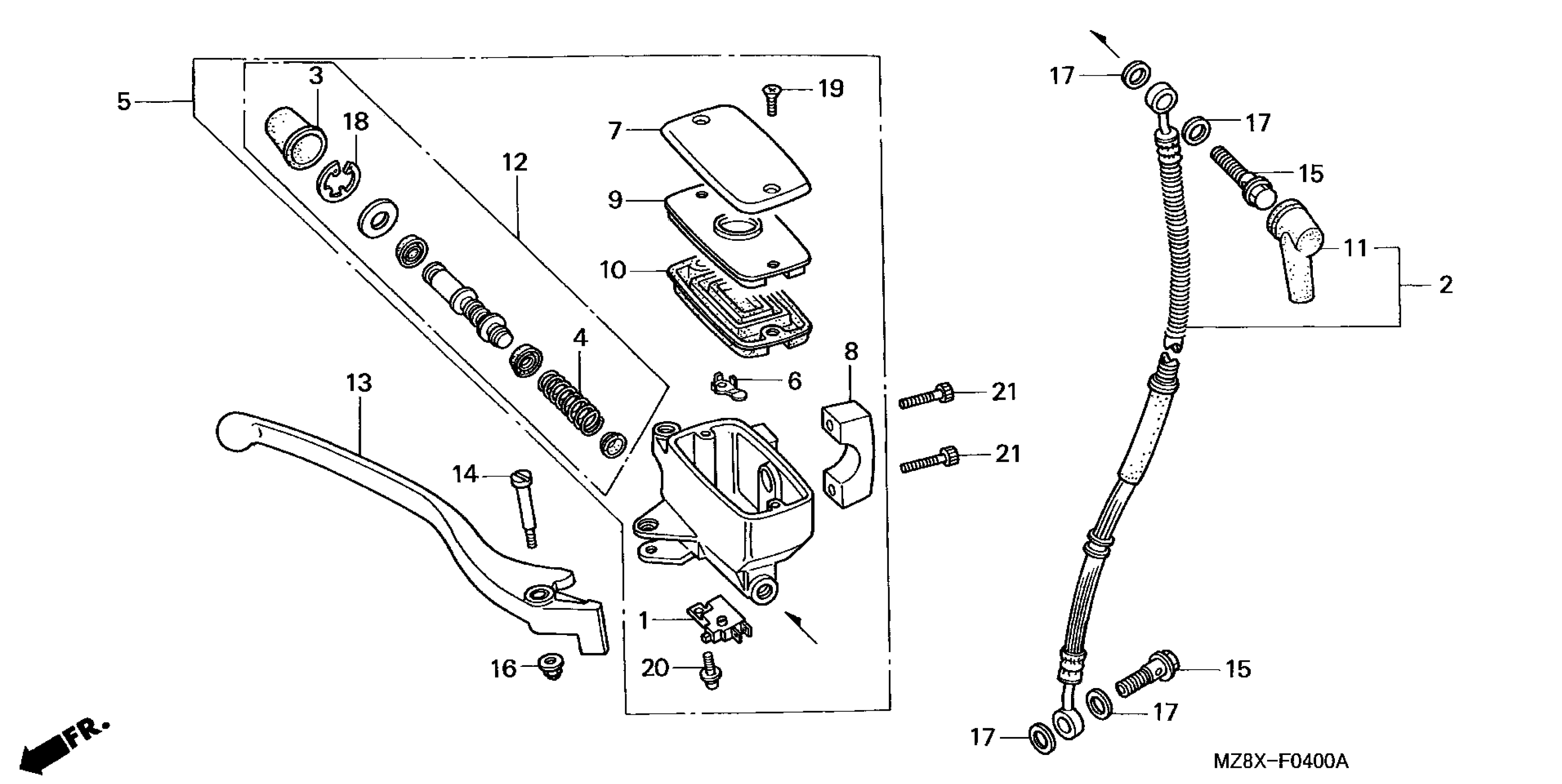

Honda VT600CA (99) SHADOW VLX, JPN, VIN# JH2PC210-XM900001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

HOSE, FR. BRAKE This part replaces 45126-MZ8-L51.

45126-MZ8-507

Unavailable

3

BOOT

45504-410-003

$12.16

4

SPRING

45506-KA3-731

$5.21

5

MASTER CYLINDER SUB-ASSY., FR. | Use up to Frame SN XM900603

45510-MZ8-305

Unavailable

5

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) | Use from Frame SN XM900604

45510-MBA-951

$243.58

6

PROTECTOR

45512-MA6-006

$4.28

7

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MR1-006.

45513-MR1-016

$30.62

7

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$30.62

8

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

9

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

10

DIAPHRAGM

45520-MM5-006

$15.12

11

BOOT, MASTER CYLINDER

45522-422-000

$8.68

12

MASTER CYLINDER SET

45530-MN9-305

$50.74

13

LEVER, R. HANDLE (COO) This part replaces 53175-MR1-671.

53175-MR1-305

$14.79

14

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

15

BOLT, OIL (10X22)

90145-MS9-612

$7.54

16

NUT, CAP (6MM)

90201-415-000

$2.05

17

WASHER, OIL BOLT

90545-300-000

$3.99

18

CIRCLIP

90651-MA5-671

$2.66

19

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

20

SCREW-WASHER (4X12)

93893-04012-07

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

21

BOLT, SOCKET (6X22)

96600-06022-10

$2.10
