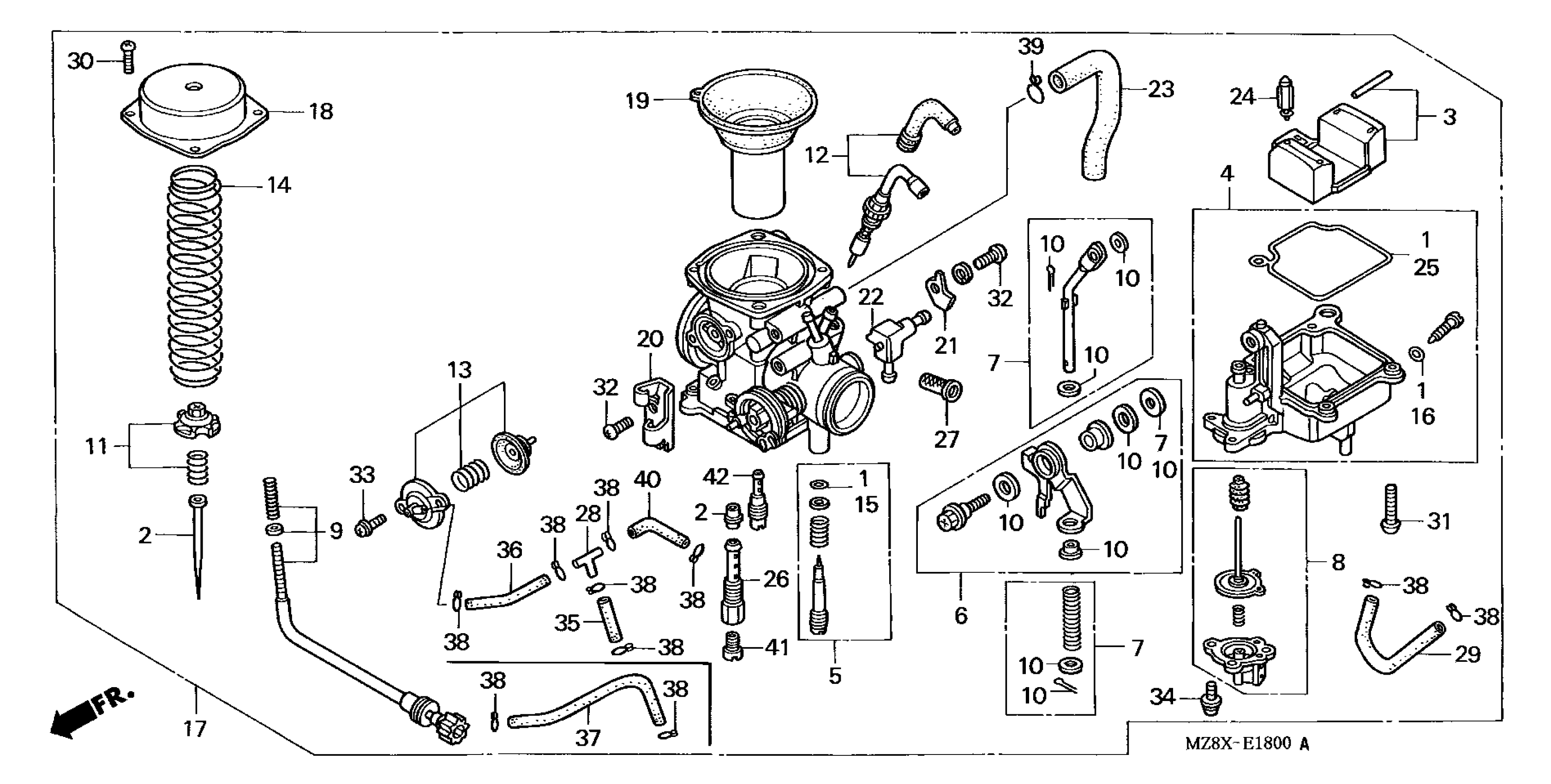

Honda VT600CA (99) SHADOW VLX, JPN, VIN# JH2PC210-XM900001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MZ8-H00.

16010-KEN-B11

$21.97

2

NEEDLE SET, JET

16012-MZ8-L50

Unavailable

3

FLOAT SET

16013-KR3-980

$49.62

4

CHAMBER SET, FLOAT

16015-MZ8-H00

Unavailable

5

SCREW SET A

16016-MZ8-S00

$20.45

6

LINK SET

16017-KEN-620

$37.01

7

ROD SET, PUMP

16019-MZ8-H00

Unavailable

8

DIAPHRAGM SET, PUMP This part replaces 16021-KBG-670.

16021-KEN-620

$108.44

9

SCREW SET B

16028-MZ8-H00

Unavailable

10

WASHER SET

16035-MZ8-H00

$7.32

11

PLATE SET, VALVE This part replaces 16037-MB0-671.

16037-ME5-671

$26.88

12

VALVE SET, STARTER

16046-MZ8-H00

$42.98

13

VALVE SET, AIR CUT

16048-MZ8-H00

$99.29

14

SPRING, COMPRESSION COIL

16050-MZ8-L50

Unavailable

15

O-RING (1.1X2.8)

16075-GHB-600

$2.12

16

O-RING (1.3X4.3)

16075-GHB-640

$2.65

17

CARBURETOR ASSY. (VE5AC A)

16100-MZ8-L50

Unavailable

18

TOP

16107-KCZ-000

Unavailable

19

PISTON, VACUUM

16111-MZ8-H00

$127.46

20

STAY, WIRE

16119-KBR-000

Unavailable

21

PLATE, STAY

16120-MZ8-H00

$1.88

22

HEATER

16136-MZ8-H00

Unavailable

23

TUBE

16144-MZ8-H00

Unavailable

24

VALVE, FLOAT

16155-MN9-004

$27.26

25

GASKET, FLOAT CHAMBER

16163-HM7-700

$9.03

26

HOLDER, NEEDLE JET

16165-MZ8-H00

Unavailable

27

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.36

28

T-JOINT

16180-195-731

$11.63

30

SCREW, PAN (4X8)

93500-04008-0A

$0.80

30

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$0.80

31

SCREW, PAN (4X14)

93500-04014-0A

$0.75

31

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$0.75

32

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

32

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

Unavailable

32

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

Unavailable

33

SCREW-WASHER (4X10)

93892-04010-08

$1.04

33

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.04

34

SCREW-WASHER (4X12)

93892-04012-00

$0.61

34

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$0.61

37

BULK HOSE, FUEL (3.5X3000) (3.5X110)

95001-35003-60M

$18.72

38

CLIP, TUBE (B7)

95002-02079

$1.09

39

CLIP, TUBE (B12)

95002-02120

Unavailable

41

JET, MAIN (#125) This part replaces 99101-GHB-1250.

99101-443-1250

$5.39

42

JET, SLOW (#45) This part replaces 99103-MZ8-0450.

99104-KPF-0450

$10.64
