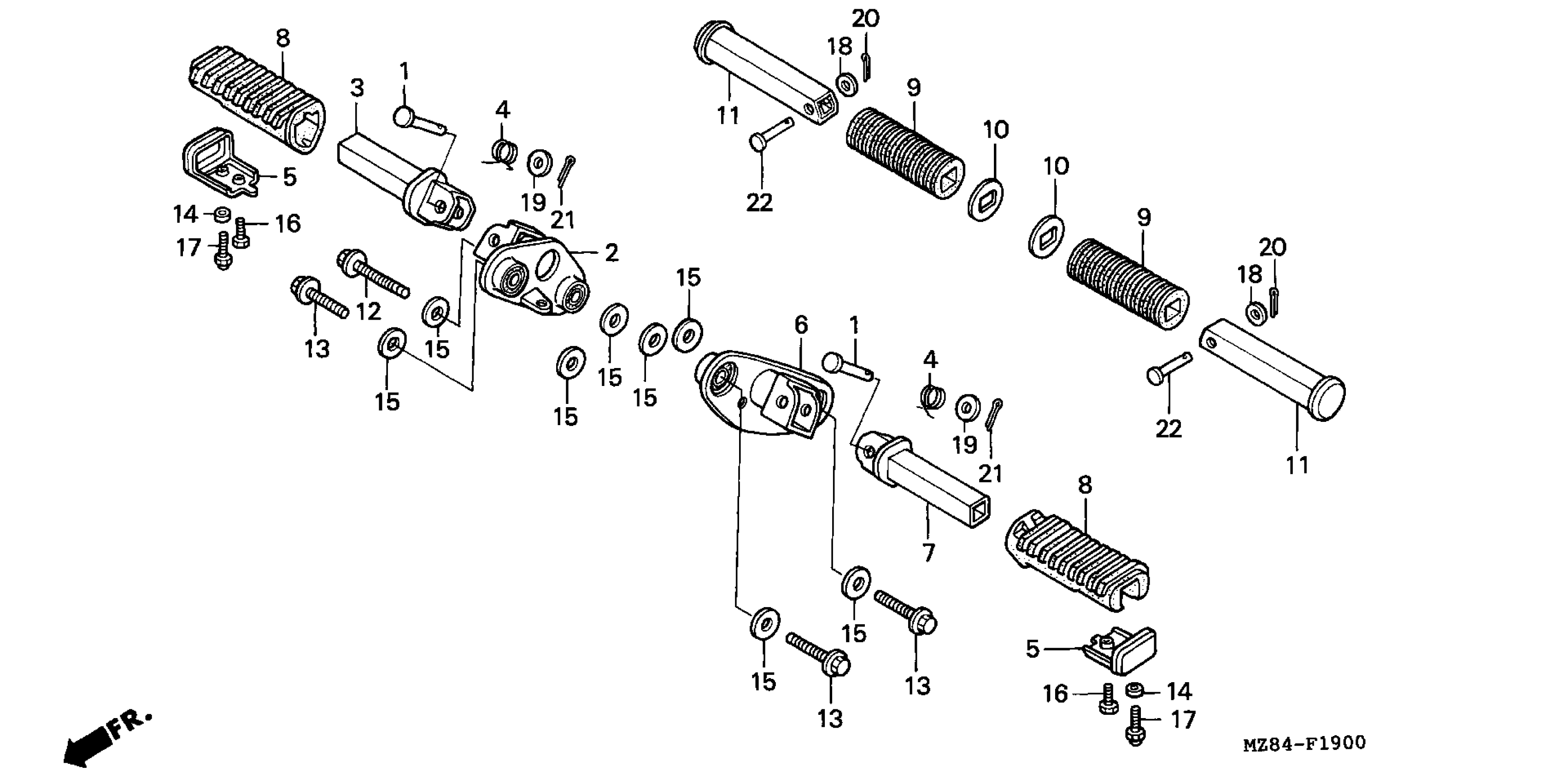

Honda VT600CA (97) SHADOW VLX, JPN, VIN# JH2PC210-VM800001 STEP 95-97 Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-033-010

$2.98

2

BRACKET, R. MAIN STEP (NOT AVAILABLE)

50610-MR1-000

Unavailable

3

BAR, R. STEP

50612-MR1-000

$28.16

4

SPRING, STEP RETURN

50617-MB1-700

$5.41

5

STOPPER, STEP RUBBER

50619-MN0-000

$15.60

6

BRACKET, L. MAIN STEP (NOT AVAILABLE)

50620-MR1-000

Unavailable

7

BAR, L. STEP

50642-MR1-000

$28.16

8

RUBBER, MAIN STEP

50661-MN0-000

$10.64

9

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$12.78

9

RUBBER, PILLION FOOTPEG

50716-371-660

$12.78

10

WASHER, PILLION STEP

50712-413-000

$3.22

11

BAR, PILLION STEP (COO) This part replaces 50715-MN0-000.

50715-MFR-305

$20.51

12

BOLT, FLANGE (10X75)

90102-MN0-000

$13.83

13

BOLT, SPECIAL FLANGE (10X40)

90101-MAA-000

Unavailable

13

BOLT, SPECIAL FLANGE (10X40) This part replaces 90124-KR3-000.

90101-MAA-000

Unavailable

14

COLLAR (6MM)

90311-GF0-810

$3.08

15

WASHER, PLAIN (10.3MM)

90527-230-000

$1.87

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

17

BOLT, CAP (6X16)

92501-06016-0A

$2.80

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

18

WASHER, PLAIN (6MM)

94101-06800

Unavailable

19

WASHER, PLAIN (8MM)

94101-08000

$0.75

20

PIN, SPLIT (1.6X12)

94201-16120

$0.94

21

PIN, SPLIT (2.0X15)

94201-20150

$0.94

22

PIN A, PILLION STEP

95015-81000

$2.01
