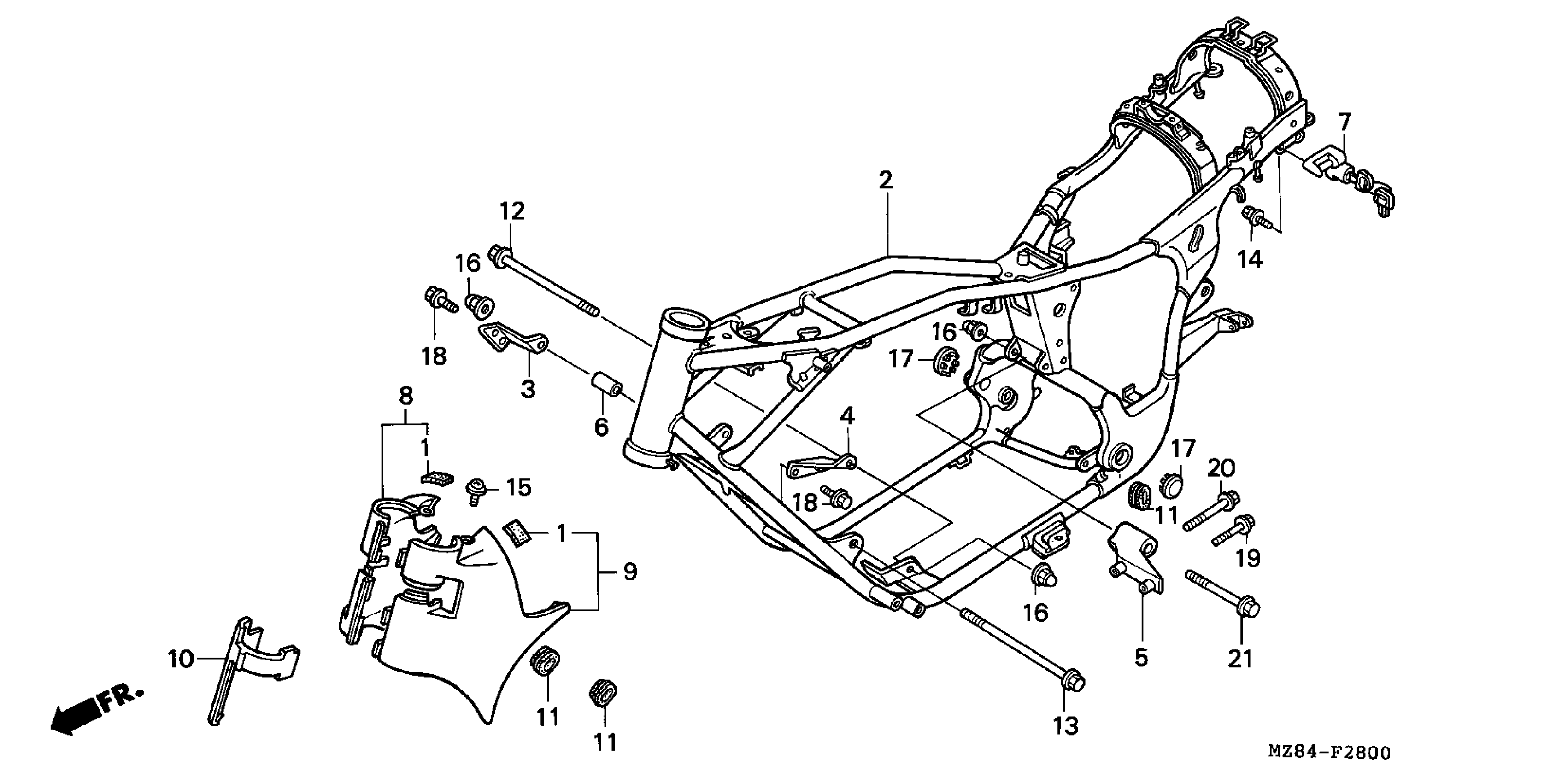

Honda VT600CA (97) SHADOW VLX, JPN, VIN# JH2PC210-VM800001 FRAME Diagram

#

Description
Price

1

RUBBER, FUEL TANK PROTECTOR

17511-MR1-300

$3.70

2

FRAME *NH1* (BLACK) (SOURCE: VINTAGE PARTS INC.)

50100-MZ8-B00ZA

Unavailable

3

PLATE, FR. ENGINE HANGER (UPPER) *NH1* (BLACK)

50176-MR1-000ZC

Unavailable

4

PLATE, FR. ENGINE HANGER (LOWER) *NH1* (BLACK)

50177-MR1-000ZC

$16.92

5

STAY, RR. ENGINE HANGER

50178-MR1-000

Unavailable

6

COLLAR, ENGINE HANGER

50363-KT7-000

$14.25

7

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

8

COVER, R. FR. SIDE *NH1* (BLACK)

63500-MR1-000ZC

$36.00

9

COVER, L. FR. SIDE *NH1* (BLACK)

63600-MR1-000ZC

$30.38

10

COVER, FR. CENTER *NH1* (BLACK)

63700-MR1-000ZD

$22.16

11

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

12

BOLT, FLANGE (10X140)

90102-MR1-000

$17.36

13

BOLT, FLANGE (10X165)

90103-MR1-000

$19.02

14

BOLT, HELMET HOLDER SETTING

90107-449-000

$3.35

15

SCREW, PAN (5X16.5)

90142-MB0-000

$2.58

16

NUT, FLANGE CAP (10MM)

90202-MR1-000

$3.31

17

CAP, PIVOT *NH1* (BLACK)

90302-MR1-000ZC

$19.46

18

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

19

BOLT, FLANGE (8X30)

95701-08030-07

$2.28

20

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.43

21

BOLT, FLANGE (10X70)

95801-10070-07

$2.64
