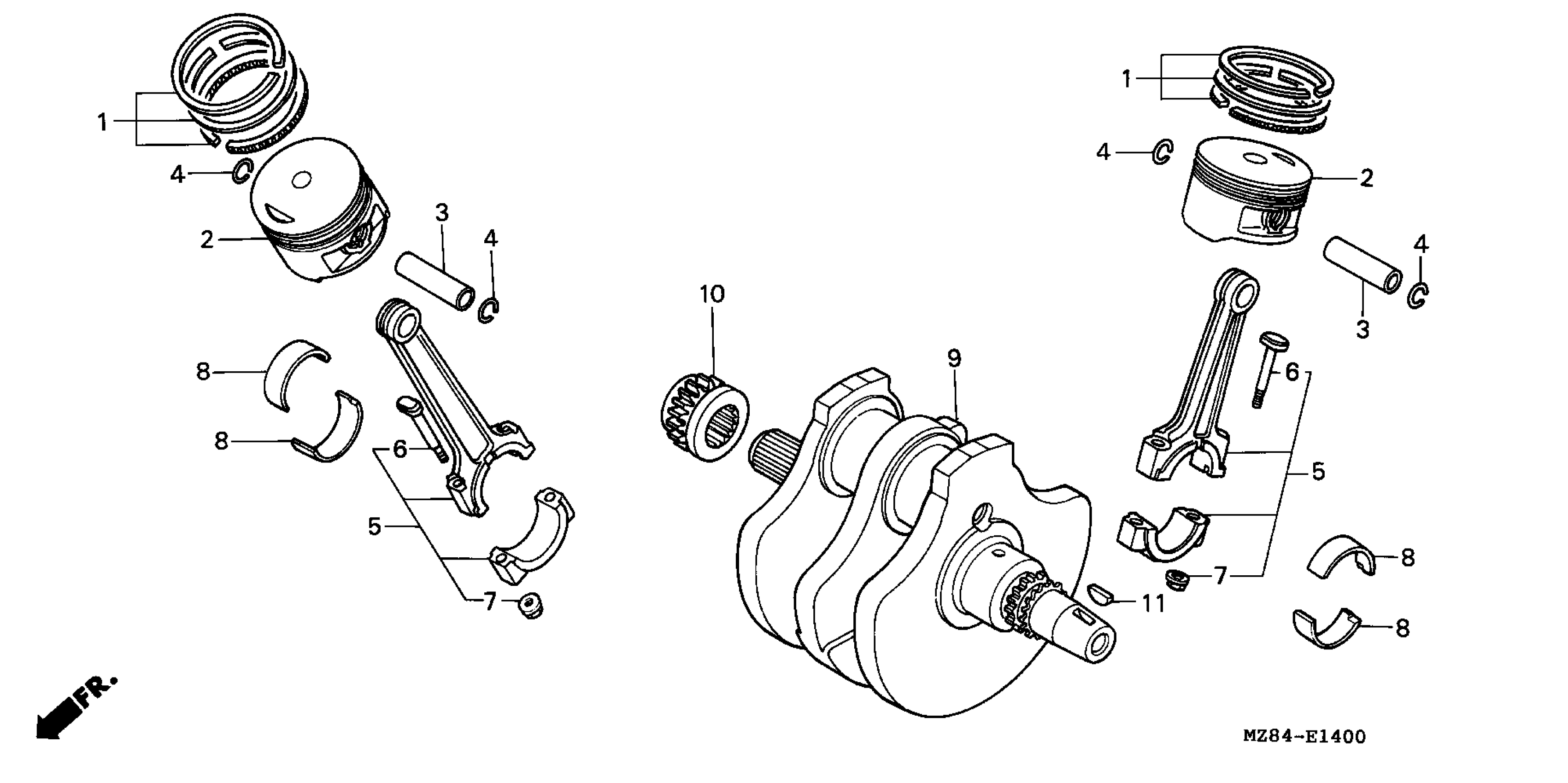

Honda VT600CA (96) SHADOW VLX, JPN, VIN# JH2PC210-TM700001 CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON (STD) (NIPPON)

13011-MS6-305

$66.50

1

RING SET, PISTON (0.25) (NIPPON) | (Optional).

13012-MS6-305

$70.54

1

RING SET, PISTON (0.50) (NIPPON) | (Optional).

13013-MS6-305

Unavailable

2

PISTON (STD)

13101-MM9-000

Unavailable

2

PISTON (0.25) | (Optional).

13102-MM9-305

$112.74

2

PISTON (0.50) | (Optional).

13103-MM9-305

Unavailable

3

PIN, PISTON This part replaces 13111-MB0-000.

13111-MT3-000

$11.04

3

PIN, PISTON

13111-MT3-000

$11.04

4

CLIP, PISTON PIN (18MM)

13112-MF5-000

$2.39

5

ROD ASSY. B, CONNECTING This part replaces 13201-MR1-000.

13210-MBL-G00

$252.16

5

ROD ASSY. B, CONNECTING This part replaces 13202-MR1-000.

13210-MBL-G00

$252.16

5

ROD ASSY. C, CONNECTING

13203-MR1-000

$252.15

5

ROD ASSY. B, CONNECTING

13210-MBL-G00

$252.16

6

BOLT, CONNECTING ROD (NAGOYA RASHI)

13213-463-003

$16.11

7

NUT, CONNECTING ROD

13215-ML7-000

$3.89

8

BEARING A, CONNECTING ROD (BLUE) This part replaces 13216-MF5-003.

13216-MF5-004

Unavailable

8

BEARING A, CONNECTING ROD (BLUE)

13216-MF5-004

Unavailable

8

BEARING B, CONNECTING ROD (BLACK)

13217-MF5-003

$18.93

8

BEARING C, CONNECTING ROD (BROWN)

13218-MF5-003

Unavailable

9

CRANKSHAFT

13310-MZ8-B40

$916.95

9

CRANKSHAFT (NOT AVAILABLE)

13320-MZ8-B40

Unavailable

9

CRANKSHAFT (NOT AVAILABLE)

13330-MZ8-B40

Unavailable

10

SPROCKET, CAM CHAIN DRIVE (20T)

14311-MR1-000

Unavailable

11

KEY, WOODRUFF (25X14)

90741-413-000

$2.56
