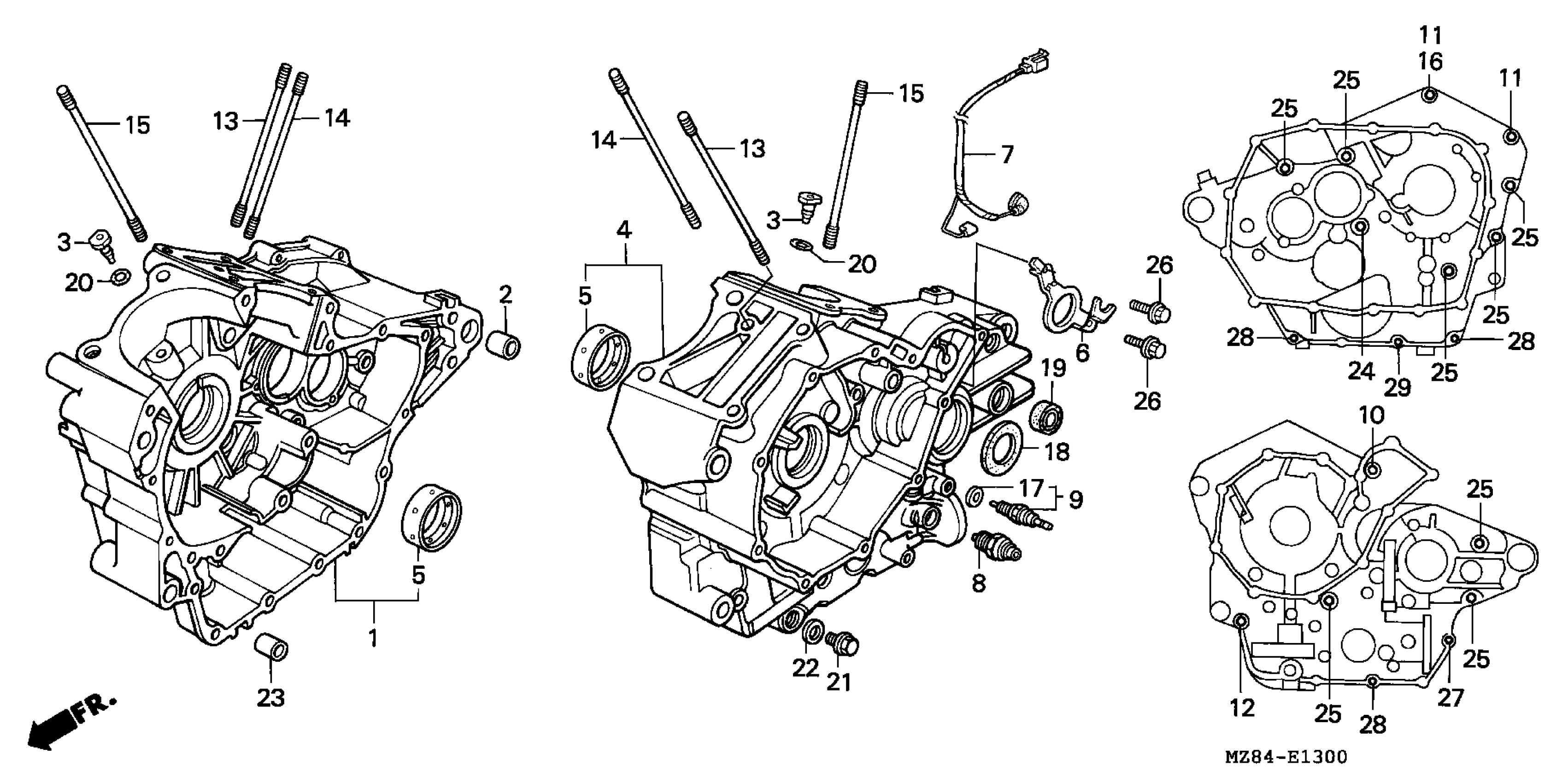

Honda VT600CA (96) SHADOW VLX, JPN, VIN# JH2PC210-TM700001 CRANKCASE Diagram

CRANKCASE, R.

11100-MZ8-B40

$1,234.74

COLLAR (23X20)

11105-MM9-000

$9.11

JET, OIL

11146-MM9-000

Unavailable

CRANKCASE, L. (NOT AVAILABLE)

11200-MR1-830

Unavailable

BEARING A, MAIN (BLUE)

13325-MM9-315

Unavailable

BEARING B, MAIN (BLACK)

13326-MM9-315

Unavailable

BEARING C, MAIN (BROWN)

13327-MM9-315

Unavailable

PLATE, OIL SEAL SETTING

23531-MV1-000

$10.10

SUB-HARNESS A (SOURCE: VINTAGE PARTS INC.)

32101-MR1-000

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH ASSY., NEUTRAL (TEC) | Use up to Engine SN 2808260 This part replaces 35600-MS9-600.

35600-MAW-601

$23.73

SWITCH ASSY., NEUTRAL (TEC)

35600-MAW-601

$23.73

BOLT, FLANGE (8X125) This part replaces 95701-08125-00.

95701-08125-07

$4.87

BOLT, FLANGE (8X125)

95701-08125-07

$4.87

BOLT, FLANGE (8X140)

90002-MR1-000

$5.95

BOLT, FLANGE (8X70) This part replaces 90008-KE9-000.

95801-08070-00

$1.89

BOLT, FLANGE (8X70)

95801-08070-00

$1.89

BOLT, STUD

90011-MZ8-B40

$11.39

BOLT, STUD (12X177)

90012-MZ8-B40

$22.46

BOLT, STUD (10X177)

90013-MZ8-B40

$17.15

WASHER, SEALING (8MM)

90442-MR1-770

$2.28

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

OIL SEAL (25X45X7) (ARAI)

91204-MG3-003

$9.80

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

PIN, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

BOLT, FLANGE (6X80)

96001-06080-00

$2.21
