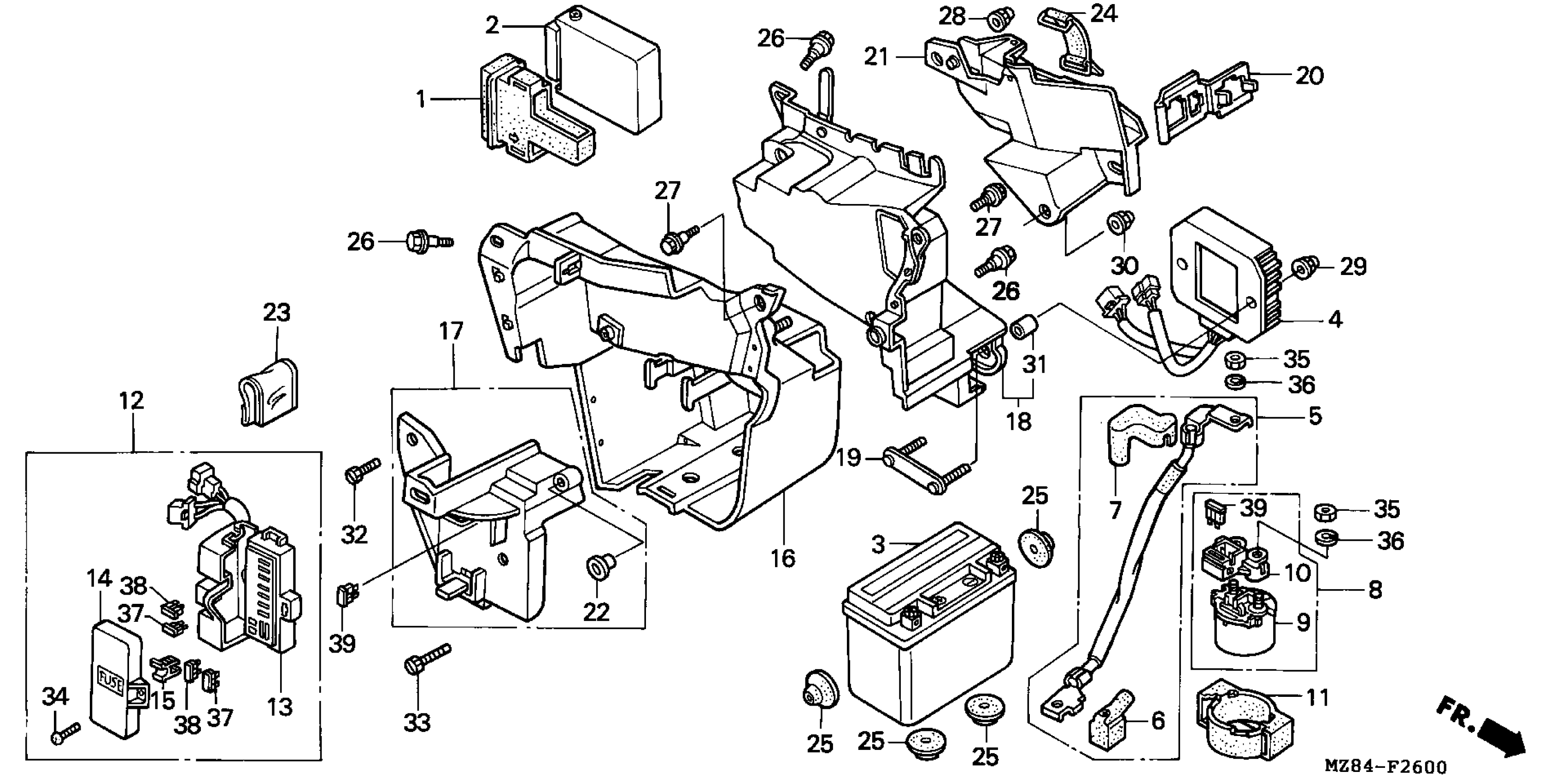

Honda VT600CA (95) SHADOW VLX, JPN, VIN# JH2PC210-SM600001 BATTERY Diagram

#

Description
Price

1

SUSPENSION, SPARK UNIT

30405-MM5-000

Unavailable

2

MODULE, IGNITION CONTROL (CDI) (OKI)

30410-MR1-611

Unavailable

3

BATTERY (YTX9-BS) (YUASA) (MSDS)

31500-HN1-003

Unavailable

3

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-677.

31500-HN1-003

Unavailable

3

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-678.

31500-HN1-003

Unavailable

4

RECTIFIER ASSY., REGULATE

31600-MY0-771

$311.84

5

CABLE, STARTER MAGNETIC BATTERY

32401-MY0-770

$24.30

6

COVER, BATTERY TERMINAL

32412-MR1-000

Unavailable

7

COVER, STARTER MAGNETIC

32416-KW9-000

Unavailable

8

SWITCH ASSY., STARTER MAGNETIC

35850-MK3-671

$114.43

9

SWITCH, STARTER MAGNETIC

35851-MF5-751

$95.57

10

HOLDER ASSY., FUSE

35855-MG7-751

$33.93

11

RUBBER, SHOCK

35856-MR1-000

$9.88

12

BOX ASSY., FUSE

38200-MR1-830

$87.96

13

BASE

38201-MR1-830

Unavailable

14

COVER, FUSE

38202-MR1-830

Unavailable

15

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

16

BOX, BATTERY

50325-MR1-000

Unavailable

17

COVER, BATTERY

50330-MR1-000

$24.65

18

PLATE, ELECTRIC

50333-MR1-000

Unavailable

19

PLATE, REGULATE RECTIFIER

50336-MR1-000

$11.30

20

HOLDER, CONNECTOR

50338-MR1-010

$11.38

21

TRAY, TOOL

50339-MR1-000

Unavailable

22

COLLAR A, FAIRING SETTING

64531-GE3-000

Unavailable

23

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.00

24

BAND, SIDE COVER

83606-356-000

$20.88

25

RUBBER, BATTERY BOX

83618-323-000

$2.36

26

BOLT, FLANGE (6MM)

90111-162-000

$2.62

27

BOLT, FLANGE (6MM)

90116-ME9-000

$3.12

28

NUT, CAP

90201-428-900

$2.03

29

NUT, CAP (6MM)

90202-ZV0-000

$2.65

30

NUT, CAP (6MM)

90308-SB0-000

Unavailable

31

SPACER, HANDLE END GUARD

90503-MG7-000

$2.80

32

BOLT, RECESSED (6X10)

92301-06010-0A

$0.71

33

BOLT, RECESSED (6X25)

92301-06025-0A

$1.32

34

SCREW, PAN (4X10) This part replaces 93500-04010.

93500-04010-0A

$0.83

34

SCREW, PAN (4X10)

93500-04010-0A

$0.83

34

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$0.83

35

NUT, HEX. (6MM)

94002-06080-0S

$1.19

36

WASHER, SPRING (6MM)

94111-06800

$1.03

37

FUSE, BLADE (10A)

98200-31000

$1.19

38

FUSE, BLADE (15A)

98200-31500

$1.19

39

FUSE, BLADE (30A)

98200-33000

$1.19
