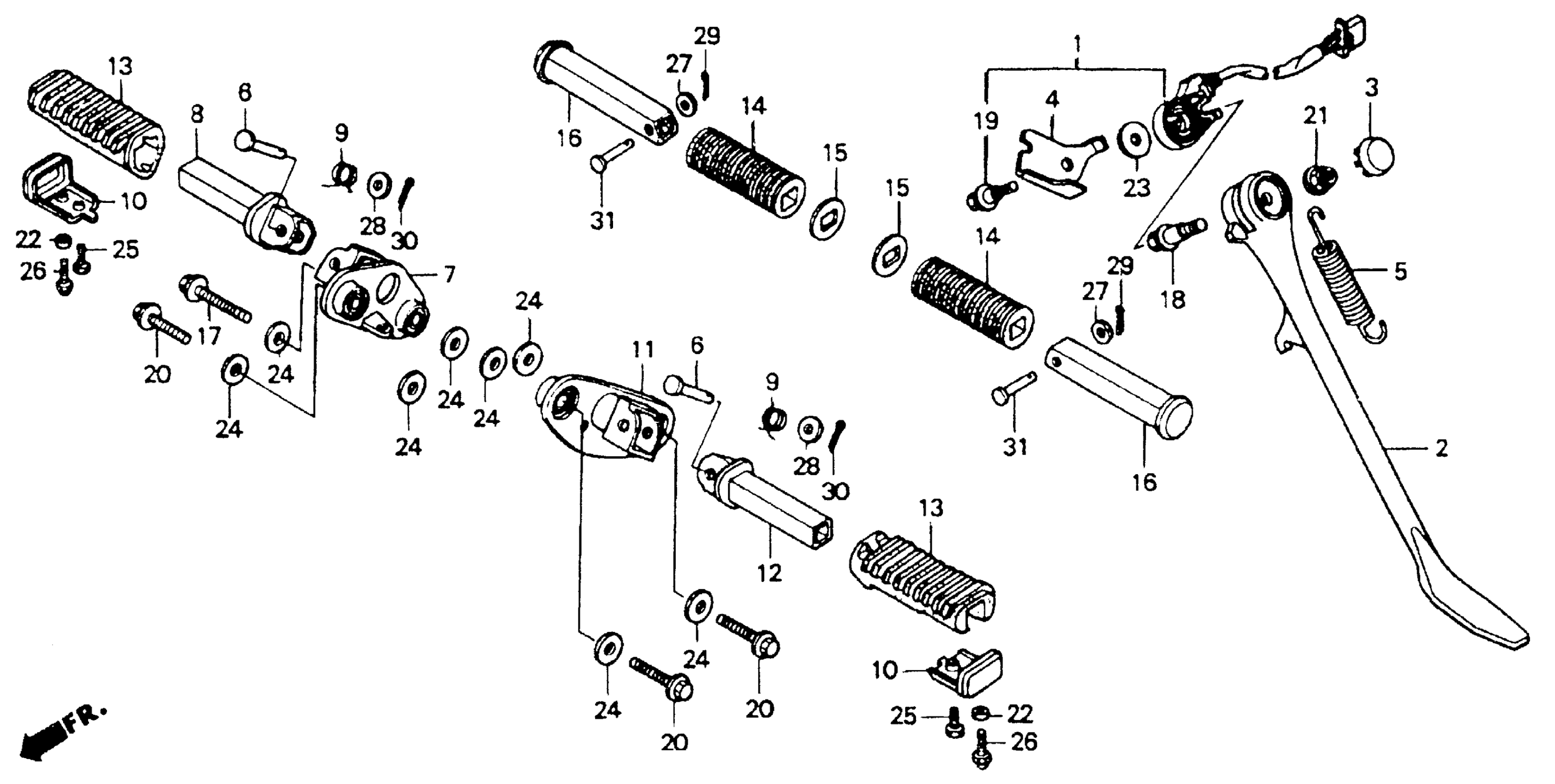

Honda VT600CA (94) SHADOW VLX, JPN, VIN# JH2PC213-RM500001 STEP 94 Diagram

#

Description
Price

1

SWITCH SET, SIDE STAND

35700-MZ8-305

$90.93

2

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-MZ8-770.

50530-KW9-920

Unavailable

3

CAP, STAND PIVOT

50531-MZ8-000

$11.43

4

HOLDER, SWITCH (SOURCE: VINTAGE PARTS INC.)

50532-MZ8-000

Unavailable

5

SPRING, SIDE STAND

50541-MK3-000

$7.70

6

PIN, STEP BAR JOINT

50603-033-010

$2.98

7

BRACKET, R. MAIN STEP (NOT AVAILABLE)

50610-MR1-000

Unavailable

8

BAR, R. STEP

50612-MR1-000

$28.16

9

SPRING, STEP RETURN

50617-MB1-700

$5.41

10

STOPPER, STEP RUBBER

50619-MN0-000

$15.60

11

BRACKET, L. MAIN STEP (NOT AVAILABLE)

50620-MR1-000

Unavailable

12

BAR, L. STEP

50642-MR1-000

$28.16

13

RUBBER, MAIN STEP

50661-MN0-000

$10.64

14

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$12.78

14

RUBBER, PILLION FOOTPEG

50716-371-660

$12.78

15

WASHER, PILLION STEP

50712-413-000

$3.22

16

BAR, PILLION STEP (COO) This part replaces 50715-MN0-000.

50715-MFR-305

$20.51

17

BOLT, FLANGE (10X75)

90102-MN0-000

$13.83

18

BOLT, SIDE STAND PIVOT

90108-MR5-000

$7.45

19

BOLT, SPECIAL (6MM)

90111-MZ8-000

$9.42

20

BOLT, SPECIAL FLANGE (10X40)

90101-MAA-000

Unavailable

20

BOLT, SPECIAL FLANGE (10X40) This part replaces 90124-KR3-000.

90101-MAA-000

Unavailable

21

NUT, SIDE STAND

90203-MF9-710

$3.41

22

COLLAR (6MM)

90311-GF0-810

$3.08

23

WASHER (6MM)

90406-KV3-780

$2.20

24

WASHER, PLAIN (10.3MM)

90527-230-000

$1.87

25

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

25

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.29

25

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.29

25

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

25

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

26

BOLT, CAP (6X16) This part replaces 92500-06016-0A.

92501-06016-0A

$2.80

26

BOLT, CAP (6X16)

92501-06016-0A

$2.80

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

27

WASHER, PLAIN (6MM)

94101-06800

Unavailable

28

WASHER, PLAIN (8MM)

94101-08000

$0.75

29

PIN, SPLIT (1.6X10)

94201-16100

$0.94

30

PIN, SPLIT (2.0X15)

94201-20150

$0.94
