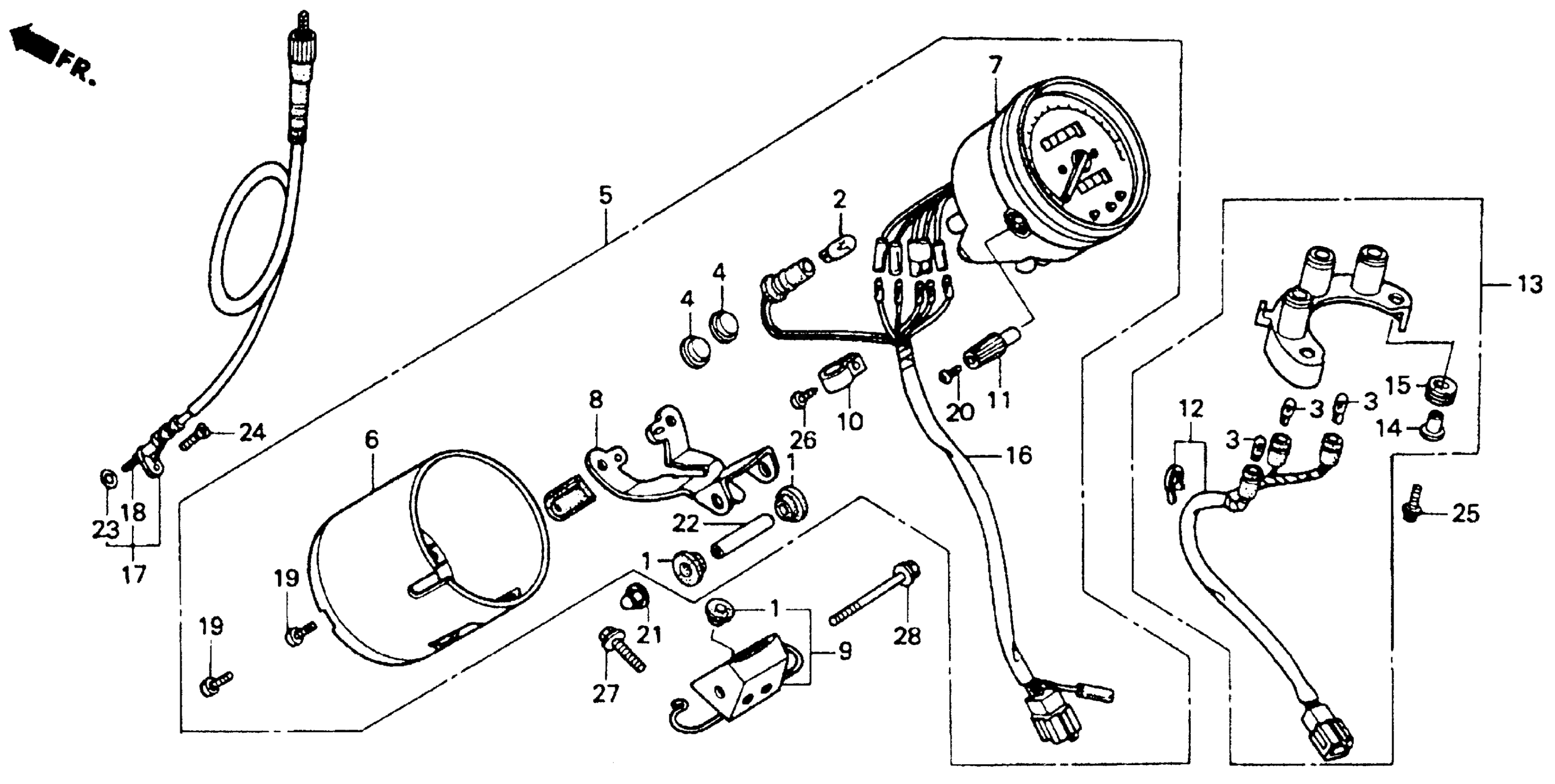

Honda VT600CA (94) SHADOW VLX, JPN, VIN# JH2PC213-RM500001 SPEEDOMETER Diagram

RUBBER, TAILLIGHT SETTING

33718-MM2-000

$4.74

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

BULB, WEDGE BASE (12V 1.7W)

34908-MG9-951

$2.33

CAP A

37116-KG4-008

Unavailable

SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE)

37200-MR1-671

Unavailable

COVER, SPEEDOMETER

37202-MR1-008

Unavailable

SPEEDOMETER (NOT AVAILABLE)

37210-MR1-671

Unavailable

STAY A

37211-MR1-008

$42.52

STAY, METER

37212-MR1-000

$44.13

CLAMP

37215-KS3-901

$2.92

KNOB, TRIP

37220-MR1-008

Unavailable

SOCKET (NOT AVAILABLE)

37562-MR1-008

Unavailable

BOX ASSY., PILOT (NOT AVAILABLE)

37600-MR1-008

Unavailable

COLLAR

37606-MR1-008

Unavailable

RUBBER, PILOT BOX SETTING

37607-MR1-008

Unavailable

SOCKET (SOURCE: VINTAGE PARTS INC.)

37619-MR1-671

Unavailable

CABLE ASSY., SPEEDOMETER

44830-MR1-000

Unavailable

CABLE (INNER) (NOT AVAILABLE)

44831-MR1-300

Unavailable

SCREW, TRUSS (4X8)

90106-MR1-008

$3.24

SCREW, PAN (2X6)

90158-KM7-911

$1.92

NUT, CAP (6MM)

90202-ZV0-000

$2.91

COLLAR (8X50)

91104-MR1-008

$9.98

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

SCREW-WASHER (4X16)

93891-04016-07

$1.49

SCREW, TAPPING (4X16)

93903-24420

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X60) (SOURCE: VINTAGE PARTS INC.)

96001-06060-02

Unavailable
