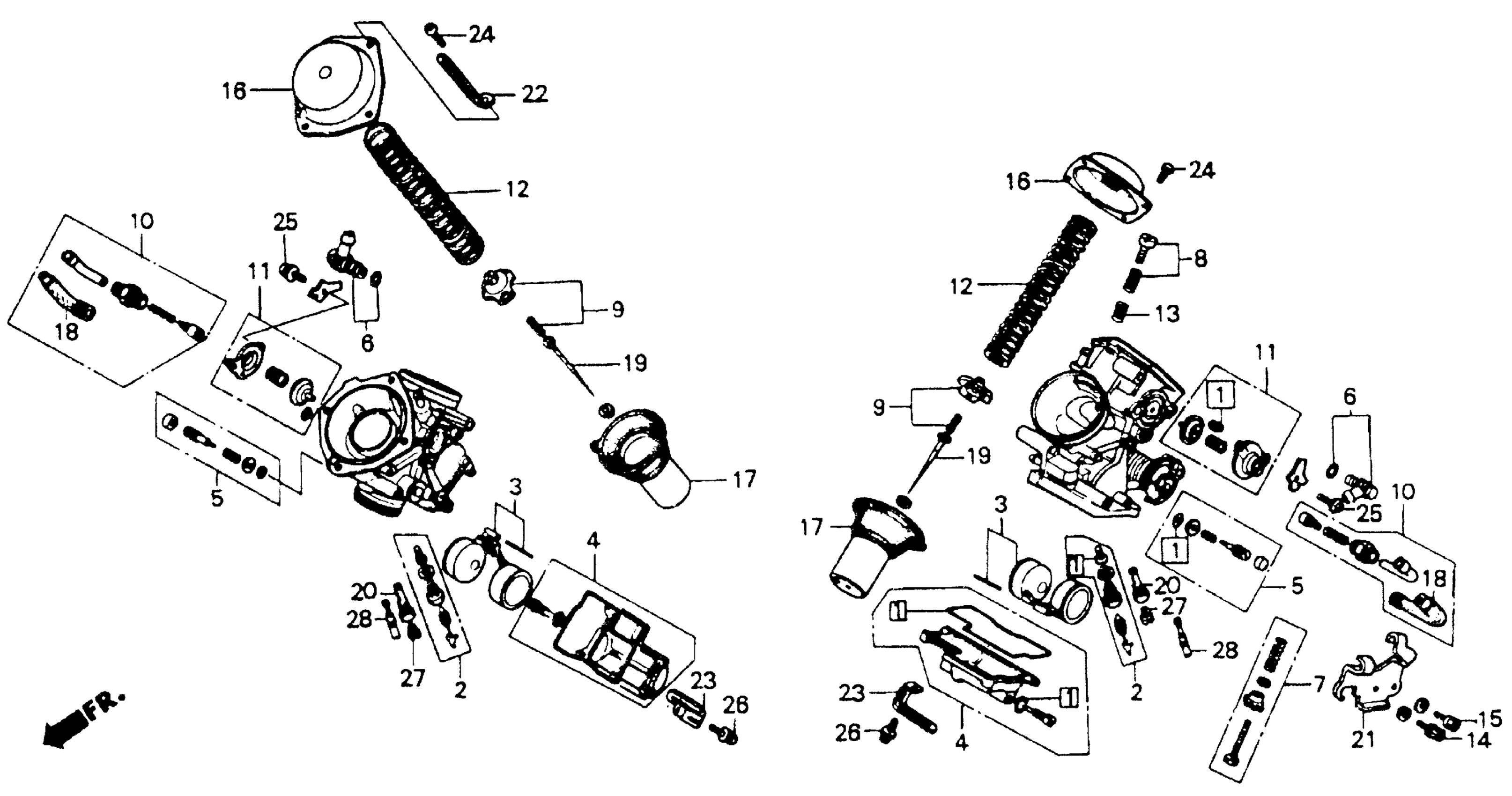

Honda VT600CA (94) SHADOW VLX, JPN, VIN# JH2PC213-RM500001 CARBURETOR (COMPONENTS) Diagram

#

Description
Price

1

GASKET SET

16010-MR1-691

$62.84

2

VALVE SET, FLOAT

16011-MR1-004

$67.52

3

FLOAT SET

16013-MAH-000

$49.54

3

FLOAT SET This part replaces 16013-ML7-004.

16013-MAH-000

$49.54

4

CHAMBER SET, FLOAT

16015-MBL-731

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MR6-671.

16015-MBL-731

Unavailable

5

SCREW SET

16016-MAH-670

$26.48

5

SCREW SET This part replaces 16016-MF5-671.

16016-MAH-670

$26.48

6

JOINT SET

16026-MR1-004

$41.04

7

SCREW SET This part replaces 16028-KM9-711.

16028-MAH-000

$55.95

7

SCREW SET

16028-MAH-000

$55.95

7

SCREW SET This part replaces 16028-ME9-671.

16028-MAH-000

$55.95

8

SCREW SET

16029-KEJ-900

Unavailable

8

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

8

SCREW SET This part replaces 16029-MN4-003.

16029-KEJ-900

Unavailable

9

PLATE SET, VALVE

16037-ME5-671

$29.52

10

VALVE SET, STARTER

16046-MAB-690

$46.90

10

VALVE SET, STARTER This part replaces 16046-MR1-004.

16046-MAB-690

$46.90

11

VALVE SET, AIR CUT This part replaces 16048-MR1-004.

16048-MR1-305

Unavailable

12

SPRING, VACUUM PISTON

16051-MG9-004

Unavailable

13

SPRING

16052-ME9-672

$5.67

15

BOLT, HEX.

16081-MR1-004

Unavailable

16

TOP This part replaces 16107-MM9-621.

16107-MN2-671

Unavailable

17

PISTON, VACUUM

16111-MR1-004

$184.59

18

CAP, CABLE SEALING

16118-ME9-671

$14.18

19

NEEDLE, FR. JET

16151-MR1-671

Unavailable

20

HOLDER, NEEDLE JET

16165-MR1-004

Unavailable

21

STAY, WIRE

16169-MR1-004

Unavailable

23

CLIP, PLATE

16179-ME9-751

$10.15

24

SCREW, PAN (4X10)

93500-04010-0A

$1.49

24

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

25

SCREW-WASHER (4X12)

93892-04012-00

$1.49

25

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

26

SCREW-WASHER (4X16)

93892-04016-00

$1.49

26

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

27

JET, MAIN (#115) This part replaces 99101-GHB-1150.

99101-MAZ-1150

$8.77

27

JET, MAIN (#115)

99101-MAZ-1150

$8.77

27

JET, MAIN (#115) This part replaces 99101-393-1150.

99101-MAZ-1150

$8.77

28

JET, SLOW (#40)

99103-MT2-0400

$12.25
