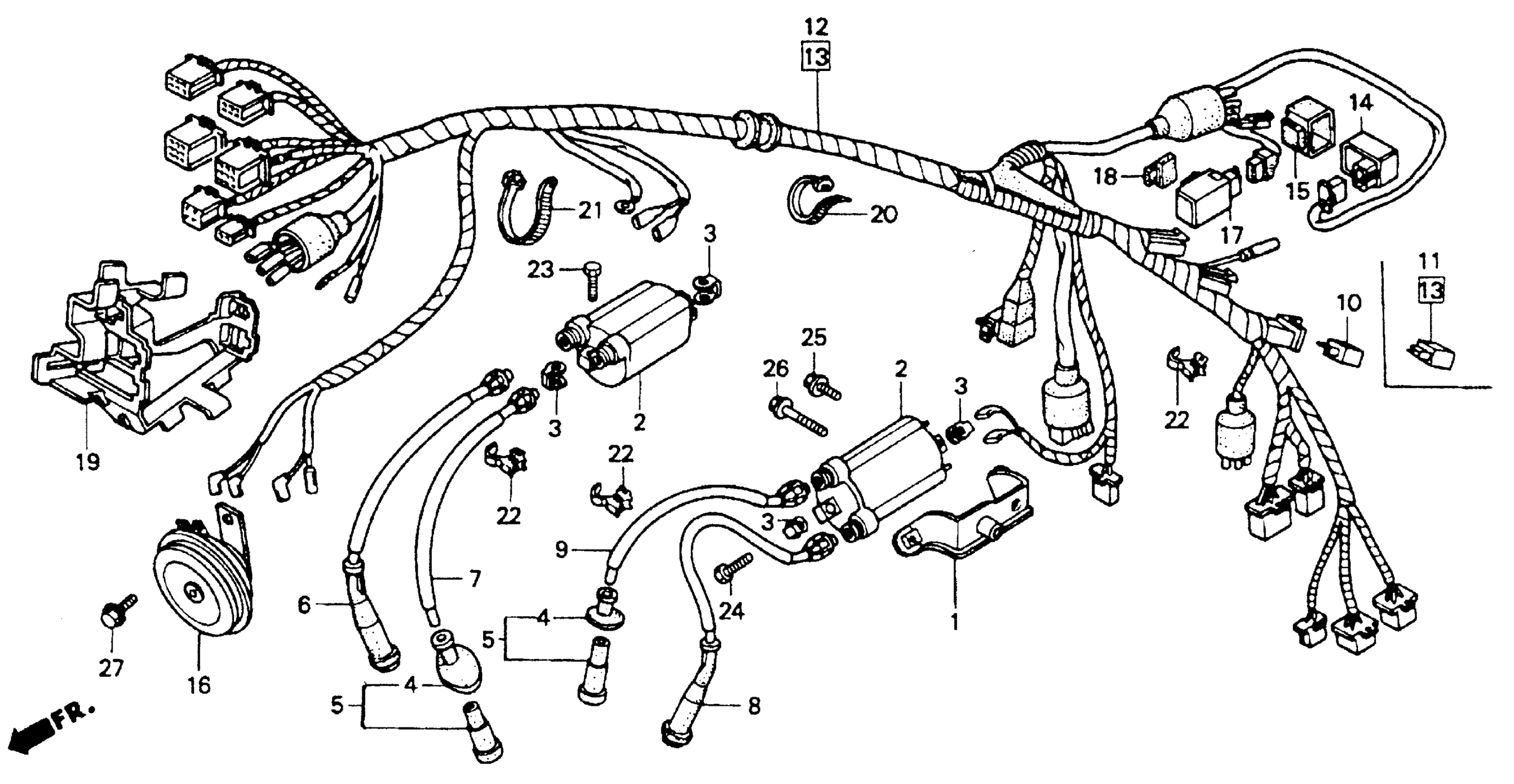

Honda VT600CA (93) SHADOW VLX, JPN, VIN# JH2PC210-PM400001 WIRE HARNESS Diagram

#

Description
Price

1

STAY, RR. IGNITION COIL

30507-MR1-000

Unavailable

2

COIL, IGNITION (TEC)

30510-MM8-003

$100.62

3

SPACER, IGNITION COIL

30520-ML7-000

$3.52

4

SEAL, PLUG CAP

30605-MF5-000

$18.35

5

CAP ASSY., NOISE SUPPRESSOR

30701-MF5-000

$30.86

6

CAP ASSY. 1, IGNITION

30751-MR1-000

$40.80

7

WIRE 2, IGNITION

30752-MR1-000

$25.14

8

CAP ASSY. 3, IGNITION

30753-MR1-000

$40.80

9

WIRE 4, IGNITION

30754-MR1-000

$22.26

11

RECTIFIER, SILICON

31700-196-000

$23.71

13

WIRE HARNESS (NOT AVAILABLE)

32100-MY0-770

Unavailable

14

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$85.69

15

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.08

16

HORN (HIGH) This part replaces 38110-GC5-620.

38110-KV0-008

Unavailable

16

HORN (HIGH) This part replaces 38110-KE8-700.

38110-KV0-008

Unavailable

16

HORN (HIGH)

38110-KV0-008

Unavailable

17

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$93.83

18

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.26

19

HOLDER, L. FR. CONNECTOR

50352-MR1-000

Unavailable

22

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

23

BOLT, HEX. (6X20)

92101-06020-4J

$1.26

24

BOLT, HEX. (6X20)

92101-06020-4J

$1.26

25

BOLT, FLANGE (6X10)

95701-06010-08

$1.46

26

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

27

BOLT, FLANGE (8X12)

95701-08012-00

$1.03
