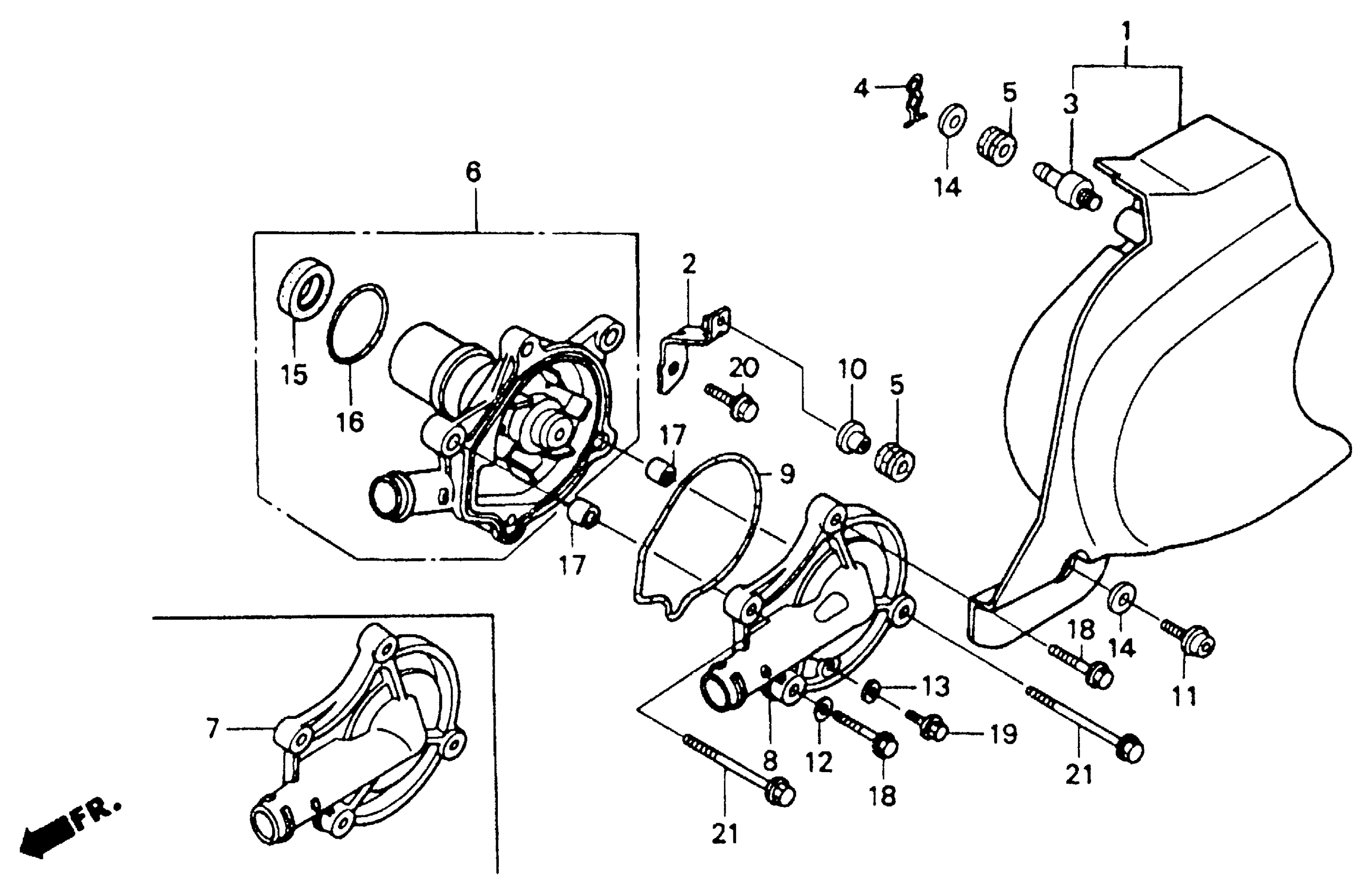

Honda VT600CA (93) SHADOW VLX, JPN, VIN# JH2PC210-PM400001 WATER PUMP Diagram

#

Description
Price

1

COVER, L. RR.

11351-MR1-000

Unavailable

2

STAY C, L. RR. COVER

11354-MR1-000

Unavailable

3

SHAFT, L. RR. CRANKCASE COVER

11355-MR1-300

Unavailable

4

CLIP, L. RR. CRANKCASE COVER

11356-MR1-000

Unavailable

5

RUBBER, CUSHION

17622-GB7-900

$4.78

6

WATER PUMP This part replaces 19200-MN8-010.

19200-MN8-020

$308.48

6

WATER PUMP

19200-MN8-020

$308.48

7

COVER, WATER PUMP | Use up to Engine SN 2503122 This part replaces 19221-MR1-000.

19221-MR1-505

Unavailable

8

COVER, WATER PUMP (SOURCE: VINTAGE PARTS INC.) | Use from Engine SN 2503123

19221-MR1-010

Unavailable

9

GASKET, WATER PUMP COVER

19226-MM9-000

$4.49

10

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

11

BOLT, FLANGE SOCKET (6X25)

90080-MG8-000

$3.89

12

WASHER (11MM)

90425-300-000

$2.66

12

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

14

WASHER, PLAIN (9MM)

90503-SA0-000

$4.93

15

OIL SEAL (12X28X7) (ARAI)

91201-MF2-003

$5.44

16

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

17

PIN, DOWEL (8X14)

94301-08140

$2.25

18

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

20

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

21

BOLT, FLANGE (6X45)

95701-06045-07

$2.06
