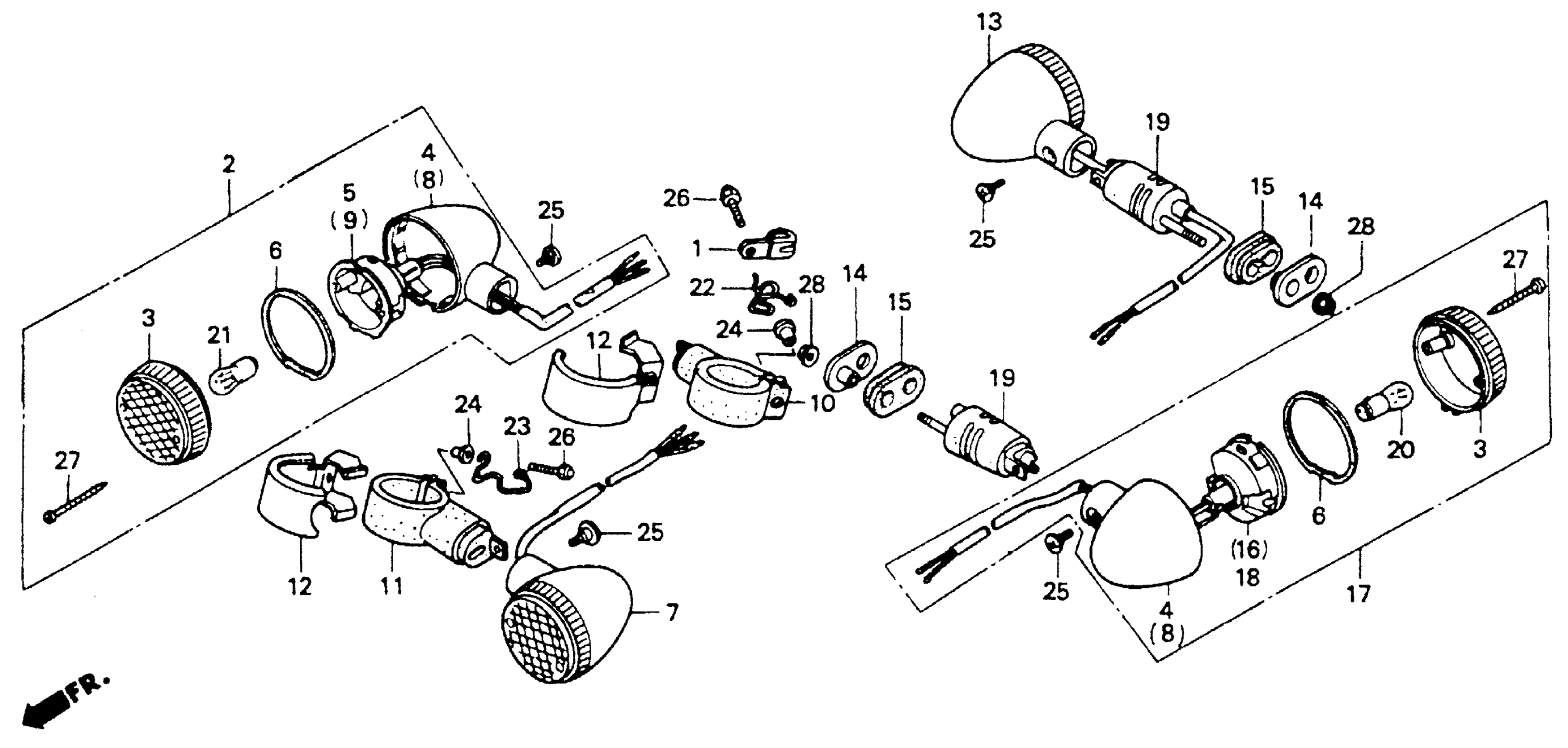

Honda VT600CA (93) SHADOW VLX, JPN, VIN# JH2PC210-PM400001 TURN SIGNAL Diagram

TURN SIGNAL ASSY., R. FR. (12V 23/8W) This part replaces 33400-MR1-000.

33400-MK7-P00

Unavailable

LENS, FR. TURN SIGNAL

33401-MK7-672

$13.43

BASE, R. FR. TURN SIGNAL (NOT AVAILABLE)

33402-MK7-671

Unavailable

REFLECTOR, R. FR. TURN SIGNAL (SOURCE: VINTAGE PARTS INC.)

33405-MR1-000

Unavailable

GASKET, TURN SIGNAL LENS

33407-MK7-671

$4.67

TURN SIGNAL ASSY., L. FR. (12V 32/3CP)

33450-MR1-000

Unavailable

BASE, L. FR. TURN SIGNAL (NOT AVAILABLE)

33452-MK7-671

Unavailable

REFLECTOR, L. FR. TURN SIGNAL (NOT AVAILABLE)

33455-MR1-000

Unavailable

STAY, R. FR. TURN SIGNAL

33490-MN0-003

Unavailable

STAY, L. FR. TURN SIGNAL

33491-MN0-003

Unavailable

TURN SIGNAL ASSY., R. RR. (12V 32CP) (NOT AVAILABLE)

33600-MR1-000

Unavailable

WASHER, TURN SIGNAL MOUNTING

33602-MM8-000

$11.98

RUBBER, RR. TURN SIGNAL MOUNTING

33603-MM8-000

$9.48

REFLECTOR, R. RR. TURN SIGNAL (SOURCE: VINTAGE PARTS INC.)

33605-MR1-000

Unavailable

TURN SIGNAL ASSY., L. RR. (12V 23W)

33650-MR1-000

Unavailable

REFLECTOR, L. RR. TURN SIGNAL (SOURCE: VINTAGE PARTS INC.)

33655-MR1-000

Unavailable

STAY, RR. TURN SIGNAL

33690-MM8-000

$49.77

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

BULB (12V 23/8W) (STANLEY)

34905-425-671

$6.67

GUIDE, R. HARNESS (NOT AVAILABLE)

61315-MN0-000

Unavailable

GUIDE, L. HARNESS (NOT AVAILABLE)

61316-MN0-000

Unavailable

COLLAR, COVER MOUNTING

83505-MN0-000

$6.61

SCREW, SPECIAL (6X8)

90380-MB1-000

$4.96

BOLT, CAP (6X25)

92501-06025-0G

$2.92

SCREW, TAPPING (4X25)

93901-34610

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49
