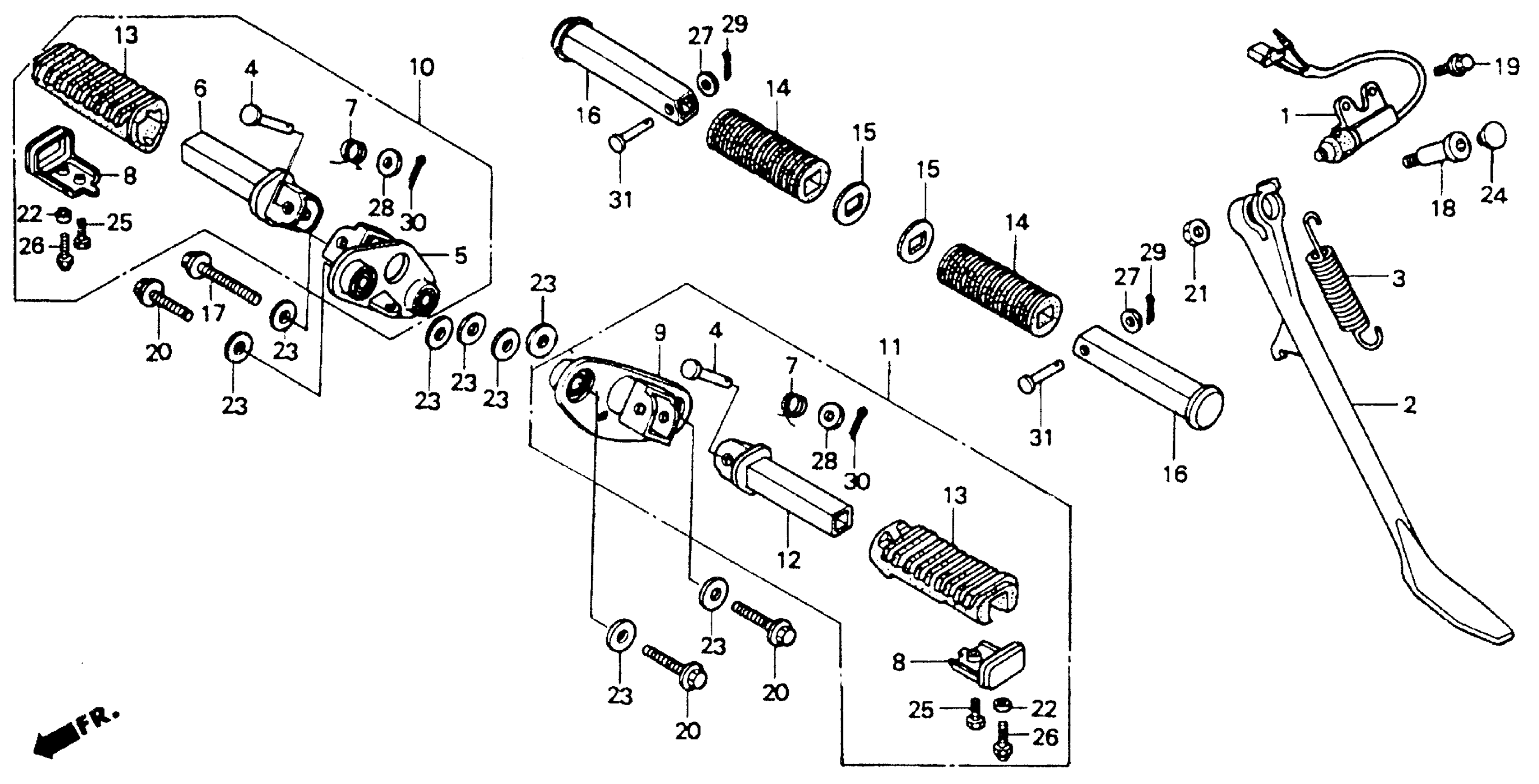

Honda VT600CA (93) SHADOW VLX, JPN, VIN# JH2PC210-PM400001 STEP Diagram

#

Description
Price

1

SWITCH ASSY., SIDE STAND (TOYO) (NOT AVAILABLE)

35710-MR1-003

Unavailable

2

BAR, SIDE STAND (NOT AVAILABLE)

50530-MR1-610

Unavailable

3

SPRING, SIDE STAND

50541-MK3-000

$8.57

4

PIN, STEP BAR JOINT

50603-033-010

$3.30

5

BRACKET, R. MAIN STEP (NOT AVAILABLE)

50610-MR1-000

Unavailable

6

BAR, R. STEP

50612-MR1-000

$31.36

7

SPRING, STEP RETURN

50617-MB1-700

$5.80

8

STOPPER, STEP RUBBER

50619-MN0-000

$17.37

9

BRACKET, L. MAIN STEP (NOT AVAILABLE)

50620-MR1-000

Unavailable

10

STEP ASSY., R. MAIN (NOT AVAILABLE)

50630-MR1-000

Unavailable

11

STEP ASSY., L. MAIN (NOT AVAILABLE)

50640-MR1-000

Unavailable

12

BAR, L. STEP

50642-MR1-000

$31.36

13

RUBBER, MAIN STEP

50661-MN0-000

$11.86

14

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

14

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

15

WASHER, PILLION STEP

50712-413-000

$3.47

16

BAR, PILLION STEP (COO) This part replaces 50715-MN0-000.

50715-MFR-305

$22.52

17

BOLT, FLANGE (10X75)

90102-MN0-000

$15.18

18

BOLT, SIDE STAND PIVOT (SOURCE: VINTAGE PARTS INC.)

90108-MR1-610

Unavailable

19

BOLT, FLANGE (6X16)

90111-MR1-000

$3.41

20

BOLT, SPECIAL FLANGE (10X40)

90101-MAA-000

$11.41

20

BOLT, SPECIAL FLANGE (10X40) This part replaces 90124-KR3-000.

90101-MAA-000

$11.41

21

NUT, SIDE STAND (NOT AVAILABLE)

90203-MJ4-000

Unavailable

22

COLLAR (6MM)

90311-GF0-810

$3.30

23

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

24

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

25

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

26

BOLT, CAP (6X16) This part replaces 92500-06016-0A.

92501-06016-0A

$2.91

26

BOLT, CAP (6X16)

92501-06016-0A

$2.91

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

PIN, SPLIT (1.6X10)

94201-16100

$1.49

30

PIN, SPLIT (2.0X15)

94201-20150

$1.49

31

PIN A, PILLION STEP

95015-81000

$2.21
