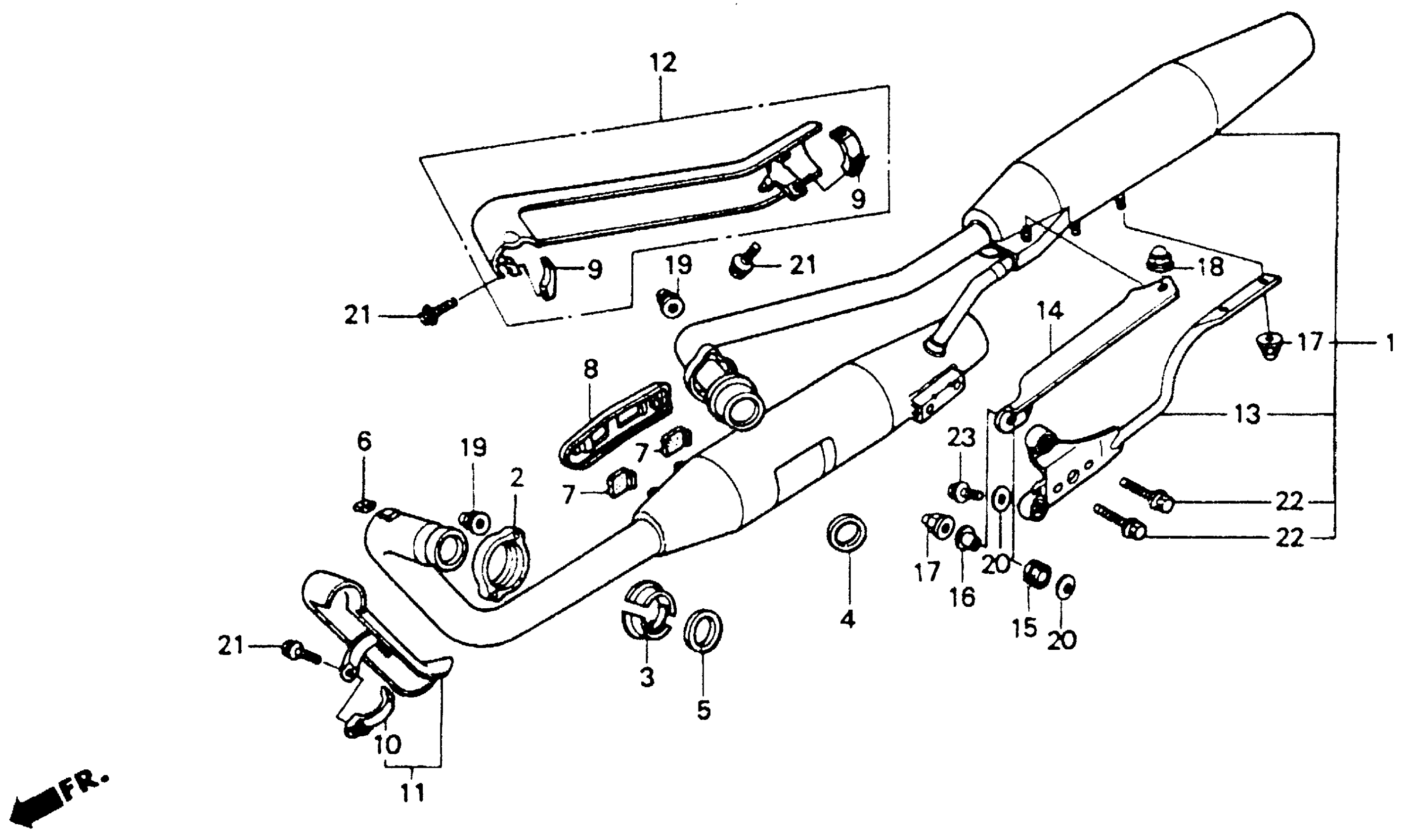

Honda VT600CA (93) SHADOW VLX, JPN, VIN# JH2PC210-PM400001 EXHAUST MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSY., EX. (NOT AVAILABLE) This part replaces 18100-MR1-671.

18100-MZ8-B01

Unavailable

2

JOINT, FR. EX. PIPE

18231-MR1-000

Unavailable

3

COLLAR, EX. PIPE JOINT This part replaces 18233-MR1-000.

18233-MR1-010

$9.73

3

COLLAR, EX. PIPE JOINT

18233-MR1-010

$9.73

4

GASKET, EX. PIPE

18291-MN4-920

$5.07

5

GASKET, EX. PIPE

18291-MM5-860

$4.93

6

RUBBER, PROTECTOR GASKET

18293-ME9-000

$2.79

7

RUBBER, PROTECTOR

18293-MN0-000

$1.97

8

COVER, MUFFLER

18315-MR1-000

$34.37

9

BAND, EX. PIPE COVER

18376-MR1-000

$8.61

10

BAND, FR. COVER

18377-MR1-000

$9.16

11

COVER, FR. EX. PIPE

18415-MR1-003

$70.00

12

COVER, RR. EX. PIPE

18418-MR1-003

$140.91

13

BRACKET, MUFFLER This part replaces 18455-MR1-003.

18455-MZ8-B00

Unavailable

13

BRACKET, MUFFLER

18455-MZ8-B00

Unavailable

14

BRACKET, MUFFLER (UPPER)

18456-MR1-003

Unavailable

15

GROMMET, RESERVE TANK

19111-MF5-000

$2.79

16

COLLAR (8MM)

18422-MR1-000

$5.19

17

NUT, FLANGE CAP (8MM)

90161-MM8-000

$2.80

18

NUT, CAP (8MM)

90208-438-000

$3.41

19

NUT, CAP (8MM)

90304-ME1-670

$5.68

20

WASHER, PLAIN (8MM)

94103-08700

$0.87

21

BOLT, FLANGE (6X20)

95701-06020-00

$1.63

22

BOLT, FLANGE (8X16)

95701-08016-00

$1.66

23

BOLT, FLANGE (8X32)

95701-08032-07

$2.93
