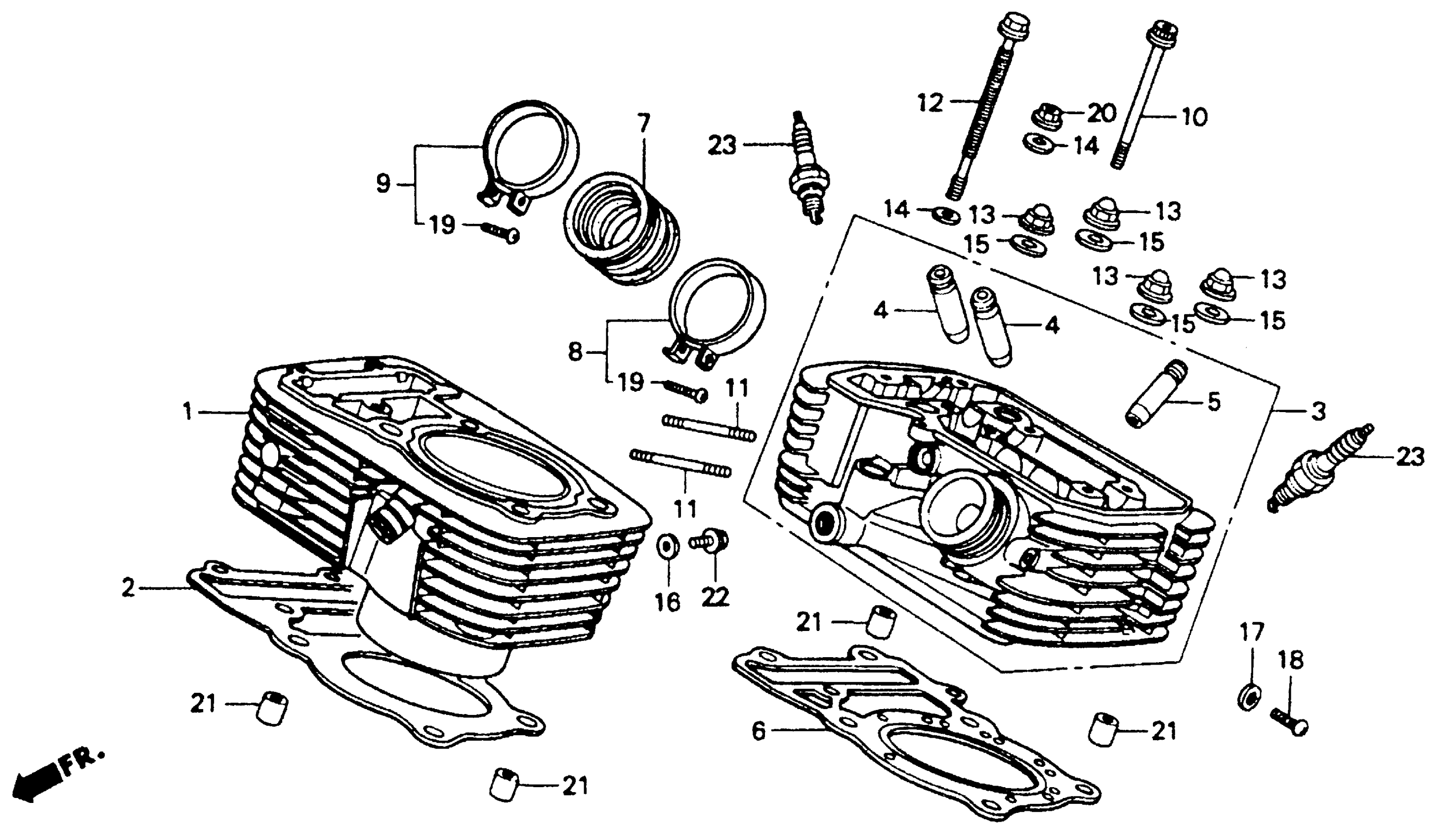

Honda VT600CA (93) SHADOW VLX, JPN, VIN# JH2PC210-PM400001 CYLINDER (RR.) Diagram

CYLINDER, RR.

12110-MR1-830

Unavailable

GASKET, CYLINDER

12191-MV1-004

$17.52

CYLINDER HEAD, RR. (NOT AVAILABLE) | Use up to Engine SN 2504236

12220-MR1-830

Unavailable

CYLINDER HEAD, RR. (SOURCE: VINTAGE PARTS INC.) | Use from Engine SN 2504237

12220-MR1-831

Unavailable

GUIDE, IN. VALVE (OVER SIZE)

12231-MF5-305

$22.36

GUIDE, EX. VALVE (OVER SIZE)

12241-MF5-315

$20.56

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

12251-MR1-831

$42.15

INSULATOR, CARBURETOR

16211-MAW-600

$26.57

INSULATOR, CARBURETOR This part replaces 16211-MS8-000.

16211-MAW-600

$26.57

BAND A, INSULATOR

16218-MN8-750

$9.68

BAND A, INSULATOR

16218-MN8-750

$9.68

BOLT, SOCKET (6X70) (NOT AVAILABLE) This part replaces 90094-MK4-600.

90012-KN8-730

Unavailable

BOLT, STUD (8X35)

90015-MR1-000

$5.48

BOLT, CYLINDER (8X187) This part replaces 90081-MM9-003.

90081-MZ8-H01

$10.31

BOLT, CYLINDER (8X187)

90081-MZ8-H01

$10.31

NUT, FLANGE CAP (10MM)

90202-329-000

$3.67

WASHER (8MM) This part replaces 90401-MR1-000.

90401-MZ8-H00

$2.51

WASHER (8MM)

90401-MZ8-H00

$2.51

WASHER (10MM)

90410-HC4-000

$3.81

WASHER, SEALING

90441-MR1-770

$2.92

WASHER, SEALING (5MM)

90452-323-000

$1.59

SCREW, PAN (5X8)

93500-05008-0A

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

PIN, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
