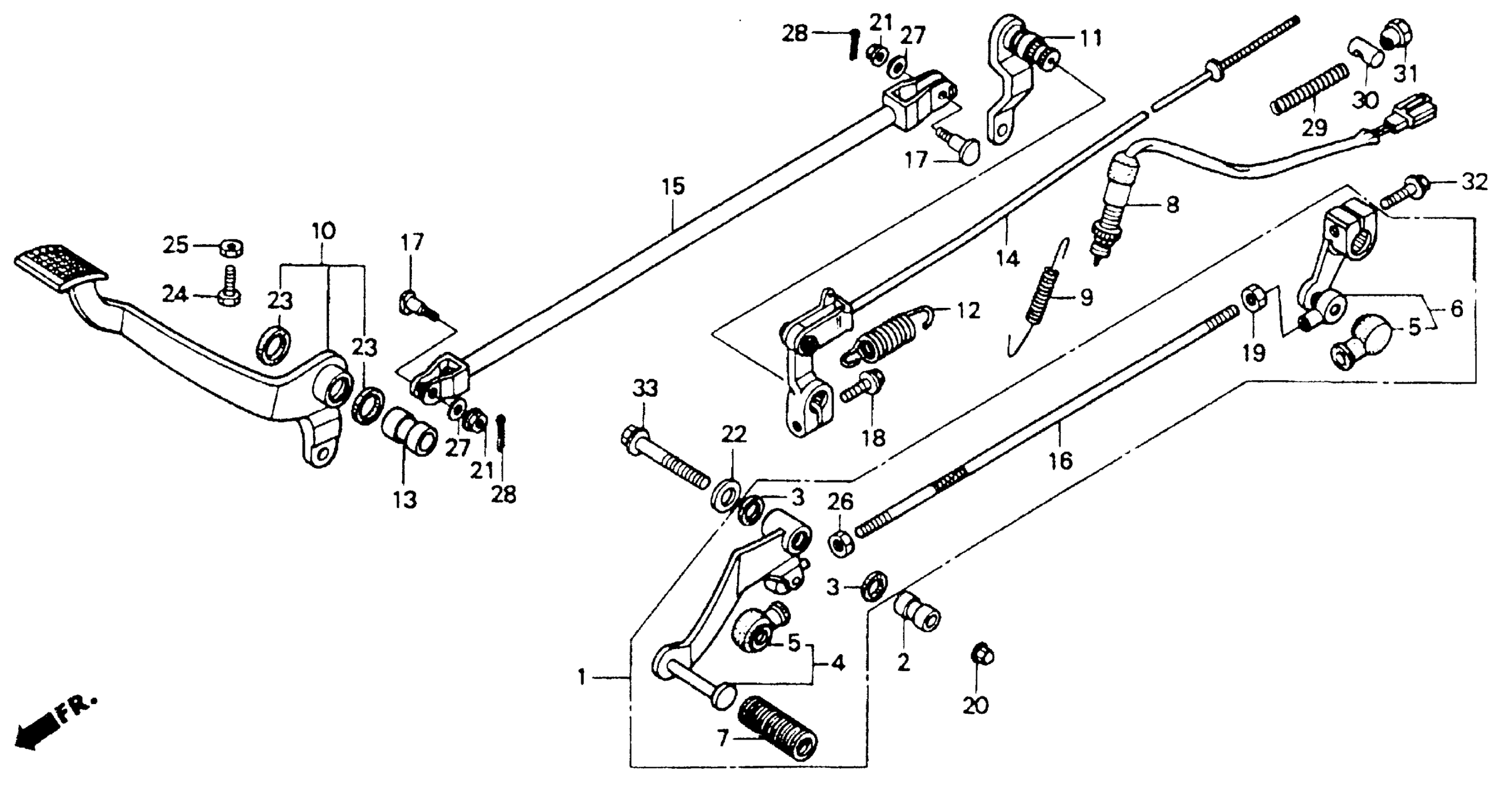

Honda VT600CA (89) SHADOW VLX, JPN, VIN# JH2PC210-KM100001 TO JH2PC210-KM102552 PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., CHANGE (N/A-USE COMPONENTS)

24700-MR1-000

Unavailable

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$9.59

3

RUBBER, DUST SEAL

24706-MK3-770

$4.16

4

PEDAL, GEARSHIFT This part replaces 24715-MBS-000.

24715-MZ8-R50

$62.54

4

PEDAL, GEARSHIFT This part replaces 24715-MR1-000.

24715-MZ8-R50

$62.54

4

PEDAL, GEARSHIFT

24715-MZ8-R50

$62.54

5

COVER, DUST

24724-422-000

$6.21

6

ARM, GEARSHIFT

24725-MR1-000

Unavailable

7

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.15

8

SWITCH ASSY., RR. STOP This part replaces 35350-GM2-010.

35350-MK3-405

Unavailable

8

SWITCH ASSY., RR. STOP

35350-MK3-405

Unavailable

9

SPRING, STOP SWITCH

35357-KE1-000

$5.73

10

PEDAL, RR. BRAKE

46500-MR1-000

$111.28

11

ARM, RR. BRAKE MIDDLE (NOT AVAILABLE) This part replaces 46510-MR1-000.

46510-KW9-690

Unavailable

12

SPRING, BRAKE RETURN

46514-MR1-770

Unavailable

13

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$10.53

14

ROD, RR. BRAKE

46525-MR1-010

Unavailable

15

ROD, RR. BRAKE MIDDLE (NOT AVAILABLE)

46540-MR1-000

Unavailable

16

BOLT, TIE ROD

90065-MR1-003

Unavailable

17

BOLT, MIDDLE ROD JOINT

90104-MR1-000

Unavailable

18

BOLT, SOCKET (8X28)

90154-MJ0-000

Unavailable

19

NUT, HEX. (8MM)

90201-MR1-000

Unavailable

20

NUT, CAP (8MM)

90208-438-000

$2.80

21

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.79

22

WASHER (8MM)

90514-921-000

$0.99

23

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.44

23

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

24

BOLT, HEX. (6X16)

92101-06016-0B

$1.17

25

NUT, HEX. (6MM)

94002-06020-0S

$1.00

26

NUT, HEX. (8MM)

94002-08020-0S

$1.13

27

WASHER (6MM)

90502-HB3-000

$3.10

28

PIN, SPLIT (2.0) (NOT AVAILABLE)

94201-20100

Unavailable

29

SPRING A, BRAKE ROD

95014-73100

$1.17

30

JOINT B, BRAKE ARM

95015-32001

$0.86

31

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

32

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

32

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

33

BOLT, FLANGE (8X45)

95701-08045-00

$1.33
