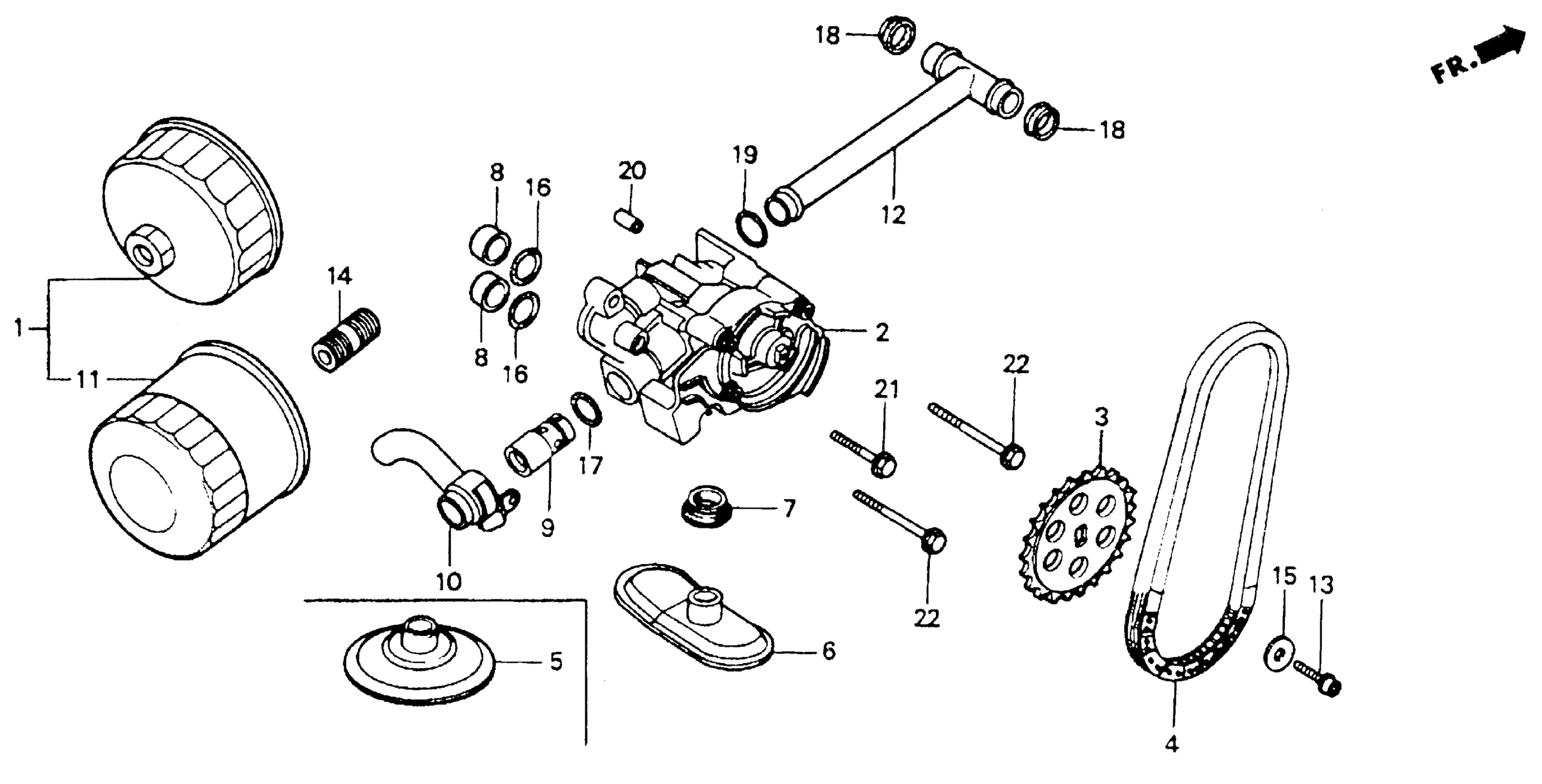

Honda VT600CA (89) SHADOW VLX, JPN, VIN# JH2PC210-KM100001 TO JH2PC210-KM102552 OIL PUMP Diagram

#

Description
Price

2

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MR1-000

Unavailable

3

SPROCKET, OIL PUMP DRIVEN (27T)

15134-MR1-000

$40.19

4

CHAIN, OIL PUMP DRIVE (70L) (BORG WARNER)

15136-MR1-003

$109.04

5

STRAINER, OIL (NOT AVAILABLE)

15153-MR1-000

Unavailable

7

GASKET, OIL STRAINER

15154-425-000

$7.63

8

COLLAR, O-RING

15155-300-000

$3.31

9

VALVE ASSY., RELIEF

15220-MB0-010

$40.74

10

PIPE, OIL RELIEF

15240-MM9-000

$23.40

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-003.

15410-MFJ-D02

$14.16

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$14.16

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$14.16

12

PIPE, OIL (NOT AVAILABLE)

15511-MF5-000

Unavailable

13

BOLT, FLANGE SOCKET (6X14) This part replaces 90009-ME5-000.

90009-MZ8-H00

Unavailable

13

BOLT, FLANGE SOCKET (6X14)

90009-MZ8-H00

Unavailable

14

BOSS, OIL FILTER

90019-MB0-000

$7.93

15

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.15

16

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.63

17

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.52

17

O-RING (14.8X2.2)

91313-MG7-004

$3.52

18

OIL SEAL, PIPE

91315-MF5-003

$3.82

19

O-RING (13X2.5)

91319-300-000

$4.84

20

PIN, DOWEL (8X14)

94301-08140

$2.76

21

BOLT, FLANGE (6X28)

95701-06028-00

$1.81

22

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.75

22

BOLT, FLANGE (6X45)

95701-06045-07

$2.75
