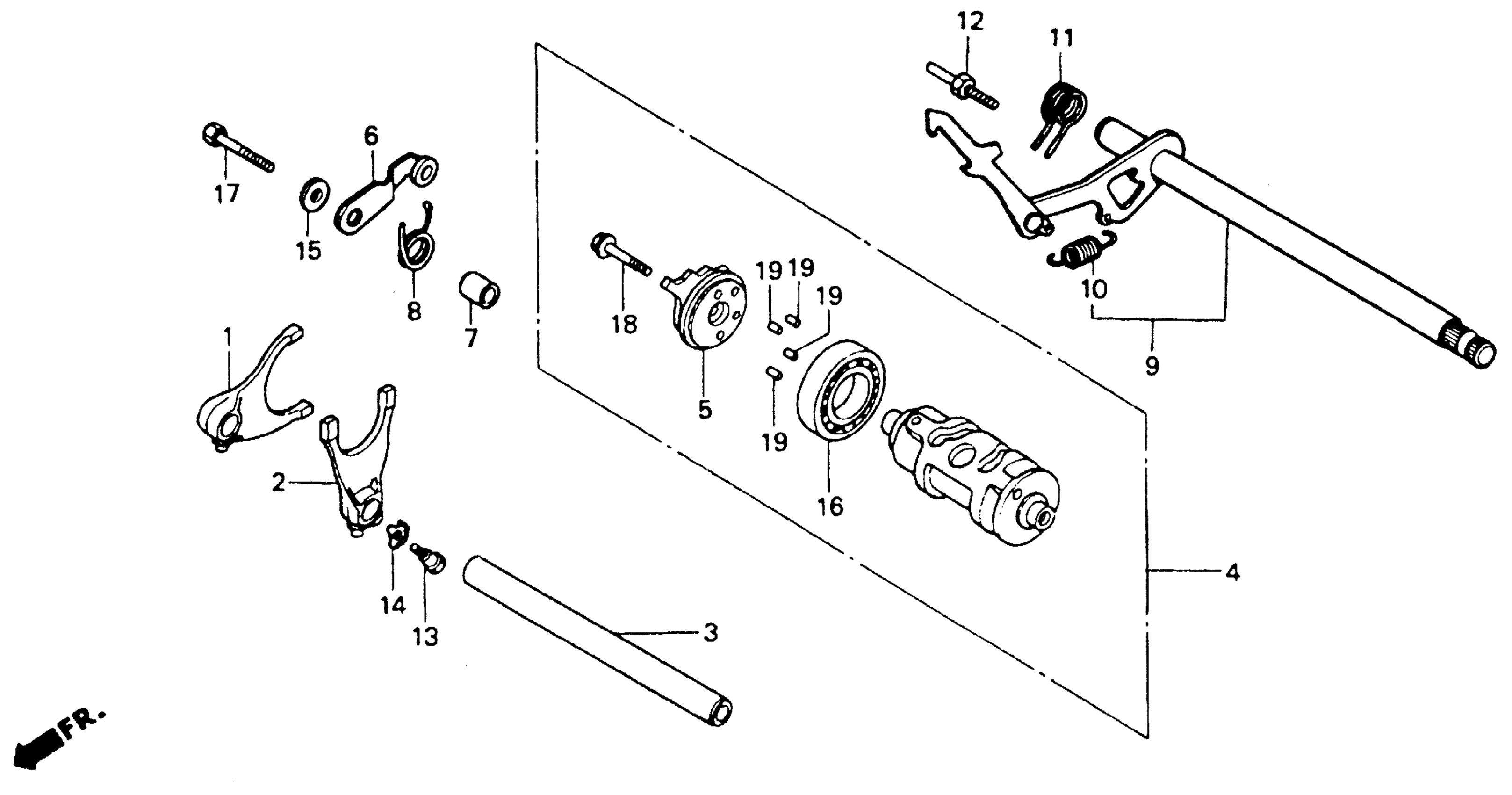

Honda VT600CA (89) SHADOW VLX, JPN, VIN# JH2PC210-KM100001 TO JH2PC210-KM102552 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-MS9-000

Unavailable

FORK, CENTER GEARSHIFT (NOT AVAILABLE) This part replaces 24212-MR1-000.

24212-MS9-750

Unavailable

SHAFT, SHIFT FORK GUIDE (NOT AVAILABLE)

24241-MR1-000

Unavailable

DRUM, GEARSHIFT (NOT AVAILABLE) This part replaces 24300-MR1-000.

24300-MR1-010

Unavailable

PLATE, CAM

24301-MR1-300

Unavailable

STOPPER, GEARSHIFT DRUM

24430-MF5-000

$23.05

COLLAR, GEARSHIFT DRUM STOPPER

24432-413-000

$7.99

SPRING, SHIFT DRUM STOPPER

24435-MM9-000

$4.31

ARM, GEARSHIFT (SOURCE: VINTAGE PARTS INC.)

24610-MR1-000

Unavailable

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

SPRING, GEARSHIFT RETURN This part replaces 24651-MB0-000.

24651-MB0-010

$7.46

SPRING, GEARSHIFT RETURN

24651-MB0-010

$7.46

PIN, SHIFT RETURN SPRING

24652-259-000

$4.97

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

WASHER, LOCK

90407-MB0-000

$2.66

WASHER (6X2.3)

90488-MB0-000

$4.37

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

ROLLER (4X11.8)

96220-40118

$1.49
