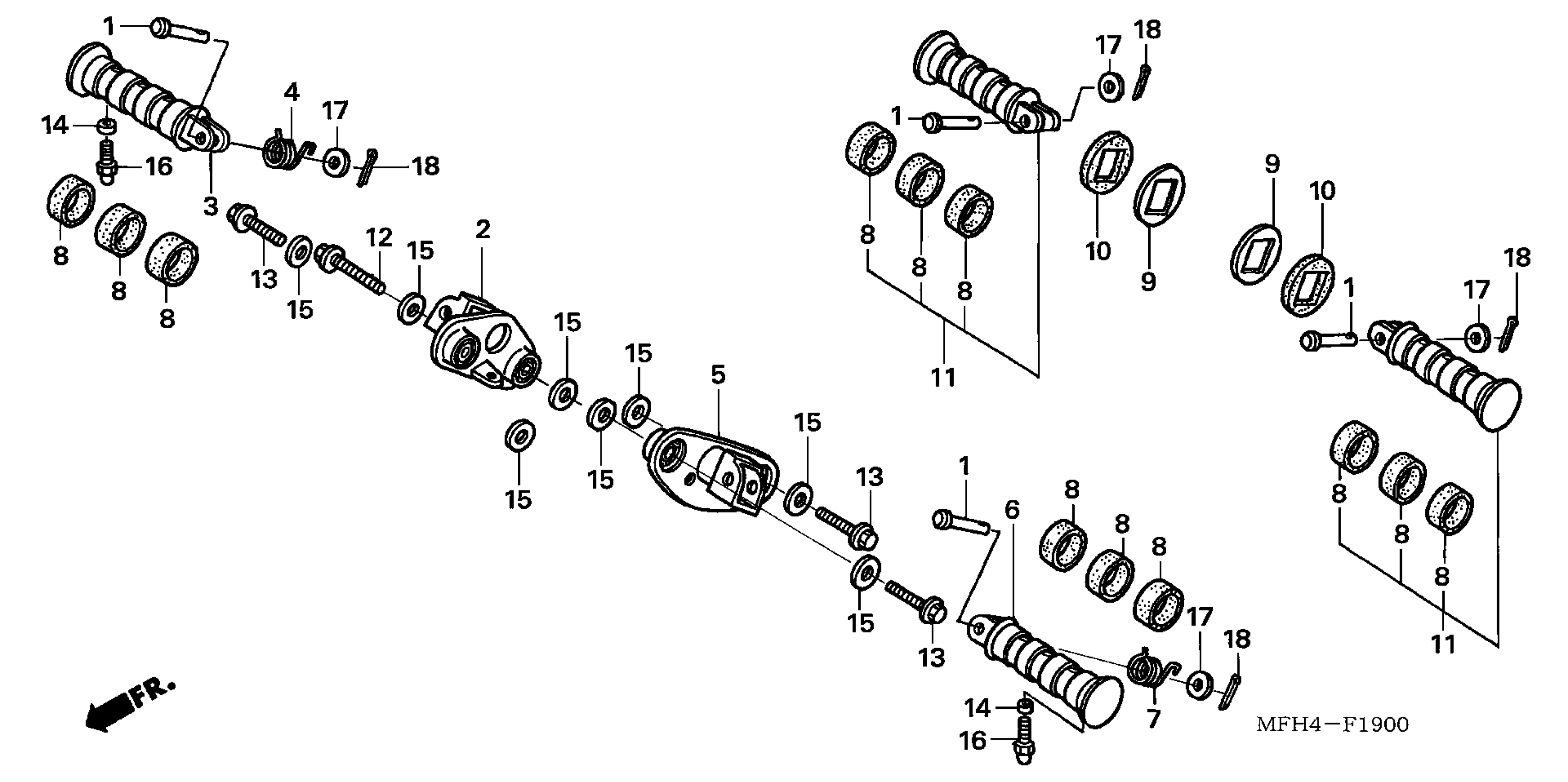

Honda VT600CA (07) SHADOW VLX, JPN, VIN# JH2PC210-7M800001 TO JH2PC210-7M809999 STEP Diagram

PIN, STEP BAR JOINT

50603-033-010

$3.30

BRACKET, R. MAIN STEP

50610-MZ8-K00

Unavailable

BAR, R. STEP

50612-MBA-020

$24.91

SPRING, R. STEP RETURN

50617-MZ8-K00

$5.38

BRACKET, L. MAIN STEP

50620-MZ8-K00

Unavailable

BAR, L. STEP

50642-MBA-020

$24.06

SPRING, L. STEP RETURN

50644-MZ8-K00

$5.38

RUBBER, MAIN STEP

50661-MBA-010

$2.92

WASHER, PILLION STEP

50712-MBA-000

$5.40

RUBBER, PILLION STEP

50713-MBA-000

$3.47

STEP ASSY., PILLION

50715-MBA-020

$32.80

BOLT, FLANGE (10X75)

90102-MN0-000

$15.18

BOLT, SPECIAL FLANGE (10X40) This part replaces 90124-KR3-000.

90101-MAA-000

$11.41

COLLAR (6MM)

90311-GF0-810

$3.30

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

BOLT, CAP (6X16)

92501-06016-0A

$2.91

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49
