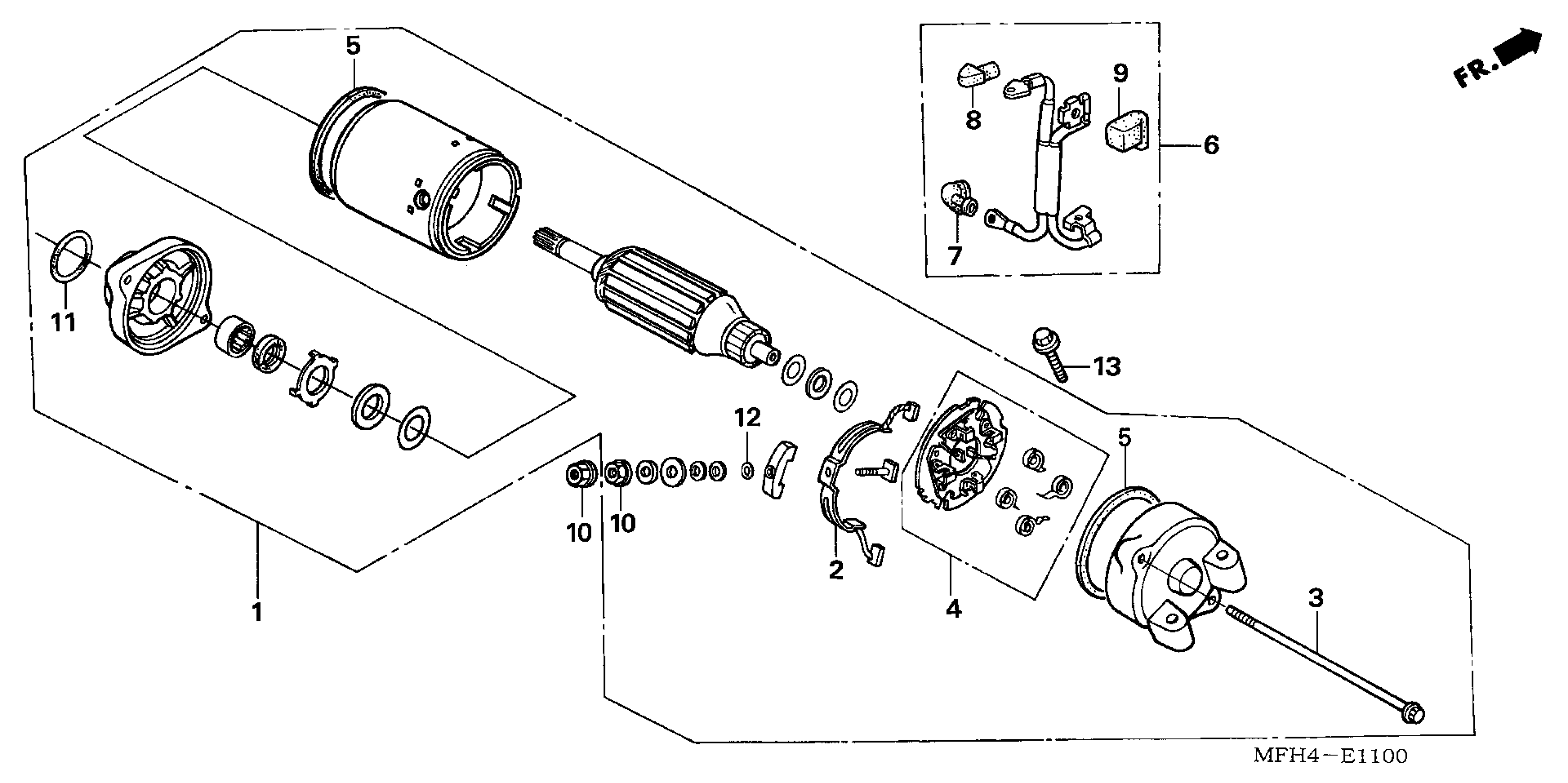

Honda VT600CA (07) SHADOW VLX, JPN, VIN# JH2PC210-7M800001 TO JH2PC210-7M809999 STARTING MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-MR1-831

Unavailable

TERMINAL SET, BRUSH

31201-MR6-008

$23.39

BOLT, SETTING

31205-MR1-008

$5.26

HOLDER SET, BRUSH

31206-MR6-008

$24.58

RING

31207-KS5-901

$3.12

CABLE SET, STARTER MOTOR & BATTERY GROUND

32411-MBS-840

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER B, STARTER MAGNETIC

32416-MR1-000

$4.87

COVER, BATTERY TERMINAL

32418-MR1-000

$5.31

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING

91320-MB0-000

$2.43

BOLT, FLANGE (6X32)

95801-06032-00

$1.49
