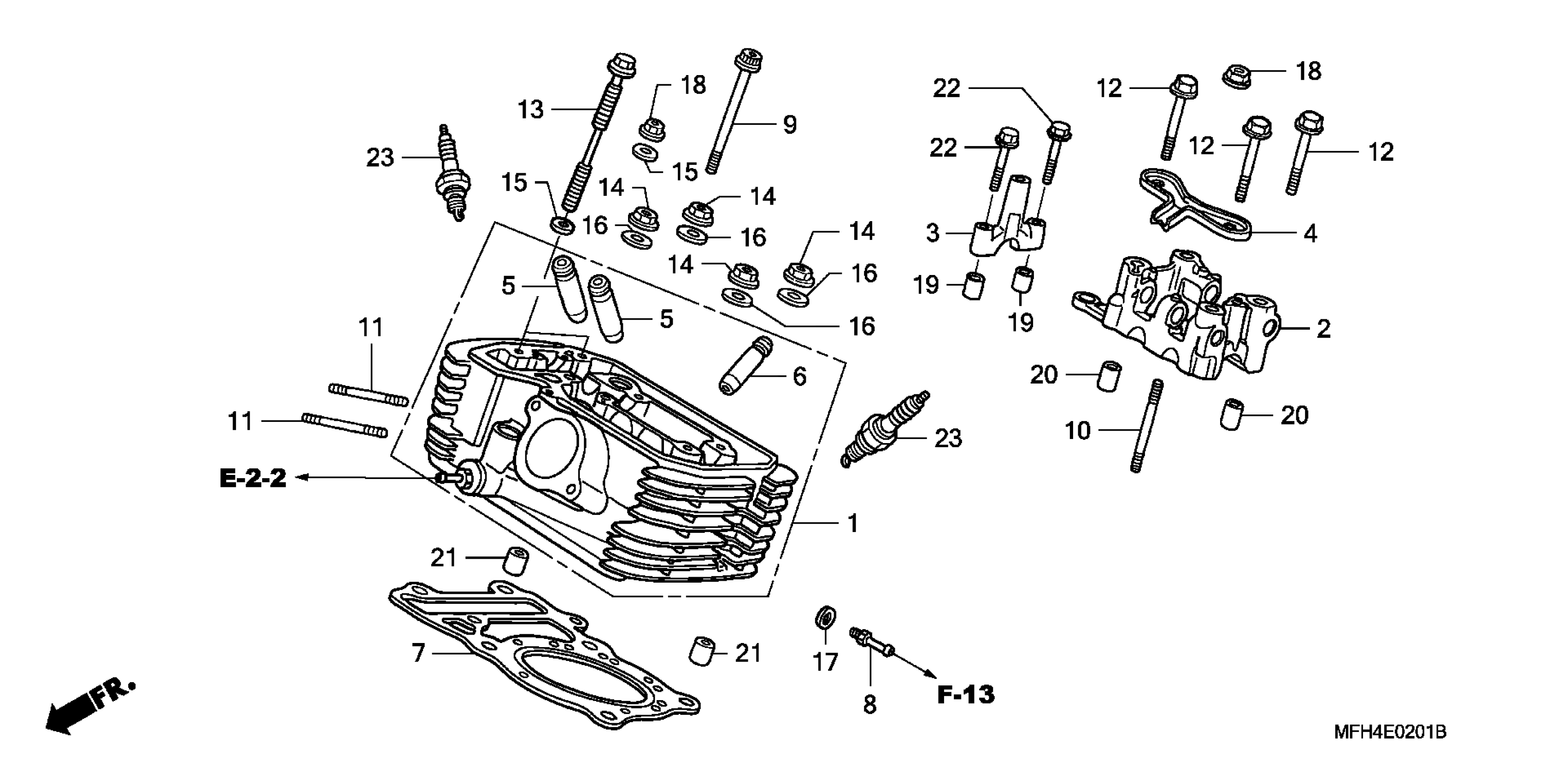

Honda VT600CA (07) SHADOW VLX, JPN, VIN# JH2PC210-7M800001 TO JH2PC210-7M809999 REAR CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD, RR.

12220-MZ8-U50

$619.52

2

HOLDER, CAMSHAFT

12223-MV1-000

Unavailable

3

HOLDER, SIDE CAMSHAFT

12225-MF5-000

$53.10

4

PLATE, VALVE OIL GUIDE

12226-MF5-000

$20.05

5

GUIDE, IN. VALVE (OVER SIZE)

12231-MF5-305

$22.36

6

GUIDE, EX. VALVE (OVER SIZE)

12241-MF5-315

$20.56

7

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

12251-MR1-831

$42.15

8

JOINT, BOOST

17113-KEA-000

$7.16

9

BOLT, FLANGE (6X70) (NSHF)

90004-GHB-770

$5.44

10

BOLT, STUD (8X50)

90013-MF5-000

$4.97

11

BOLT, STUD (8X35)

90015-MR1-000

$5.48

12

BOLT, FLANGE (8X68)

90066-MC7-000

$4.05

13

BOLT, CYLINDER (8X187)

90081-MZ8-H01

$10.31

14

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

14

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

14

NUT, FLANGE (10MM)

94050-10000

$1.59

15

WASHER (8MM)

90401-MZ8-H00

$2.51

16

WASHER (10MM)

90410-HC4-000

$3.81

17

WASHER, SEALING (5MM)

90452-323-000

$1.59

18

NUT, FLANGE (8MM)

94050-08080

$1.49

19

PIN, DOWEL (8X14)

94301-08140

$2.25

20

PIN, DOWEL (10X16)

94301-10160

$2.28

21

PIN, DOWEL (14X20)

94301-14200

$2.28

22

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

23

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

23

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

23

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

23

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

23

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

23

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
