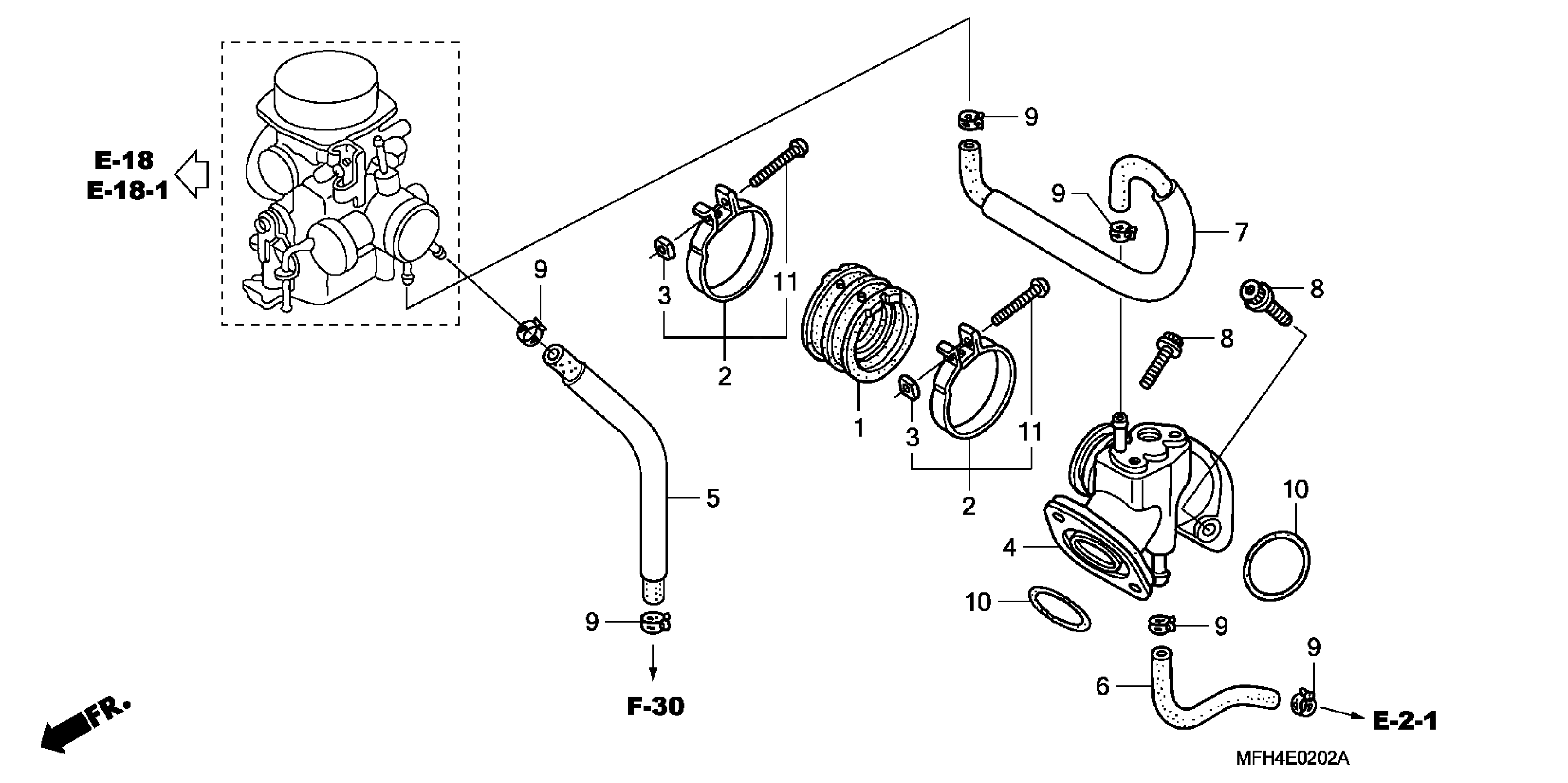

Honda VT600CA (07) SHADOW VLX, JPN, VIN# JH2PC210-7M800001 TO JH2PC210-7M809999 INTAKE MANIFOLD Diagram

#

Description
Price

1

INSULATOR, CARBURETOR

16211-MZ8-H00

$24.62

2

BAND A, INSULATOR

16217-MW0-000

$11.20

3

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

4

MANIFOLD, IN.

17110-MZ8-H00

$229.40

5

HOSE, IN. MANIFOLD

19510-MZ8-U40

$24.97

6

HOSE A, IN. MANIFOLD

19521-MZ8-H00

$8.02

7

HOSE B, IN. MANIFOLD

19522-MZ8-U40

$21.74

8

BOLT, FLANGE SOCKET (6X22)

90091-MM5-640

$3.94

9

CLAMP, TUBE (D10.3)

90601-MEA-670

$4.15

10

O-RING (39.5X2.6)

91352-MG2-792

$8.66

11

SCREW, PAN (5X32)

93500-05032-0G

$1.49
