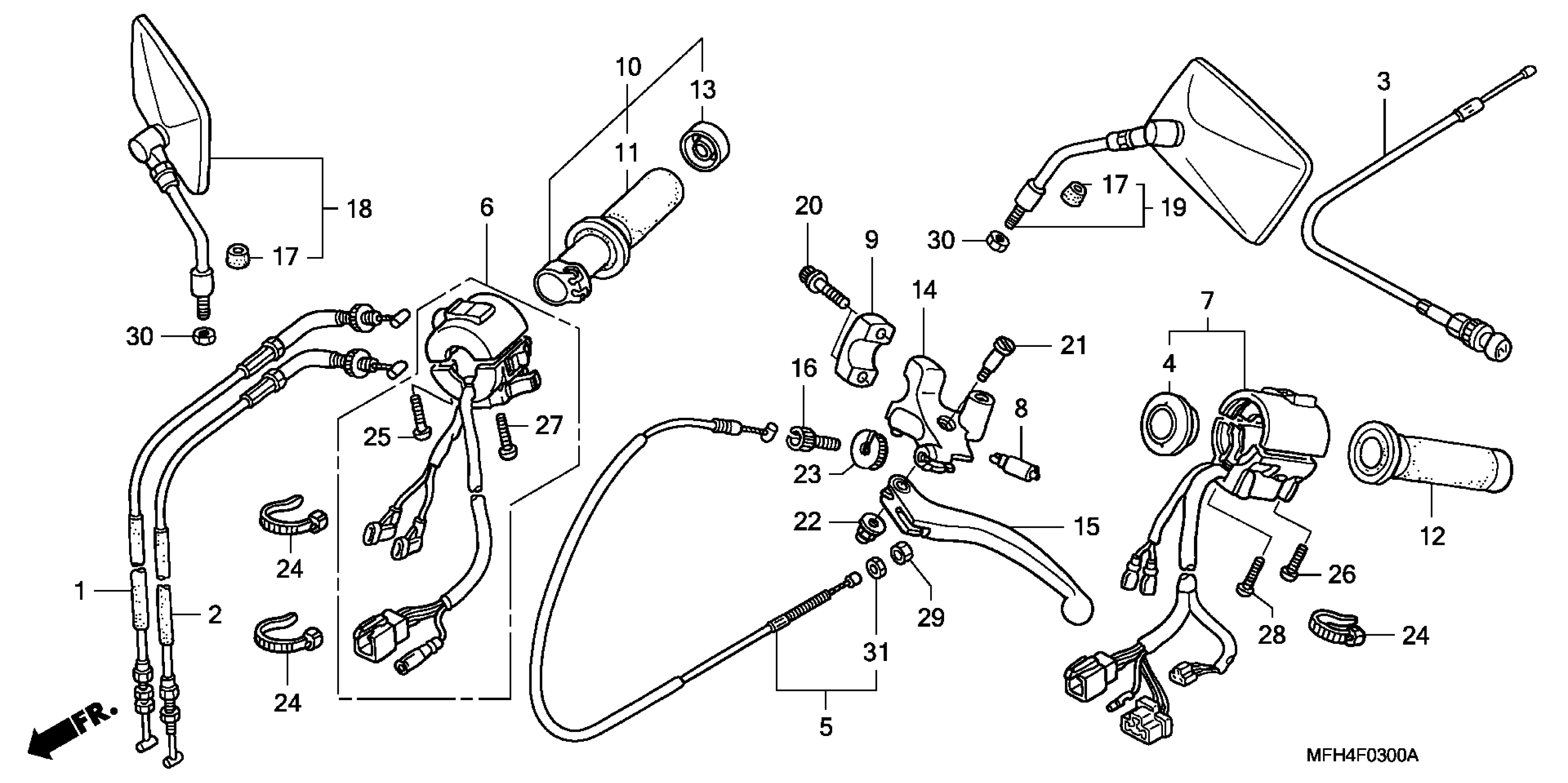

Honda VT600CA (07) SHADOW VLX, JPN, VIN# JH2PC210-7M800001 TO JH2PC210-7M809999 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MZ8-G20

$27.36

2

CABLE B, THROTTLE

17920-MZ8-G20

$30.96

3

CABLE, CHOKE

17950-MZ8-G20

$17.18

4

ADAPTER

17962-MR1-000

$17.70

5

CABLE, CLUTCH

22870-MZ8-G20

$23.91

6

SWITCH ASSY., STARTER & STOP

35013-KW9-921

$85.37

7

SWITCH ASSY., TURN SIGNAL

35200-MZ8-U40

$125.94

8

SWITCH, FR. LEVER (TOYO)

35330-413-003

$20.11

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$25.01

10

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$39.08

12

GRIP, L. HANDLE

53166-KCR-000

$32.91

13

CAP, GRIP END

53167-MM8-000

$8.63

14

BRACKET, HANDLE LEVER

53172-MR1-000

$32.76

15

LEVER, L. HANDLE

53178-KV0-000

$16.46

16

BOLT, WIRE ADJUSTING

53192-268-000

$6.23

17

COVER, LOCK NUT

88113-KN8-000

$5.38

18

MIRROR, R. BACK

88210-MZ8-A20

Unavailable

19

MIRROR, L. BACK

88220-MZ8-A20

$59.78

20

BOLT, SOCKET (6X22)

90101-MCL-000

$1.34

21

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

22

NUT, CAP (6MM)

90201-415-000

$1.99

23

NUT, FIXING

90321-MA6-750

$9.59

24

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

25

SCREW, PAN (5X20)

93500-05020-0B

$1.18

26

SCREW, PAN (5X22)

93500-05022-0B

$1.21

27

SCREW, PAN (5X25)

93500-05025-0B

$1.53

28

SCREW, PAN (5X32)

93500-05032-0B

$1.34

29

NUT, HEX. (8MM)

94002-08070-0S

$1.21

30

NUT, HEX. (10MM)

94031-10020

$0.90

31

NUT, HEX. (8MM)

94030-08070

$0.44
