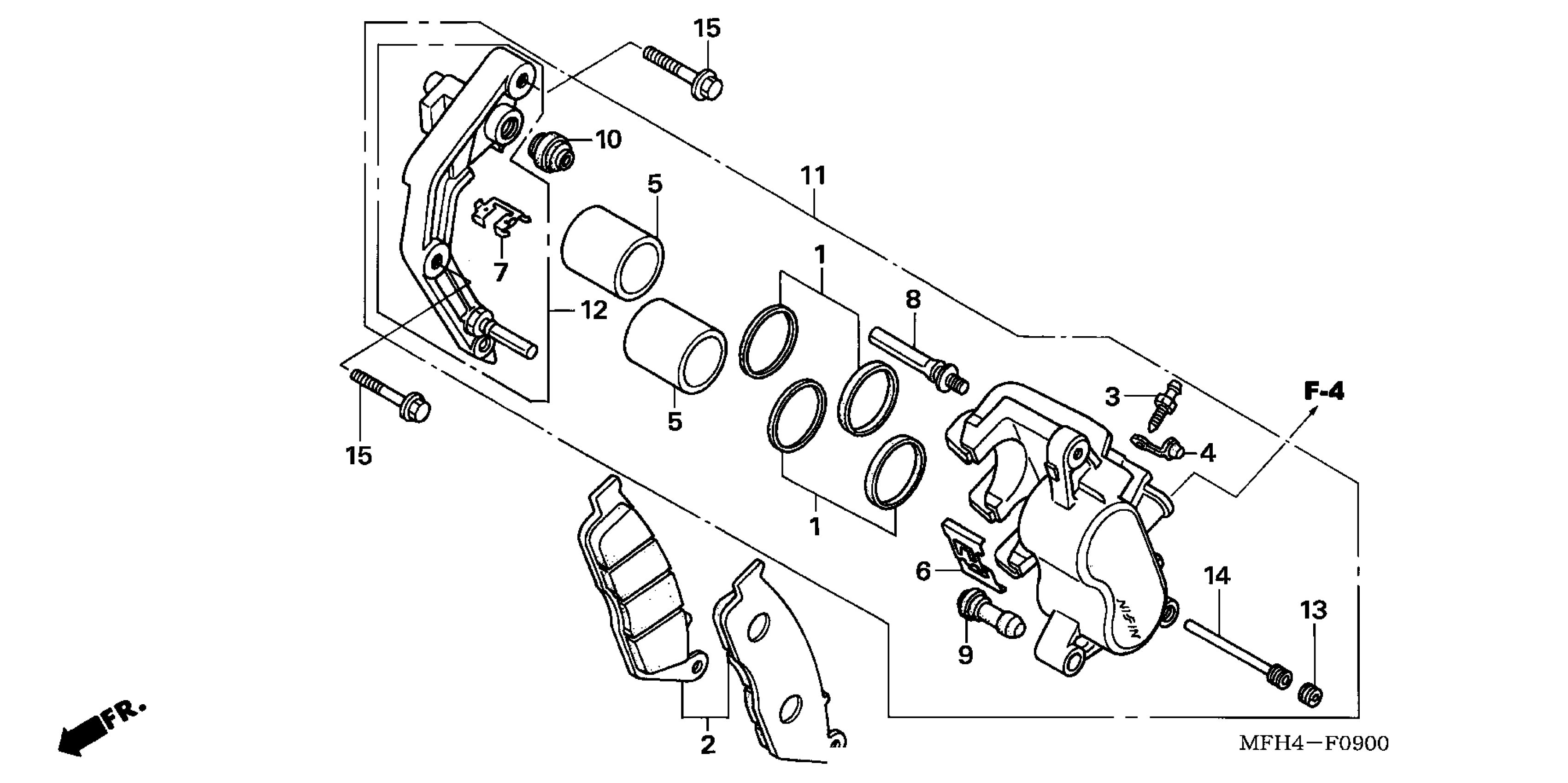

Honda VT600CA (07) SHADOW VLX, JPN, VIN# JH2PC210-7M800001 TO JH2PC210-7M809999 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET

06455-MW3-415

$42.81

PAD SET This part replaces 06455-MW3-405.

06455-MW3-415

$42.81

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-ML4-006

$37.87

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

RETAINER

45112-MS9-611

$5.46

BOLT A, PIN

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. BRAKE

45150-MZ8-U41

Unavailable

BRACKET SUB-ASSY., L. FR. CALIPER

45190-MZ8-U41

Unavailable

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-ML7-922

$10.67

BOLT, SPECIAL FLANGE (8X32)

90101-MZ8-000

$6.75
