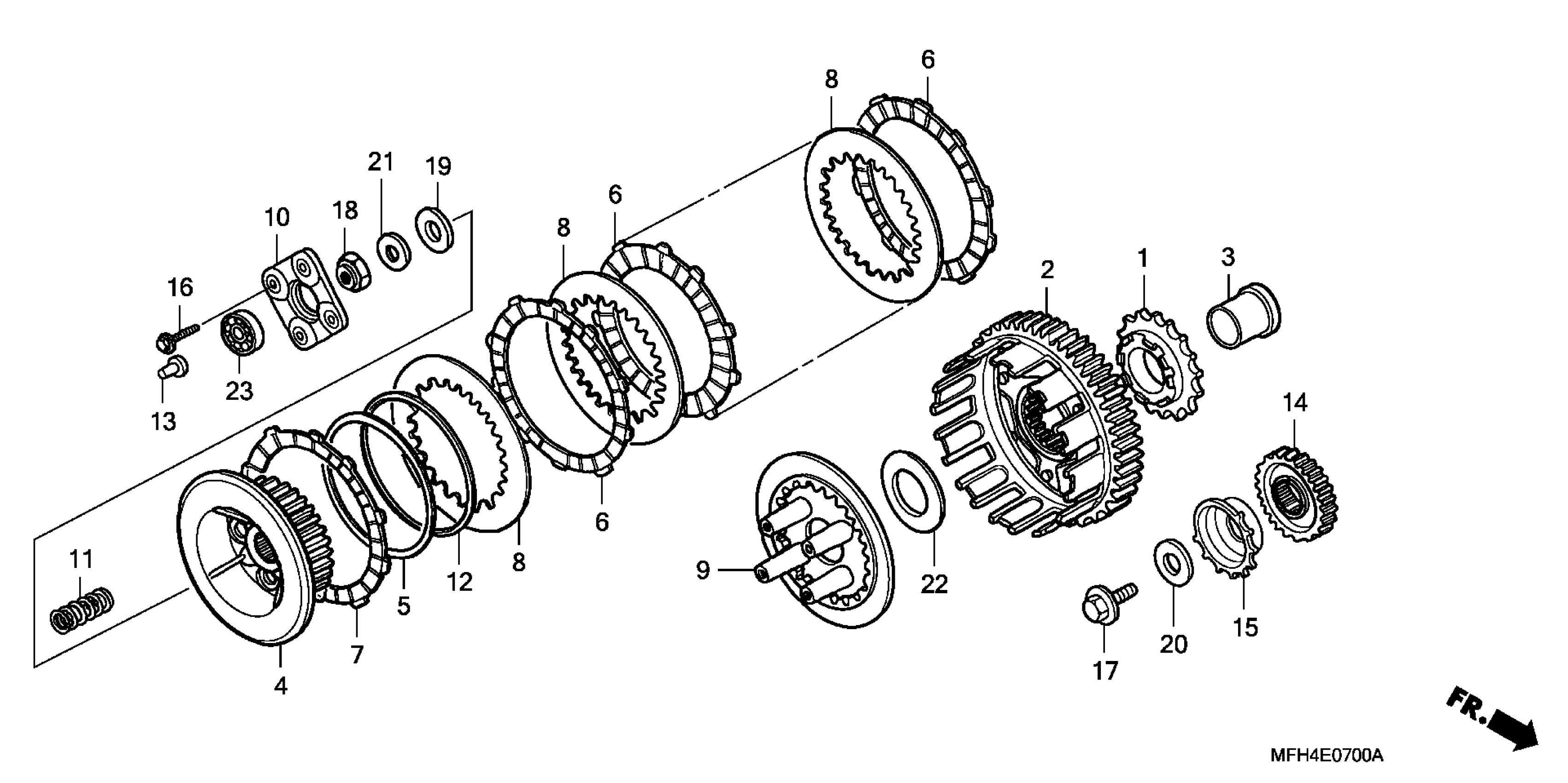

Honda VT600CA (07) SHADOW VLX, JPN, VIN# JH2PC210-7M800001 TO JH2PC210-7M809999 CLUTCH Diagram

SPROCKET, OIL PUMP DRIVE (31T)

15131-MR1-003

Unavailable

CLUTCH OUTER (68T)

22100-MZ8-H00

Unavailable

COLLAR, PRIMARY DRIVEN

22116-MF5-000

$49.72

CENTER, CLUTCH

22120-MZ8-B40

Unavailable

SEAT, JUDDER SPRING

22125-435-000

$9.15

DISK, CLUTCH FRICTION

22201-MAL-600

$17.72

DISK B, CLUTCH FRICTION

22202-MAE-000

$16.01

PLATE, CLUTCH

22321-MM9-000

$9.48

PLATE, CLUTCH PRESSURE This part replaces 22350-MS6-921.

22350-MS6-922

$60.04

PLATE, CLUTCH LIFTER

22361-MR1-000

$21.17

SPRING, CLUTCH

22401-MM9-000

$3.81

SPRING, JUDDER

22402-435-000

$34.37

ROD, CLUTCH LIFTER

22847-MZ8-H00

$5.84

GEAR, PRIMARY DRIVE (36T)

23103-MR1-010

Unavailable

ROTOR, PULSE

30211-MZ8-U40

$21.13

BOLT, SPECIAL FLANGE (6X30)

90007-MR1-000

$2.92

BOLT, UBS (12X28)

90013-415-000

$11.49

NUT, LOCK (18MM)

90236-HA0-000

$10.45

WASHER (18MM)

90401-MZ8-B40

$2.52

WASHER (12.5X34X5)

90402-MCL-000

$4.62

WASHER, LOCK

90432-428-000

$7.57

WASHER, THRUST (22MM)

90452-471-000

$4.76

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
