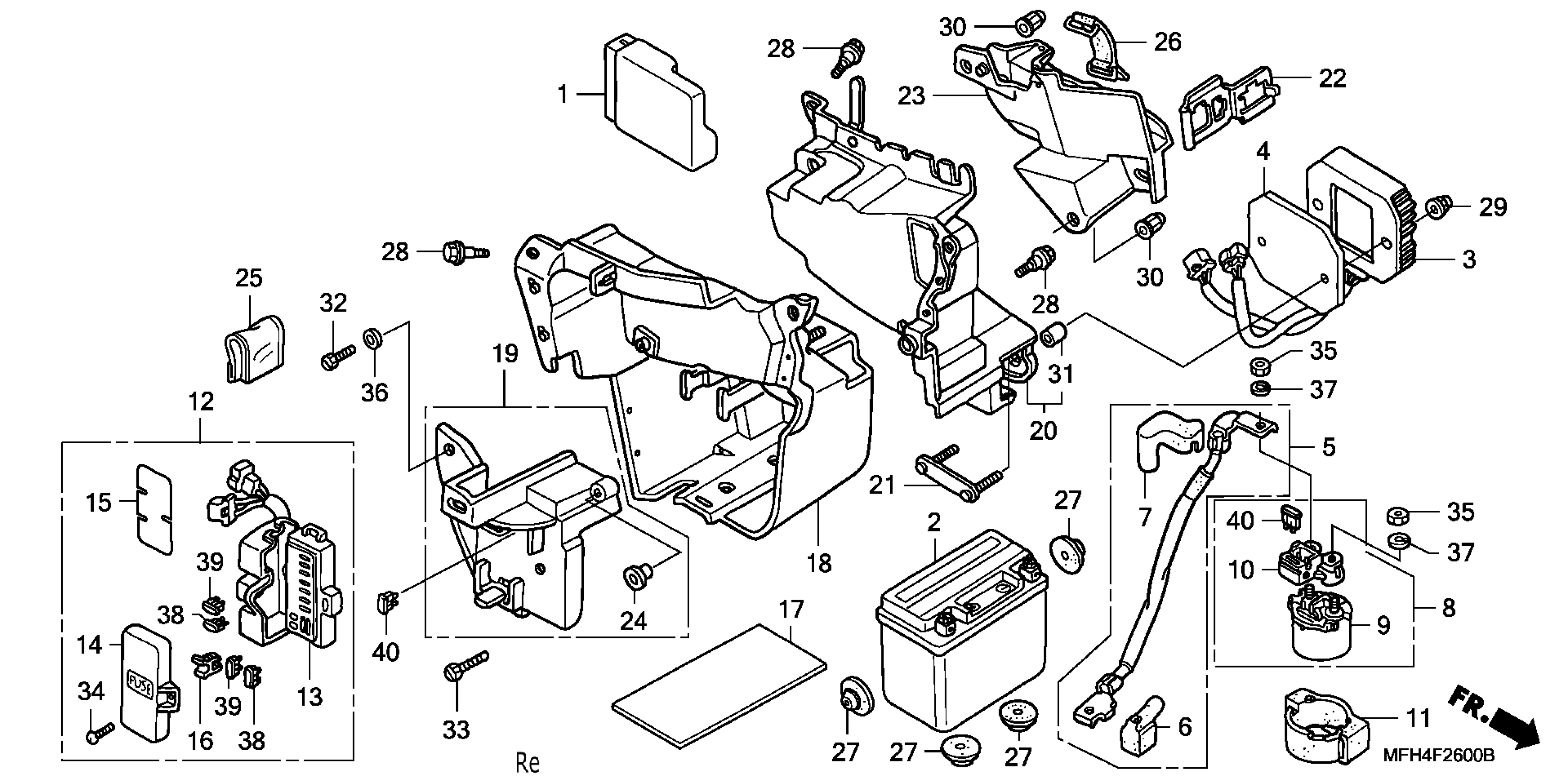

Honda VT600CA (07) SHADOW VLX, JPN, VIN# JH2PC210-7M800001 TO JH2PC210-7M809999 BATTERY + BATTERY BOX Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI)

30410-MZ8-U41

Unavailable

2

BATTERY (YTZ10S) (YUASA) (MSDS) This part replaces 31500-MCJ-642AH.

31500-MCJ-643

$161.80

3

RECTIFIER ASSY., REGULATE

31600-MY0-771

$311.84

4

SPACER, REGULATOR RECTIFIER

31605-MZ8-U40

$4.87

5

CABLE, STARTER BATTERY

32401-MBS-840

Unavailable

6

COVER, BATTERY TERMINAL

32412-MBS-840

Unavailable

7

COVER, STARTER MAGNETIC

32416-KW9-000

Unavailable

8

SWITCH ASSY., STARTER MAGNETIC

35850-MK3-671

$114.43

9

SWITCH, STARTER MAGNETIC

35851-MF5-751

$95.57

10

HOLDER ASSY., FUSE

35855-MG7-751

$33.93

11

RUBBER, SHOCK

35856-MR1-000

$9.88

12

BOX ASSY., FUSE

38200-MR1-830

$87.96

13

BASE

38201-MR1-830

Unavailable

14

COVER, FUSE

38202-MR1-830

Unavailable

15

LABEL, FUSE

38215-MR1-831

Unavailable

16

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

17

BASE, BATTERY

50321-MBS-840

Unavailable

18

BOX, BATTERY

50325-MR1-000

Unavailable

19

COVER, BATTERY

50330-MR1-000

$24.65

20

PLATE, ELECTRIC

50333-MR1-000

Unavailable

21

PLATE, REGULATE RECTIFIER

50336-MR1-000

$11.30

22

HOLDER, CONNECTOR

50338-MR1-010

$11.38

23

TRAY, TOOL

50339-MR1-000

Unavailable

24

COLLAR A, FAIRING SETTING

64531-GE3-000

Unavailable

25

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.00

26

BAND, SIDE COVER

83606-356-000

$20.88

27

RUBBER, BATTERY BOX

83618-323-000

$2.36

28

BOLT, FLANGE (6MM)

90111-187-000

$5.21

29

NUT, CAP (6MM)

90202-ZV0-000

$2.65

30

NUT, CAP (6MM)

90308-SB0-000

Unavailable

31

SPACER, HANDLE END GUARD

90503-MG7-000

$2.80

32

BOLT, RECESSED (6X10)

92301-06010-0A

$0.71

33

BOLT, RECESSED (6X25)

92301-06025-0A

$1.32

34

SCREW, PAN (4X10)

93500-04010-0H

$0.83

34

SCREW, PAN (4X10) This part replaces 93500-04010-1H.

93500-04010-0H

$0.83

35

NUT, HEX. (6MM)

94002-06080-0S

$1.19

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

36

WASHER, PLAIN (6MM)

94101-06800

Unavailable

37

WASHER, SPRING (6MM)

94111-06800

$1.03

38

FUSE, BLADE (10A)

98200-31000

$1.19

39

FUSE, BLADE (15A)

98200-31500

$1.19

40

FUSE, BLADE (30A)

98200-33000

$1.19
