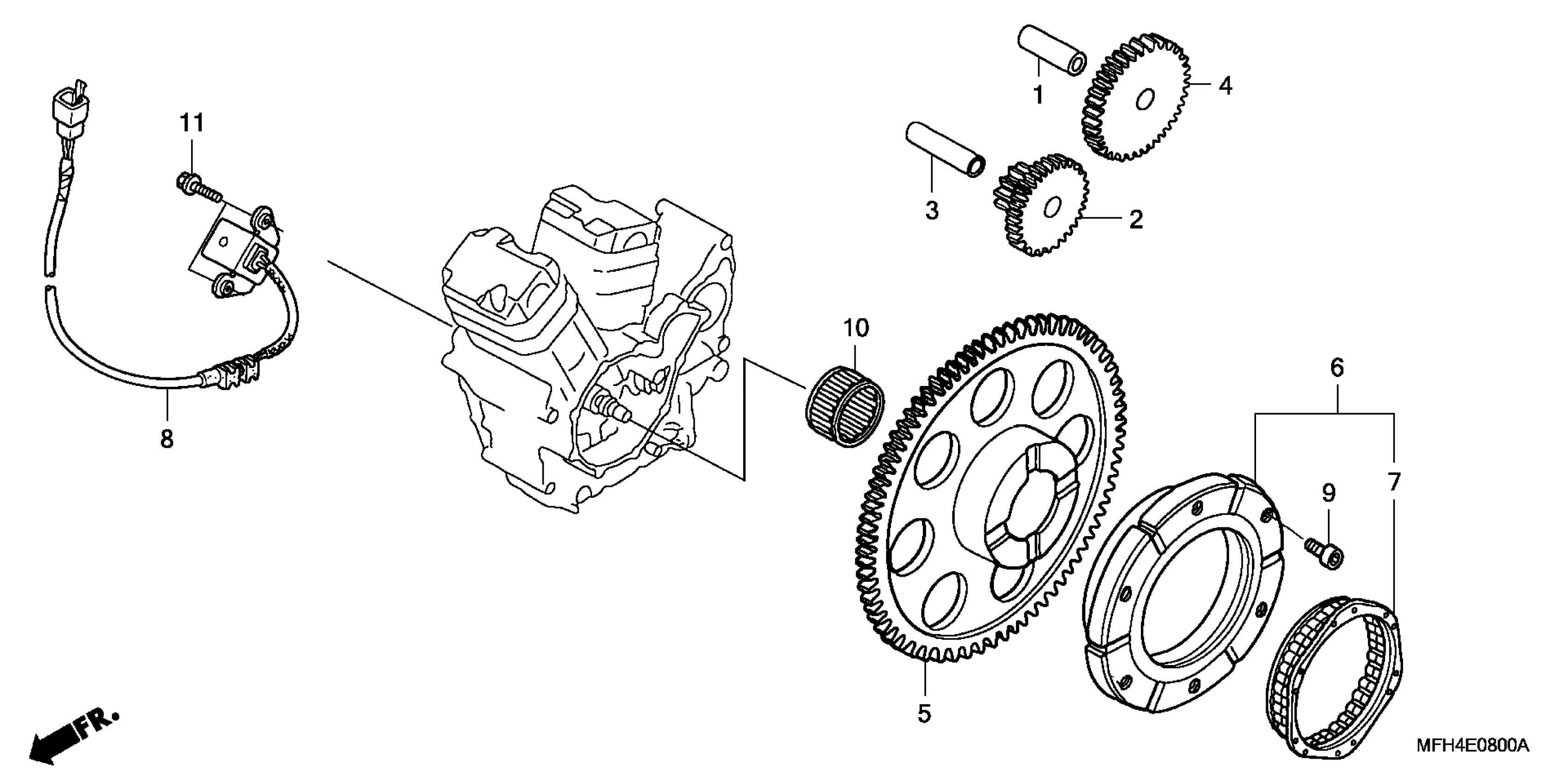

Honda VT600CA (06) SHADOW VLX, JPN, VIN# JH2PC210-6M700001 TO JH2PC210-6M709999 STARTING CLUTCH Diagram

#

Description

Price

1

PIN, PISTON

13111-GS7-000

$9.55

1

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

2

GEAR, STARTER REDUCTION (38T/12T)

28101-MS8-000

Unavailable

3

PIN (10X44)

28102-ME9-000

$10.35

4

GEAR, STARTER (51T) This part replaces 28106-ME9-010.

28106-MGS-D30

$77.95

5

GEAR, STARTER DRIVEN (75T)

28110-MM9-000

$159.43

6

CLUTCH OUTER ASSY., STARTING (FUJI)

28125-MBA-003

$233.08

7

CLUTCH, ONE-WAY

28126-MAA-A01

$85.77

8

GENERATOR ASSY., PULSE

30300-MZ8-U40

Unavailable

9

BOLT, SOCKET (8MM)

90010-MAY-000

$5.41

10

BEARING, NEEDLE (30X37X20) (NTN)

91021-MF5-841

$32.52

11

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
