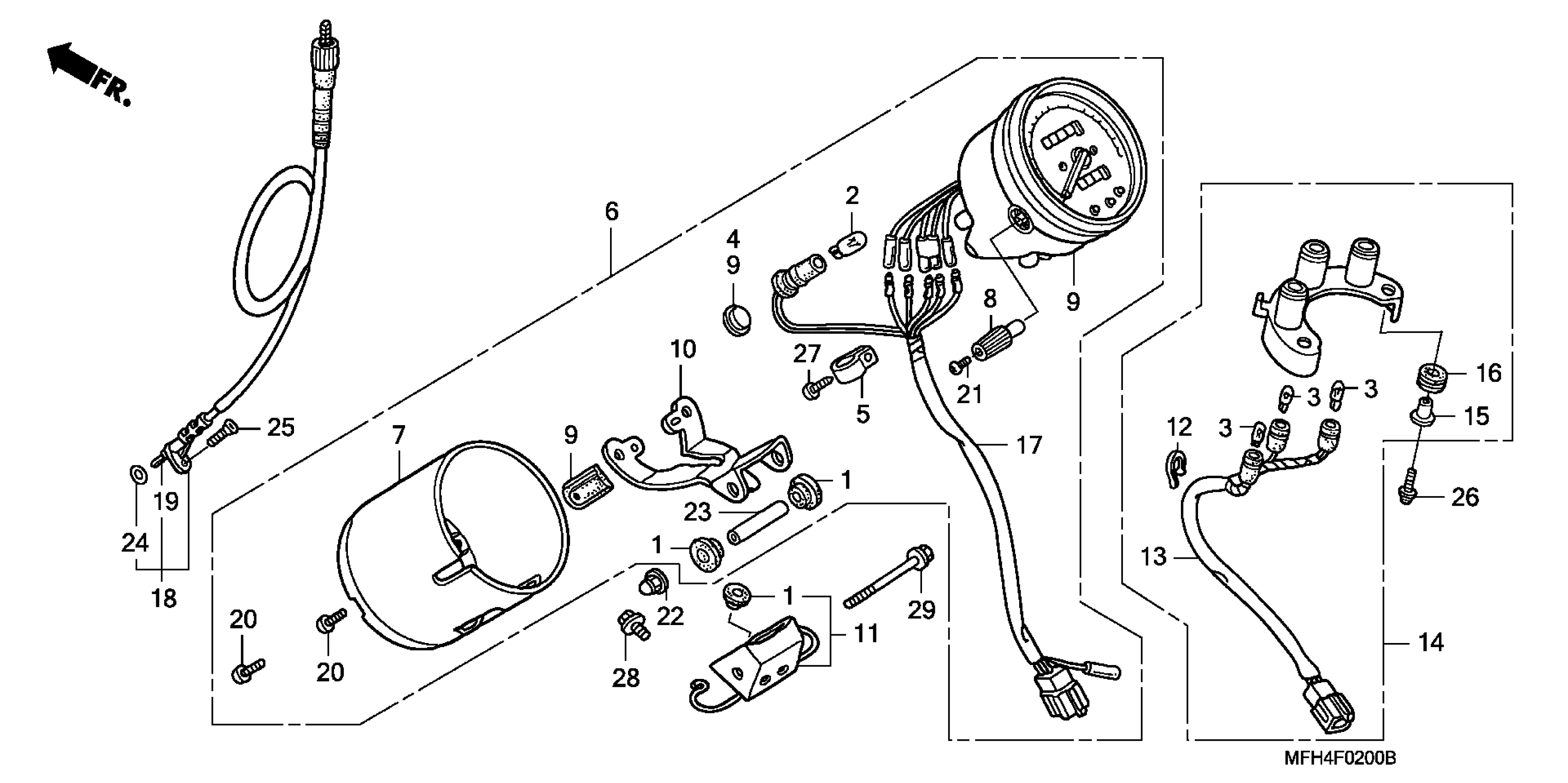

Honda VT600CA (06) SHADOW VLX, JPN, VIN# JH2PC210-6M700001 TO JH2PC210-6M709999 SPEEDOMETER Diagram

RUBBER, TAILLIGHT SETTING

33718-MM2-000

$4.74

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

BULB, WEDGE BASE (12V 1.7W)

34908-MG9-951

$2.33

CAP A

37116-KG4-008

Unavailable

CLAMP

37121-KV3-008

$4.36

SPEEDOMETER ASSY. (MPH/KPH)

37200-MZ8-V01

Unavailable

COVER, SPEEDOMETER

37202-MR1-008

Unavailable

KNOB This part replaces 37205-MN0-008.

37220-KR3-671

$11.09

KNOB

37220-KR3-671

$11.09

SPEEDOMETER

37210-MZ8-V01

$401.93

STAY A

37211-MR1-008

$42.52

STAY, METER

37212-MR1-000

$44.13

BAND, SELF-LOCK

37226-MZ5-008

$2.97

SOCKET

37562-MZ8-A01

Unavailable

BOX ASSY., PILOT

37600-MZ8-A01

Unavailable

COLLAR

37606-MR1-008

Unavailable

RUBBER, PILOT BOX SETTING

37607-MR1-008

Unavailable

SOCKET

37619-MZ8-V01

Unavailable

CABLE ASSY., SPEEDOMETER

44830-MZ8-A20

$34.57

CABLE, SPEEDOMETER (INNER)

44831-MZ8-A20

Unavailable

SCREW, TRUSS (4X8)

90106-MR1-008

$3.24

SCREW, PAN (2X6)

90158-KM7-911

$1.92

NUT, CAP (6MM)

90202-ZV0-000

$2.91

COLLAR (8X50)

91104-MR1-008

$9.98

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

SCREW-WASHER (4X16)

93891-04016-07

$1.49

SCREW, TAPPING (4X16)

93903-24420

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X60)

96001-06060-02

Unavailable
