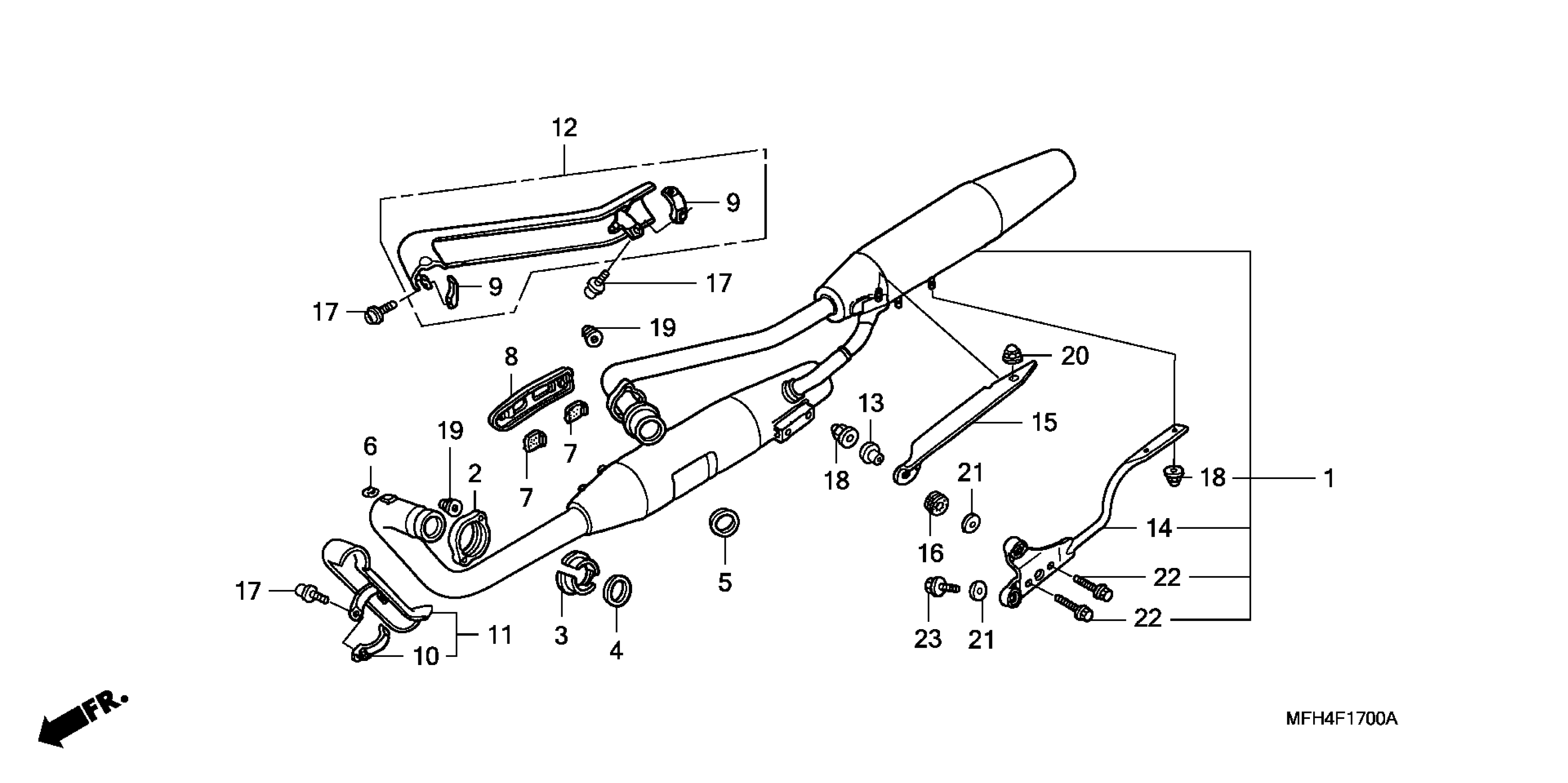

Honda VT600CA (06) SHADOW VLX, JPN, VIN# JH2PC210-6M700001 TO JH2PC210-6M709999 MUFFLER Diagram

MUFFLER ASSY., EX.

18100-MZ8-L01

Unavailable

JOINT, FR. EX. PIPE

18231-MR1-000

Unavailable

COLLAR, EX. PIPE JOINT This part replaces 18233-MR1-000.

18233-MR1-010

$9.52

GASKET, EX. PIPE

18291-MM5-860

$4.81

GASKET, EX. PIPE

18291-MN4-920

$4.94

RUBBER, PROTECTOR GASKET

18293-ME9-000

$2.75

RUBBER, PROTECTOR

18293-MN0-000

$1.94

COVER, MUFFLER

18315-MR1-000

$33.87

BAND, EX. PIPE COVER

18376-MR1-000

$8.40

BAND, FR. COVER

18377-MR1-000

$9.03

COVER, FR. EX. PIPE

18415-MR1-003

$68.99

COVER, RR. EX. PIPE

18418-MR1-003

$138.87

COLLAR (8MM)

18422-MR1-000

$5.12

BRACKET, MUFFLER

18455-MZ8-B00

Unavailable

BRACKET, MUFFLER (UPPER)

18456-MR1-003

Unavailable

GROMMET, RESERVE TANK

19111-MF5-000

$2.75

BOLT, SPECIAL FLANGE SOCKET (6X20)

90102-MK4-000

$3.17

NUT, FLANGE CAP (8MM)

90161-MM8-000

$2.80

NUT, CAP (8MM)

90304-ME1-670

$5.54

NUT, CAP (8MM)

90322-S10-003

$3.19

WASHER, PLAIN (8MM)

94103-08700

$0.86

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

BOLT, FLANGE (8X32)

95701-08032-07

$2.88
