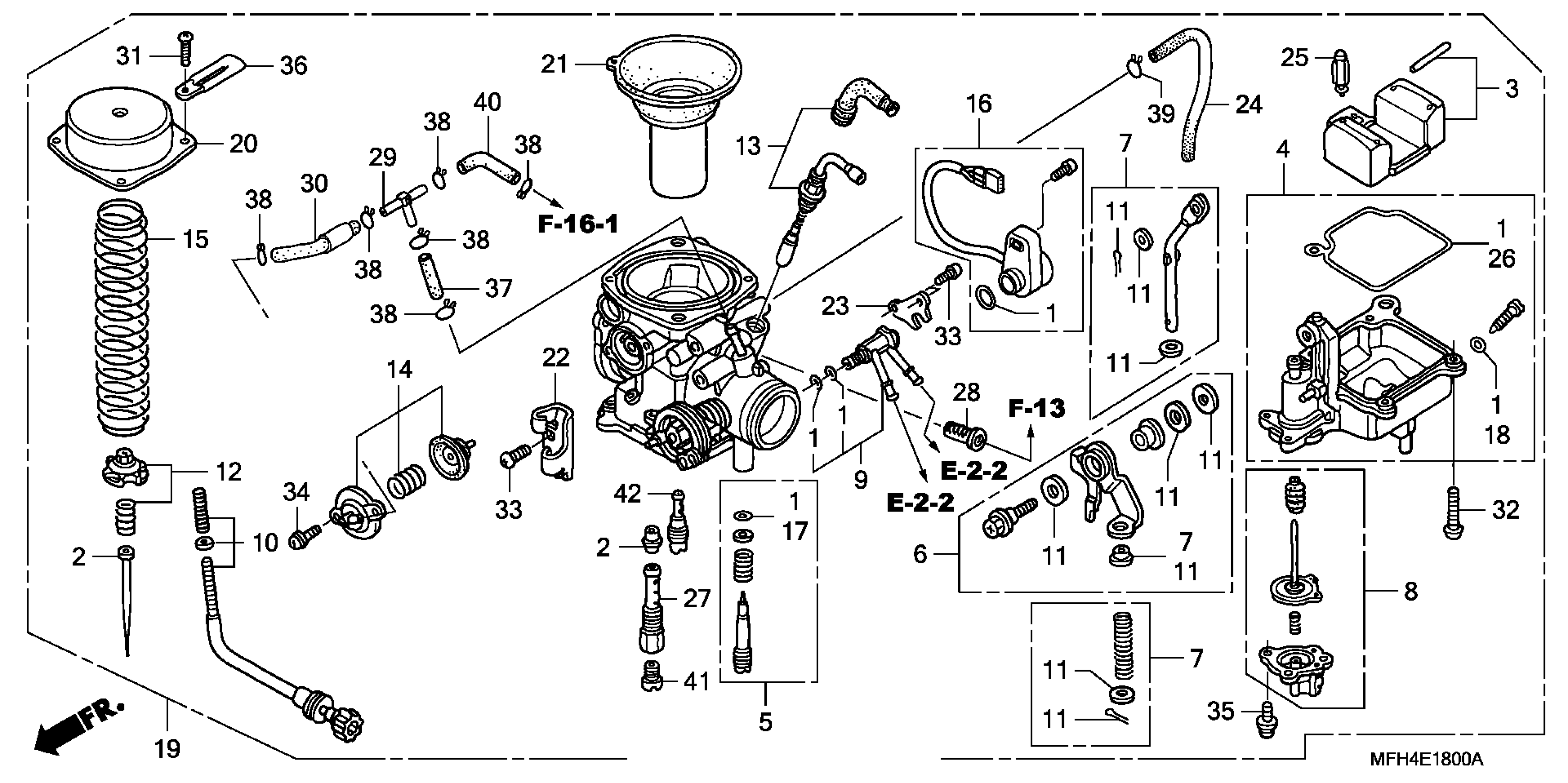

Honda VT600CA (06) SHADOW VLX, JPN, VIN# JH2PC210-6M700001 TO JH2PC210-6M709999 CARBURETOR (A,CM) Diagram

#

Description
Price

1

GASKET SET

16010-MZ8-U41

$36.11

2

NEEDLE SET, JET

16012-MFH-671

Unavailable

3

FLOAT SET

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT

16015-MEG-B01

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MEG-003.

16015-MEG-B01

Unavailable

5

SCREW SET A

16016-MZ8-S00

$22.78

6

LINK SET

16017-KBG-670

$44.36

7

ROD SET, PUMP

16019-MZ8-U41

$20.92

8

DIAPHRAGM SET, PUMP

16021-MZ8-U41

$91.12

9

JOINT SET

16026-MZ8-U52

Unavailable

10

SCREW SET B

16028-MZ8-H00

Unavailable

11

WASHER SET

16035-MZ8-H00

$7.87

12

PLATE SET, VALVE

16037-MZ8-U51

$20.23

13

VALVE SET, STARTER

16046-MZ8-H00

$47.86

14

VALVE SET, AIR CUT

16048-MZ8-H00

$110.58

15

SPRING, COMPRESSION COIL

16050-MCR-J01

Unavailable

16

SENSOR SET, THROTTLE

16060-MZ8-U41

Unavailable

17

O-RING (1.1X2.8)

16075-GHB-600

$2.33

18

O-RING (1.3X4.3)

16075-GHB-640

$2.92

19

CARBURETOR ASSY. (VE5CD A)

16100-MFH-671

Unavailable

20

TOP

16107-KCZ-000

Unavailable

21

PISTON, VACUUM

16111-MZ8-U51

Unavailable

22

STAY, WIRE

16119-KBR-000

Unavailable

23

PLATE, STAY

16120-MZ8-U42

$8.67

24

TUBE

16144-MZ8-U41

Unavailable

25

VALVE, FLOAT

16155-HN7-003

$28.87

26

GASKET, FLOAT CHAMBER

16163-MEA-671

$23.17

27

HOLDER, NEEDLE JET

16165-MZ8-U41

Unavailable

28

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.82

29

T-JOINT

16180-195-731

$12.95

30

TUBE

16196-MZ8-U51

$4.92

31

SCREW, PAN (4X8)

93500-04008-0A

$1.49

31

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

32

SCREW, PAN (4X14)

93500-04014-0A

$1.49

32

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$1.49

33

SCREW, PAN (5X10)

93500-05010-0A

$1.49

33

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

33

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

34

SCREW-WASHER (4X10)

93892-04010-08

$1.49

34

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

35

SCREW-WASHER (4X12)

93892-04012-00

$1.49

35

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

36

CLIP (4X40)

94591-44000

$2.31

37

BULK HOSE, FUEL (3.5X3000) (3.5X45)

95001-35003-60M

$20.85

38

CLIP, TUBE (B7)

95002-02079

$1.49

39

CLIP, TUBE (B12)

95002-02120

$2.00

40

BULK HOSE, VACUUM (3.5X1000) (3.5X70)

95005-35001-20M

$9.67

41

JET, MAIN (#125)

99101-KRY-1250

$9.30

42

JET, SLOW (#45) This part replaces 99103-MZ8-0450.

99104-KPF-0450

$11.86
