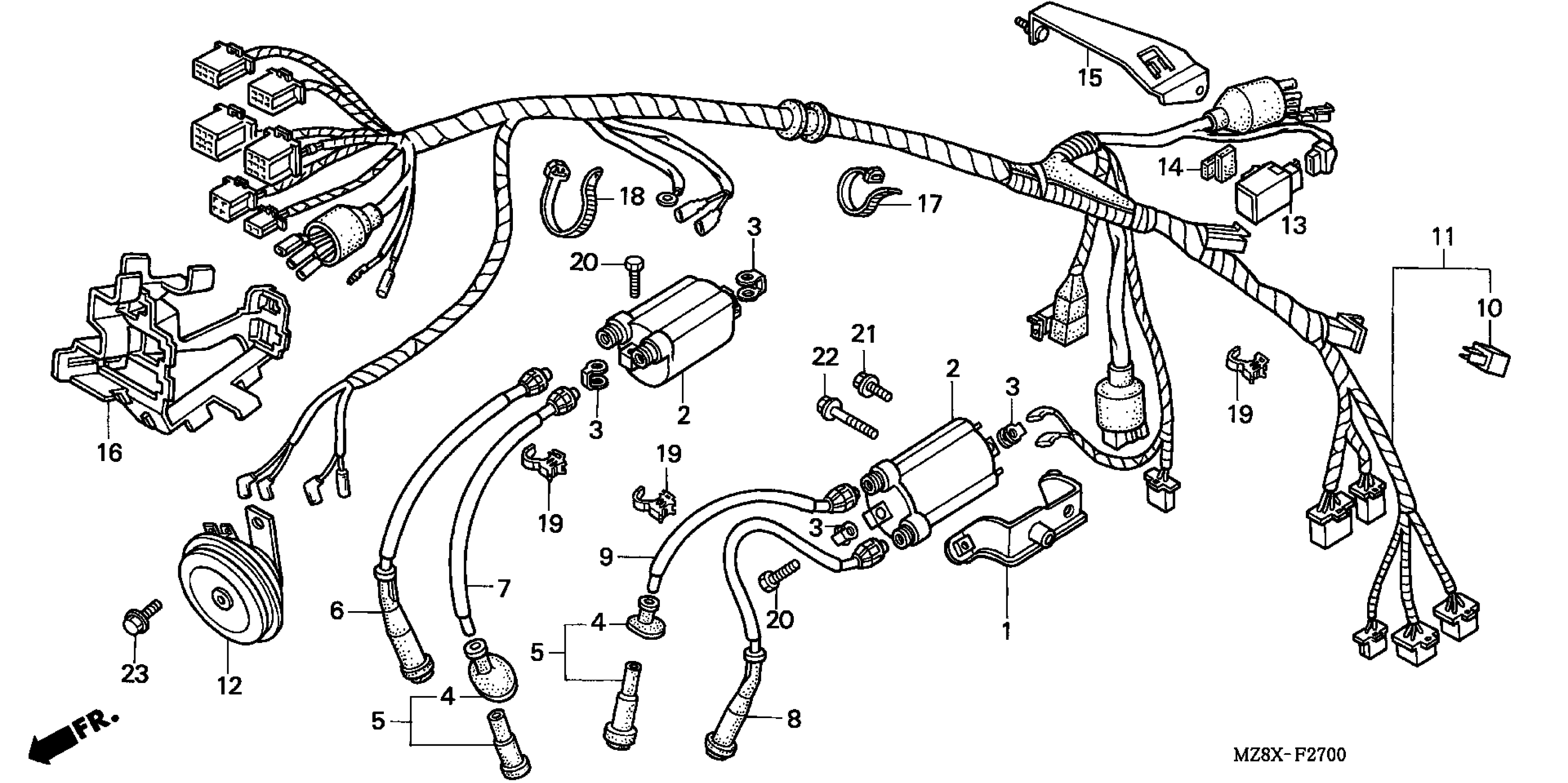

Honda VT600CA (05) SHADOW VLX, JPN, VIN# JH2PC210-5M600001 WIRE HARNESS Diagram

STAY, RR. IGNITION COIL

30507-MR1-000

Unavailable

COIL, IGNITION (TEC)

30510-MM8-003

$112.08

SPACER, IGNITION COIL

30520-ML7-000

$3.77

SEAL, PLUG CAP

30605-MF5-000

$20.15

CAP ASSY., NOISE SUPPRESSOR

30701-MF5-000

$36.46

CAP ASSY. 1, IGNITION

30751-MR1-000

$44.80

WIRE 2, IGNITION

30752-MR1-000

$27.61

CAP ASSY. 3, IGNITION

30753-MR1-000

$44.80

WIRE 4, IGNITION

30754-MR1-000

$24.44

RECTIFIER, SILICON

31700-196-000

$26.42

WIRE HARNESS

32100-MZ8-U40

Unavailable

HORN (HIGH)

38110-KV0-008

Unavailable

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

STAY, TURN SIGNAL RELAY

50345-MZ8-U40

$14.44

HOLDER, L. FR. CONNECTOR

50352-MR1-000

Unavailable

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, SUCTION HOSE (BLACK)

90679-SG9-E01

$3.73

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X12)

95701-08012-07

$1.72
