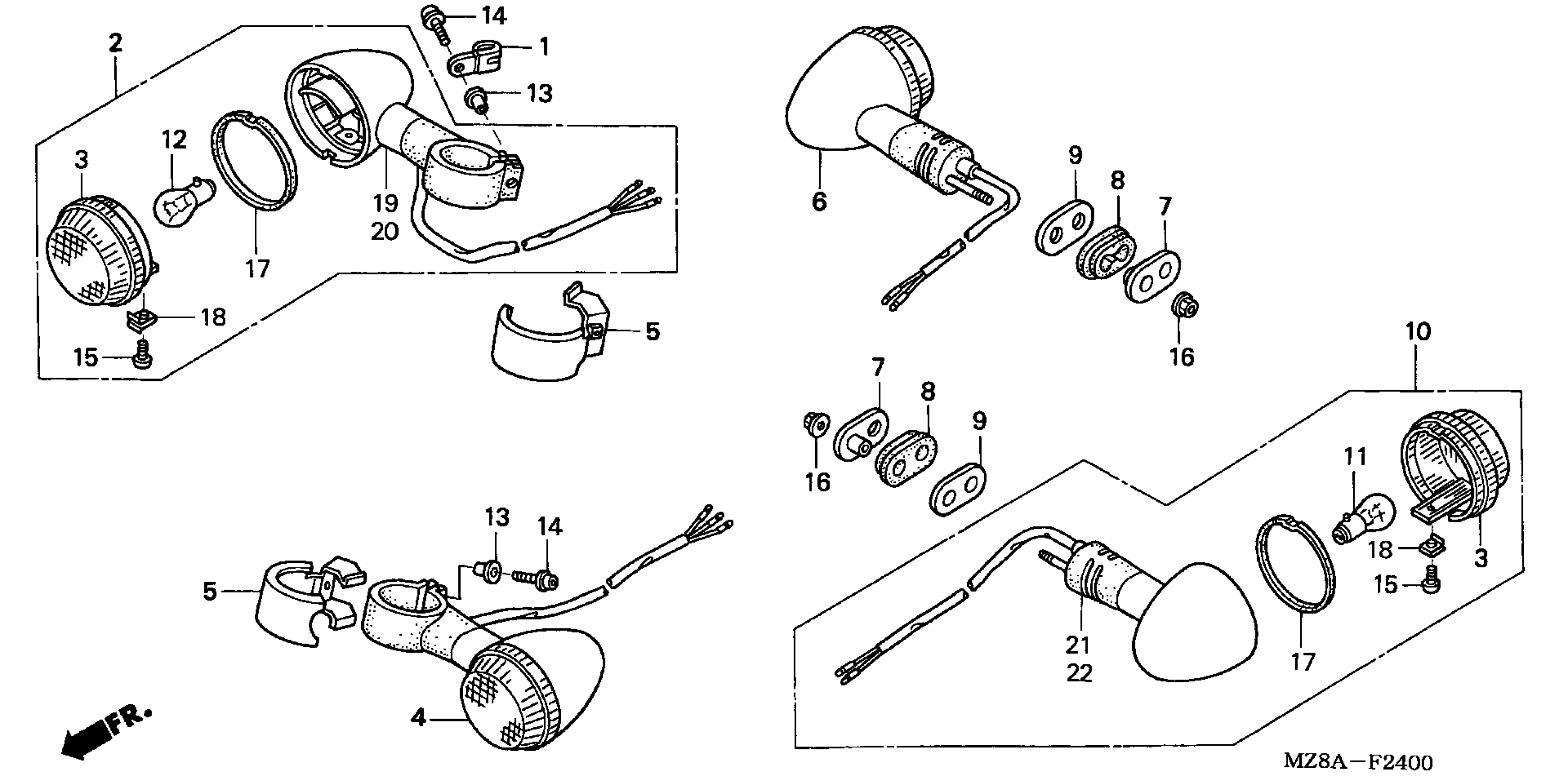

Honda VT600CA (05) SHADOW VLX, JPN, VIN# JH2PC210-5M600001 TURN SIGNAL Diagram

CLIP, PULSER WIRE

32925-958-000

$2.92

LENS, TURN SIGNAL (COO) This part replaces 33401-MBA-612.

33401-MFR-305

$10.20

STAY, FR. TURN SIGNAL

33500-MZ8-000

Unavailable

WASHER, TURN SIGNAL MOUNTING

33602-MM8-000

$11.98

RUBBER, RR. TURN SIGNAL MOUNTING

33603-MM8-000

$9.48

WASHER, RR. TURN SIGNAL MOUNTING

33604-MAH-000

$5.49

BULB (12V 21W) (ECE) (STANLEY)

34908-634-611

$5.88

BULB, TAILLIGHT (12V 21/5W) (STANLEY)

34906-447-711

$9.38

COLLAR, COVER MOUNTING

83505-MN0-000

$6.61

BOLT, FLANGE SOCKET (6X25)

90097-KF0-000

Unavailable

SCREW, SPECIAL (4X8)

33403-MBA-611

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

GASKET, LENS

33407-MBA-611

$3.15

NUT, CLIP

33408-MBA-611

$2.11

BASE, R. FR. TURN SIGNAL

33402-MZ8-U40

$37.93

BASE, L. FR. TURN SIGNAL

33452-MZ8-U40

$35.77

BASE, R. RR. TURN SIGNAL

33602-MZ8-U40

$41.32

BASE, L. RR. TURN SIGNAL

33652-MZ8-U40

$41.32
