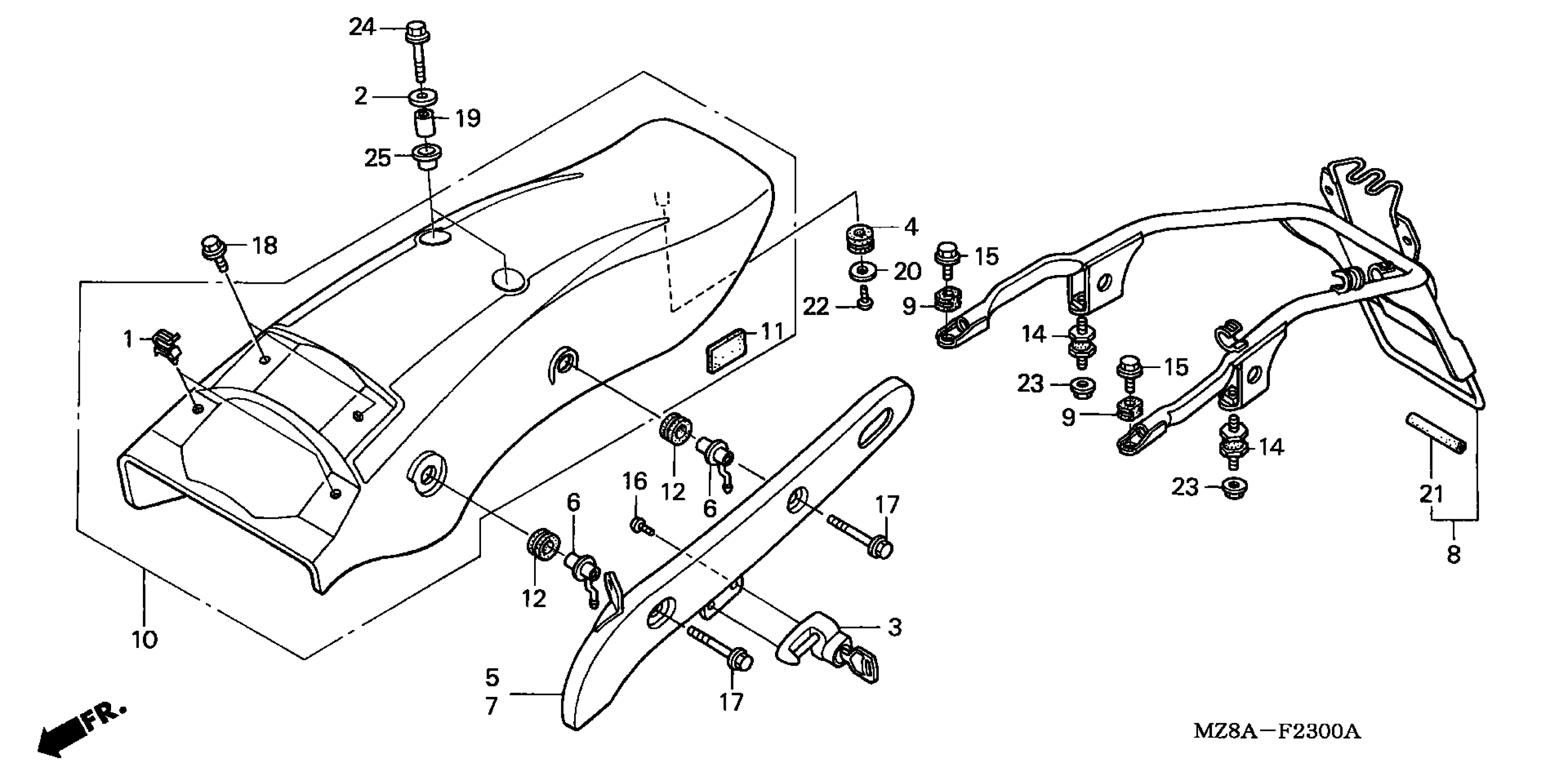

Honda VT600CA (05) SHADOW VLX, JPN, VIN# JH2PC210-5M600001 REAR FENDER Diagram

#

Description
Price

1

CLIP, CABLE

32171-KW9-971

$2.29

2

WASHER, TAILLIGHT

33711-KAE-000

Unavailable

3

HOLDER ASSY., HELMET (HONDALOCK)

50710-GB4-007

$67.46

4

RUBBER, SEAT SETTING

77206-MJ0-000

$3.66

5

GRAB RAIL, R.

77330-KW9-970

Unavailable

6

COLLAR, RR. COWL

77331-KW9-970

Unavailable

7

GRAB RAIL, L.

77340-KW9-970

Unavailable

8

SUB-FRAME, RR.

80111-MZ8-L50

Unavailable

9

RUBBER, SUB-FRAME MOUNTING

80114-MR1-000

Unavailable

10

COWL, RR. *NH1* (BLACK)

80120-MZ8-L80ZA

Unavailable

11

RUBBER, PROTECTOR

81214-MT3-300

$2.29

12

RUBBER

84253-MT3-000

$3.89

14

RUBBER, OIL COOLER MOUNTING

85201-438-000

$12.33

15

BOLT, FLANGE (6X13)

90002-HA7-670

$3.95

16

SCREW, PAN (6X12)

90106-MAV-000

$1.99

17

BOLT, SPECIAL FLANGE (8X50)

90109-MZ5-000

$6.04

18

BOLT, FLANGE (6MM)

90111-162-000

$2.62

19

COLLAR, IGNITION COIL SETTING

30507-439-930

Unavailable

20

WASHER (4.5X18)

90502-KK9-910

$2.88

21

TUBE, PROTECTOR

90505-KW9-000

$2.96

22

SCREW, TAPPING (4X12) (PO)

93913-24280

$1.58

23

NUT, FLANGE (6MM)

94050-06000

$0.59

24

BOLT, FLANGE (6X35)

95701-06035-07

$1.71

25

WASHER (6.5X5.5)

90505-MA6-000

$2.80
