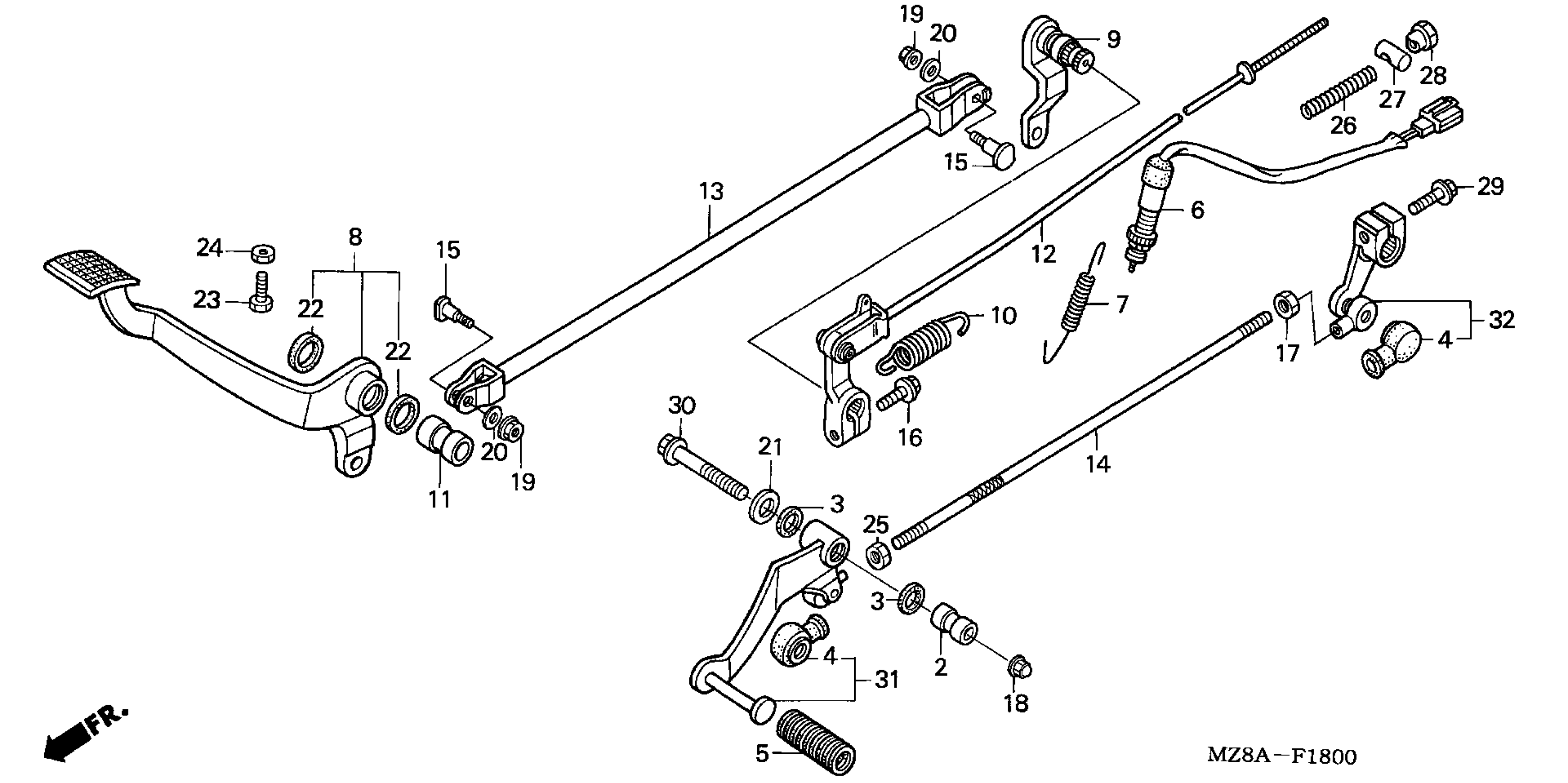

Honda VT600CA (05) SHADOW VLX, JPN, VIN# JH2PC210-5M600001 PEDAL Diagram

#

Description
Price

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$9.79

3

RUBBER, DUST SEAL

24706-MK3-770

$4.28

4

COVER, DUST

24724-422-000

$6.37

5

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

6

SWITCH ASSY., RR. STOP This part replaces 35350-GM2-010.

35350-MK3-405

$16.65

6

SWITCH ASSY., RR. STOP

35350-MK3-405

$16.65

7

SPRING, STOP SWITCH

35357-KE1-000

$5.87

8

PEDAL ASSY., RR. BRAKE

46500-MZ8-L50

$95.03

9

ARM, RR. BRAKE MIDDLE

46510-MZ8-G20

Unavailable

10

SPRING, BRAKE RETURN

46514-MR1-770

Unavailable

11

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$10.75

12

ROD, RR. BRAKE

46525-MR1-010

Unavailable

13

ROD, RR. BRAKE MIDDLE

46540-MBS-000

Unavailable

14

BOLT, TIE ROD

90065-MR1-003

Unavailable

15

BOLT, MIDDLE ROD JOINT

90104-MZ8-G20

Unavailable

16

BOLT, SOCKET (8X28)

90154-MJ0-000

Unavailable

17

NUT, HEX. (8MM)

90201-MR1-000

Unavailable

18

NUT, CAP (8MM)

90208-438-000

$3.41

19

NUT, U (6MM)

90301-473-003

$3.89

20

WASHER (6MM)

90502-HB3-000

$3.15

21

WASHER (8MM)

90514-921-000

$1.00

22

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

23

BOLT, HEX. (6X16)

92101-06016-0B

$1.19

24

NUT, HEX. (6MM)

94002-06020-0S

$1.01

25

NUT, HEX. (8MM)

94002-08020-0S

$1.15

26

SPRING A, BRAKE ROD

95014-73100

$1.19

27

JOINT B, BRAKE ARM

95015-32001

$0.87

28

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78

29

BOLT, FLANGE (6X20)

95701-06020-00

$1.63

30

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

31

PEDAL, GEARSHIFT This part replaces 24715-MBS-000.

24715-MZ8-R50

$63.46

31

PEDAL, GEARSHIFT This part replaces 24715-MR1-000.

24715-MZ8-R50

$63.46

32

ARM, GEARSHIFT

24725-MR1-000

Unavailable
