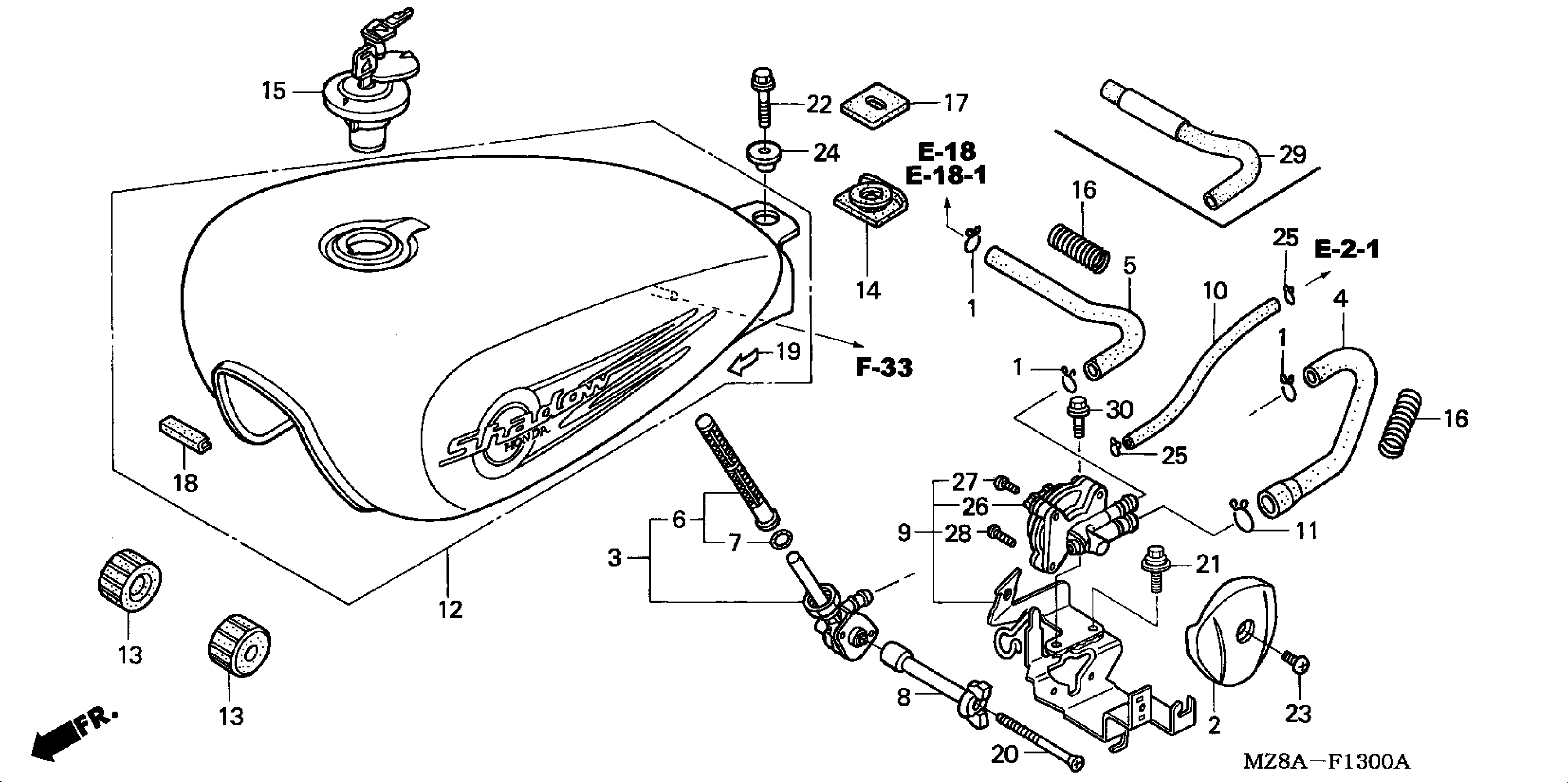

Honda VT600CA (05) SHADOW VLX, JPN, VIN# JH2PC210-5M600001 FUEL TANK Diagram

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

COVER, THROTTLE LINK

16112-MR1-000

$22.63

PETCOCK ASSY.

16950-MZ8-L23

$100.66

TUBE A, FUEL

16951-MZ8-G20

$14.81

SCREEN SET, FUEL STRAINER

16952-MZ8-L21

$19.54

O-RING

16958-KM9-005

$3.89

LEVER, PETCOCK

16963-MZ8-G20

$34.40

PETCOCK ASSY., AUTO | Use up to Frame SN 5M600637 This part replaces 16970-MZ8-G21.

16970-MZ8-G23

$211.16

PETCOCK ASSY., AUTO This part replaces 16970-MZ8-G22.

16970-MZ8-G23

$211.16

PETCOCK ASSY., AUTO

16970-MZ8-G23

$211.16

TUBE, AUTO PETCOCK

16981-MZ8-G20

$7.16

CLIP, BREATHER TUBE

17316-611-000

$9.23

TANK SET, FUEL (TYPE1) (WL)

17520-MZ8-U70ZA

Unavailable

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.22

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

CUSHION, RR. FUEL TANK

17613-MR1-000

$14.81

CAP, FUEL FILLER This part replaces 17620-KR3-013.

17620-KR3-023

$93.82

WIRE, GUARD

17672-MY1-000

$6.93

RUBBER, RR. FUEL TANK SETTING

80101-KW9-970

Unavailable

RUBBER, PROTECTOR

83171-KW9-680

Unavailable

MARK, FUEL PETCOCK (TYPE4)

83607-KV3-300ZD

Unavailable

SCREW, OVAL (5X80)

90020-MZ8-G20

$2.49

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, SPECIAL FLANGE (8X28)

90103-MB0-000

$4.94

SCREW A, COWL SETTING (LOWER)

90105-MJ6-841

$2.92

COLLAR, FUEL TANK SETTING

90324-MZ8-G20

$5.28

CLIP, TUBE (B7)

95002-02070

$1.80

COVER SET, PETCOCK | Use up to Frame SN 5M600637 This part replaces 16953-MN5-003.

16953-MN5-023

$52.33

COVER SET, PETCOCK This part replaces 16953-MN5-013.

16953-MN5-023

$52.33

COVER SET, PETCOCK

16953-MN5-023

$52.33

SCREW-WASHER (4X16)

93892-04016-00

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

SCREW-WASHER (4X20)

93892-04020-10

Unavailable

TUBE B, FUEL

16952-MZ8-U40

$10.67

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51
