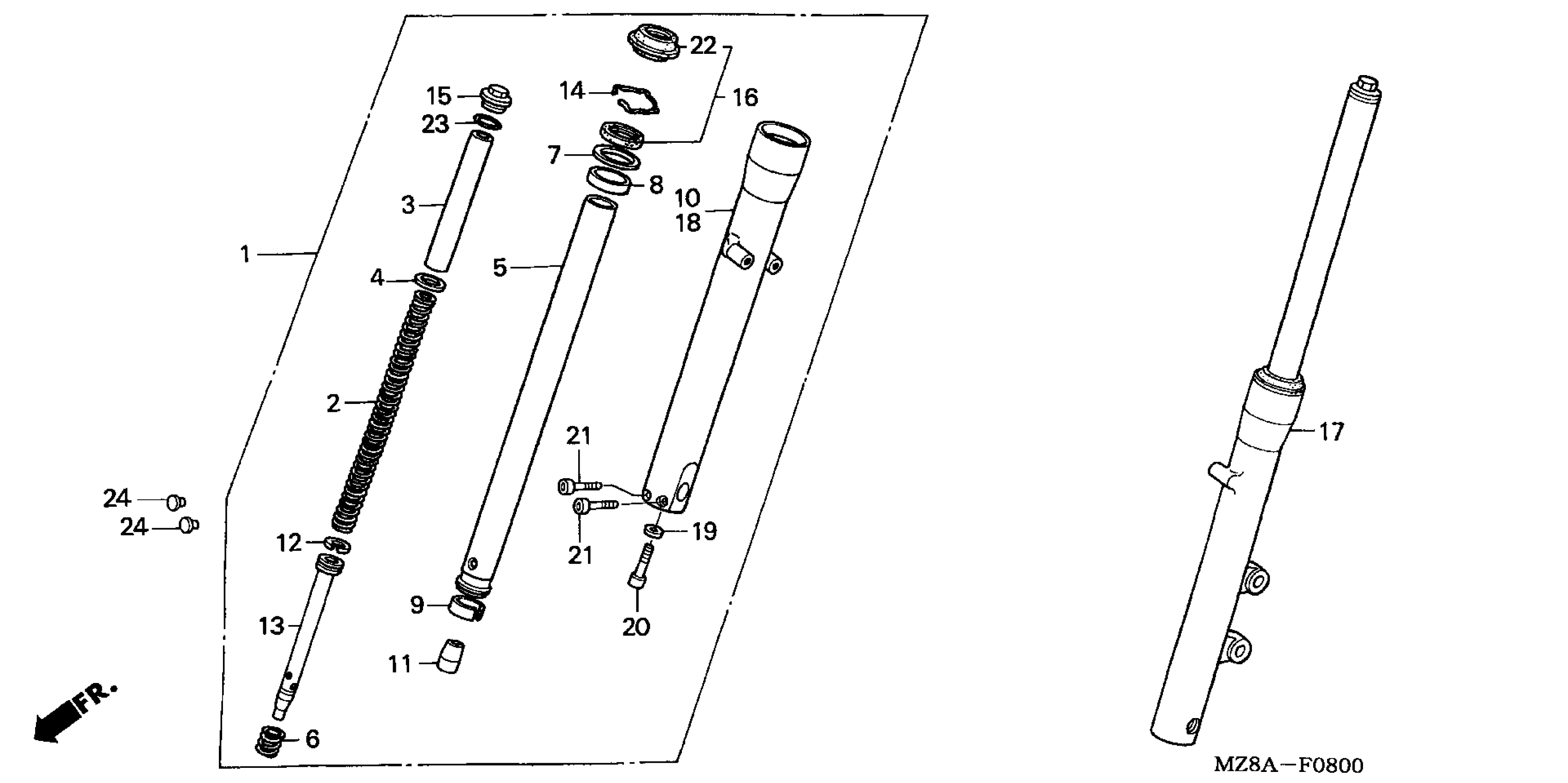

Honda VT600CA (03) SHADOW VLX, JPN, VIN# JH2PC210-3M400001 TO JH2PC210-3M499999 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (KAYABA)

51400-MBS-701

Unavailable

2

SPRING, FR. FORK

51401-MZ8-004

Unavailable

3

SPACER, SPRING

51402-MBS-701

$17.34

4

WASHER

51404-MZ8-004

$8.36

5

PIPE, FR. FORK

51410-MZ8-004

Unavailable

6

SPRING, FR. REBOUND

51411-MR1-671

Unavailable

7

RING, BACK-UP

51412-MJ1-672

$10.62

8

BUSH, GUIDE This part replaces 51414-MR1-671.

51414-MR1-672

$14.79

8

BUSH, GUIDE

51414-MR1-672

$14.79

9

BUSH, SLIDER This part replaces 51415-MR1-671.

51415-MR1-672

$15.55

9

BUSH, SLIDER

51415-MR1-672

$15.55

10

CASE, R. (LOWER) This part replaces 51420-MZ8-B01.

51420-MZ8-U41

Unavailable

11

PIECE, OIL LOCK

51432-MR1-672

$19.44

12

RING, PISTON (KAYABA)

51437-MM4-004

$8.69

13

PIPE, SEAT

51440-MBS-701

Unavailable

14

RING, SNAP

51447-KA4-004

$4.24

15

BOLT, FR. FORK

51450-MR1-671

Unavailable

16

SEAL SET, FR. FORK

51490-MR1-671

$36.22

17

FORK ASSY., L. FR. (KAYABA)

51500-MBS-701

Unavailable

18

CASE, L. (LOWER) This part replaces 51520-MZ8-B01.

51520-MZ8-U41

Unavailable

18

CASE, L. (LOWER)

51520-MZ8-U41

Unavailable

19

WASHER, OIL BOLT

52442-KA3-731

$2.34

20

BOLT, SOCKET (10MM)

90116-ML0-004

$6.71

21

BOLT, SOCKET (7X32) This part replaces 90151-MR1-000.

90151-MB1-000

$6.52

22

DUST SEAL, FR. FORK

91254-MR1-671

$19.69

23

O-RING (28.17X3.53)

91356-KA3-004

$3.10

24

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77
