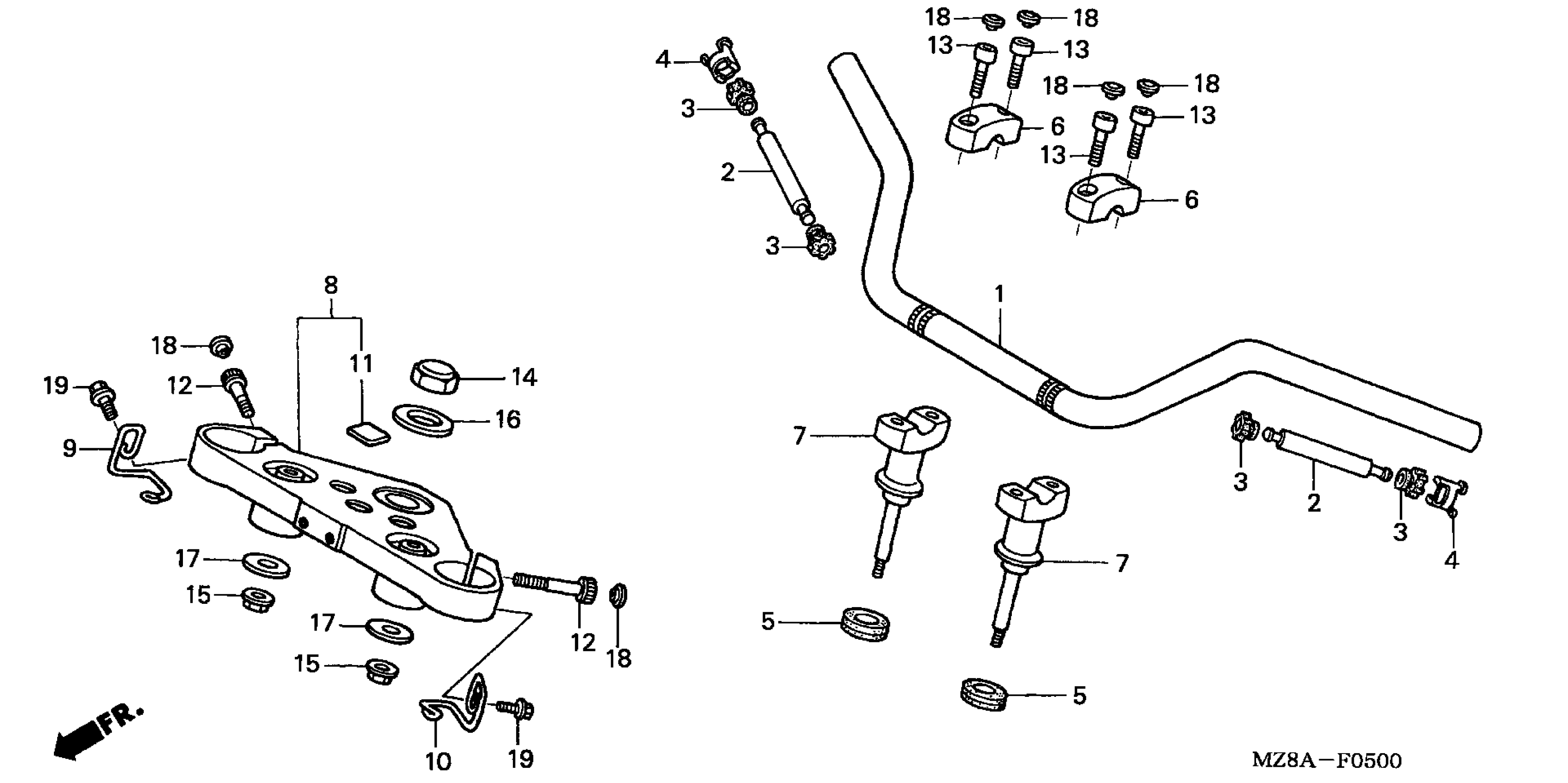

Honda VT600CA (02) SHADOW VLX, JPN, VIN# JH2PC210-2K300001 TO JH2PC210-2K309999 HANDLEBAR Diagram

HANDLEBAR (WIDE TYPE)

53100-MZ8-L50

$141.33

WEIGHT, HANDLE

53106-MZ8-G20

$15.30

RUBBER, HANDLE WEIGHT

53107-MZ8-G20

$4.84

RING, HANDLE WEIGHT SNAP

53108-KW9-920

$7.04

CAP, HANDLE (LOWER)

53125-KW9-700

$5.31

HOLDER, HANDLE (UPPER)

53131-MM8-000

$19.24

HOLDER, HANDLE (LOWER)

53231-MZ8-A20

$53.75

BRIDGE, FORK TOP This part replaces 53300-MZ8-H00.

53300-MZ8-U40

Unavailable

GUIDE, R. HARNESS

61315-MZ8-000

Unavailable

GUIDE, L. HARNESS

61316-MZ8-000

$10.56

EMBLEM, WING MARK

86150-MR1-760

$8.75

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

BOLT, SOCKET (8X32)

90154-ME9-000

$5.73

NUT, STEERING STEM

90304-415-000

$19.83

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

WASHER, STEERING STEM

90503-283-000

$4.37

WASHER, HANDLE HOLDER (LOWER)

90535-MR1-770

$3.81

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
