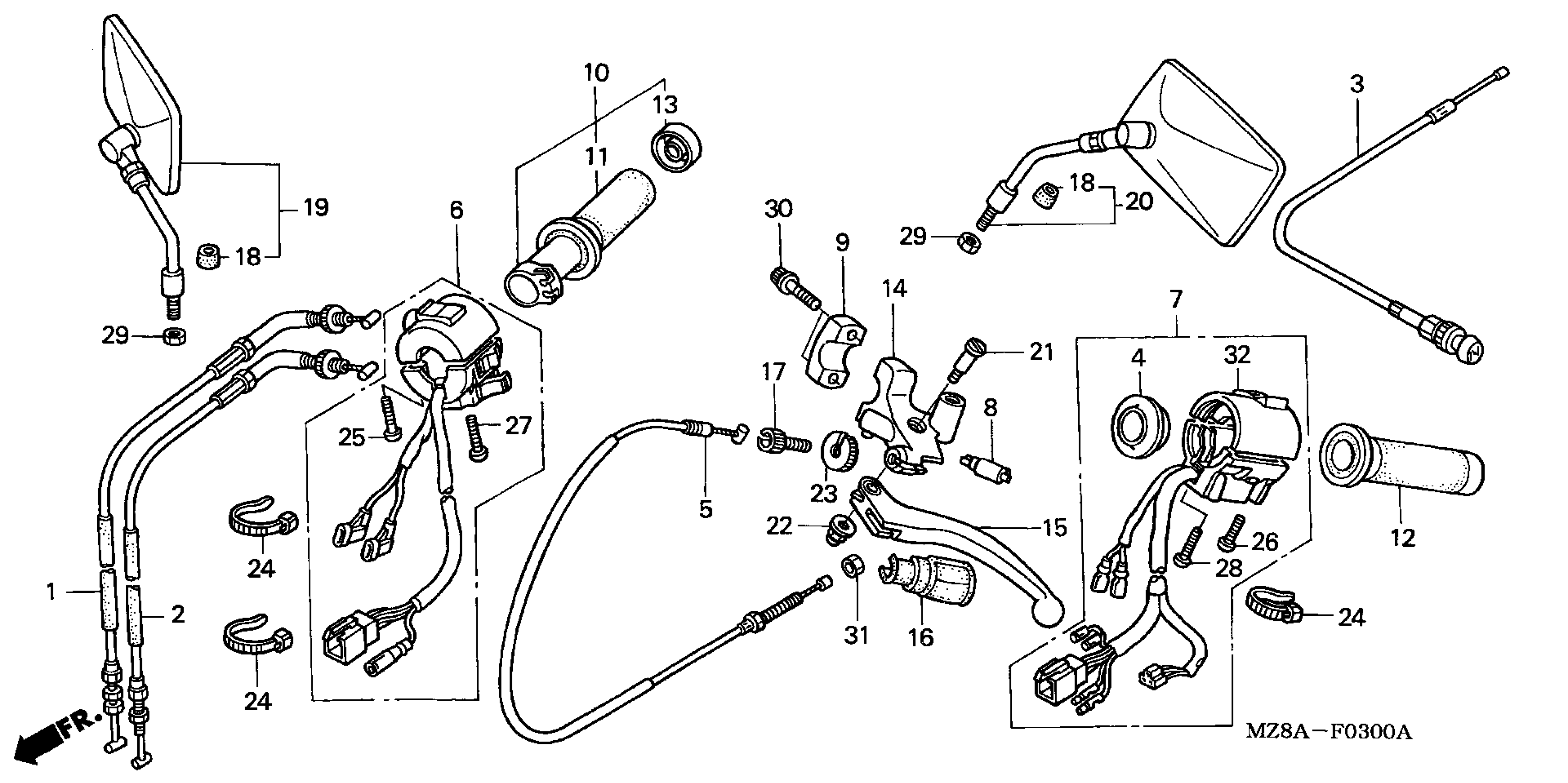

Honda VT600CA (02) SHADOW VLX, JPN, VIN# JH2PC210-2K300001 TO JH2PC210-2K309999 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MZ8-G20

$27.36

2

CABLE B, THROTTLE

17920-MZ8-G20

$30.51

3

CABLE, CHOKE

17950-MZ8-G20

$16.80

4

ADAPTER

17962-MR1-000

$17.31

5

CABLE, CLUTCH

22870-MZ8-G20

$23.39

6

SWITCH ASSY., STARTER & STOP This part replaces 35013-KW9-920.

35013-KW9-921

$82.89

6

SWITCH ASSY., STARTER & STOP

35013-KW9-921

$82.89

7

SWITCH SET, TURN SIGNAL

35020-KW9-920

$101.78

8

SWITCH, FR. LEVER (TOYO)

35330-413-003

$19.67

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$24.47

10

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$39.08

12

GRIP, L. HANDLE

53166-KCR-000

$32.91

13

CAP, GRIP END

53167-MM8-000

$8.41

14

BRACKET, HANDLE LEVER

53172-MR1-000

$32.04

15

LEVER, L. HANDLE

53178-KV0-000

$16.46

16

BOOT, HANDLE LEVER

53180-425-010

Unavailable

17

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

18

COVER, LOCK NUT

88113-KN8-000

$5.23

19

MIRROR, R. BACK

88210-MZ8-A20

Unavailable

20

MIRROR, L. BACK

88220-MZ8-A20

$58.91

21

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.06

22

NUT, CAP (6MM)

90201-415-000

$1.96

23

NUT, FIXING

90321-MA6-750

$9.38

24

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

25

SCREW, PAN (5X20)

93500-05020-0B

$1.16

26

SCREW, PAN (5X22)

93500-05022-0B

$1.19

27

SCREW, PAN (5X25)

93500-05025-0B

$1.12

28

SCREW, PAN (5X32)

93500-05032-0B

$1.32

29

NUT, HEX. (10MM)

94031-10020

$0.88

30

BOLT, SOCKET (6X22)

96600-06022-10

$1.91

31

NUT, HEX. (8MM)

94002-08070-0S

$1.19
