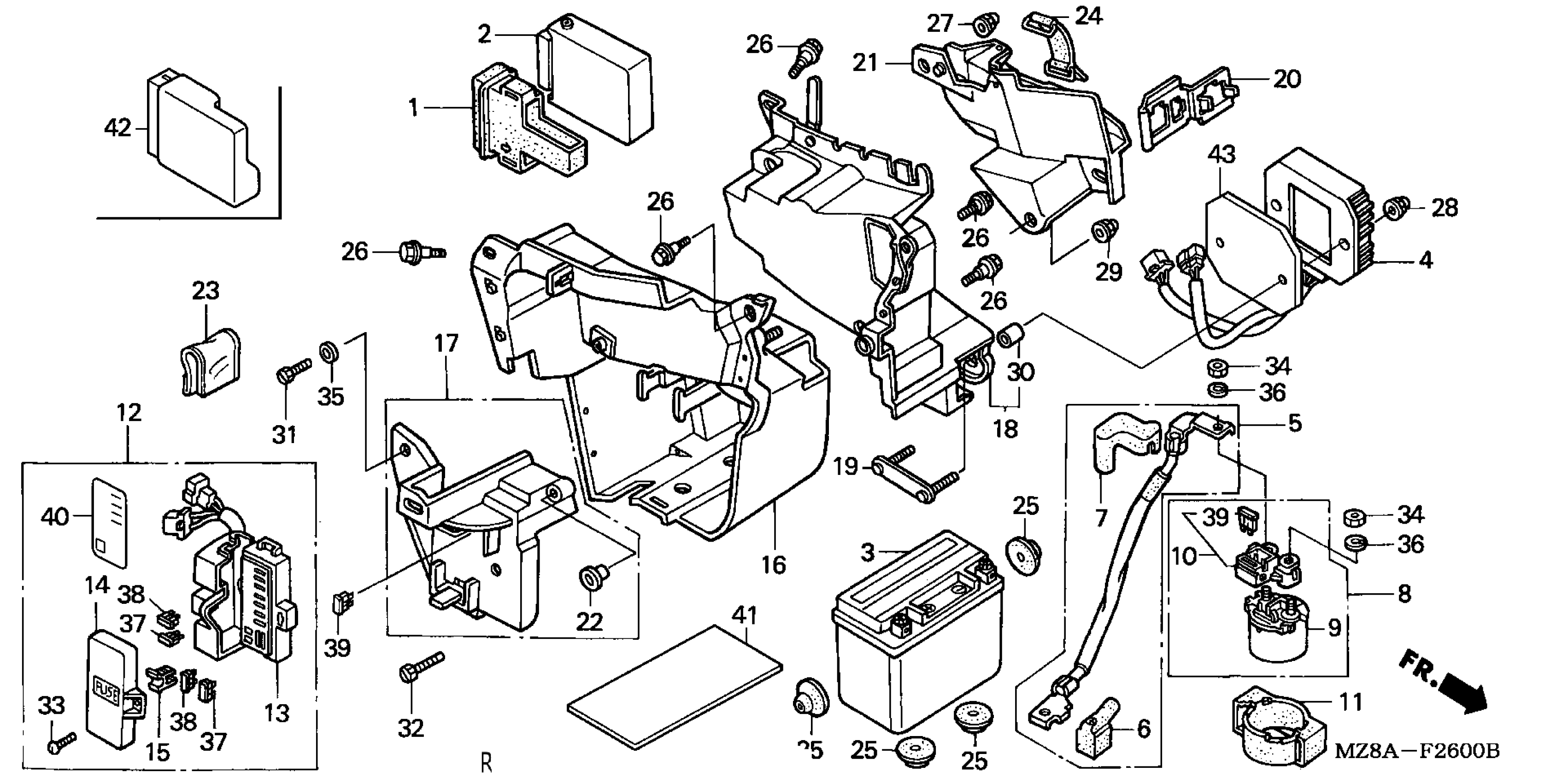

Honda VT600CA (02) SHADOW VLX, JPN, VIN# JH2PC210-2K300001 TO JH2PC210-2K309999 BATTERY + BATTERY BOX Diagram

#

Description
Price

1

SUSPENSION, SPARK UNIT

30405-MM5-000

Unavailable

2

MODULE, IGNITION CONTROL (CDI)

30410-MZ8-G21

Unavailable

3

BATTERY (YTX9-BS)

31500-HN1-003

Unavailable

3

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-677.

31500-HN1-003

Unavailable

3

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-678.

31500-HN1-003

Unavailable

4

RECTIFIER ASSY., REGULATE

31600-MY0-771

$342.43

5

CABLE, STARTER MAGNETIC BATTERY

32401-MY0-770

$27.07

6

COVER, BATTERY TERMINAL

32412-MR1-000

Unavailable

7

COVER, STARTER MAGNETIC

32416-KW9-000

Unavailable

8

SWITCH ASSY., STARTER MAGNETIC

35850-MK3-671

$127.45

9

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

10

HOLDER ASSY., FUSE

35855-MG7-751

$37.26

11

RUBBER, SHOCK

35856-MR1-000

$10.85

12

BOX ASSY., FUSE

38200-MR1-830

$96.59

13

BASE

38201-MR1-830

Unavailable

14

COVER, FUSE

38202-MR1-830

Unavailable

15

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

16

BOX, BATTERY

50325-MR1-000

Unavailable

17

COVER, BATTERY

50330-MR1-000

$27.46

18

PLATE, ELECTRIC

50333-MR1-000

Unavailable

19

PLATE, REGULATE RECTIFIER

50336-MR1-000

$12.41

20

HOLDER, CONNECTOR

50338-MR1-010

$12.49

21

TRAY, TOOL

50339-MR1-000

Unavailable

22

COLLAR A, FAIRING SETTING

64531-GE3-000

Unavailable

23

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

24

BAND, SIDE COVER

83606-356-000

$23.26

25

RUBBER, BATTERY BOX

83618-323-000

$2.47

26

BOLT, FLANGE (6MM)

90111-187-000

$5.59

27

NUT, CAP (6MM)

90201-428-900

$2.23

28

NUT, CAP (6MM)

90202-ZV0-000

$2.91

29

NUT, CAP (6MM)

90308-SB0-000

Unavailable

30

SPACER, HANDLE END GUARD

90503-MG7-000

$3.07

31

BOLT, RECESSED (6X10)

92301-06010-0A

$1.49

32

BOLT, RECESSED (6X25)

92301-06025-0A

$1.49

33

SCREW, PAN (4X10)

93500-04010-0H

$1.49

33

SCREW, PAN (4X10) This part replaces 93500-04010-1H.

93500-04010-0H

$1.49

34

NUT, HEX. (6MM)

94002-06080-0S

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

35

WASHER, PLAIN (6MM)

94101-06800

$1.49

36

WASHER, SPRING (6MM)

94111-06800

$1.49

37

FUSE, BLADE (10A)

98200-31000

$1.49

38

FUSE, BLADE (15A)

98200-31500

$1.49

39

FUSE, BLADE (30A)

98200-33000

$1.49

40

LABEL, FUSE

38215-MR1-831

Unavailable
