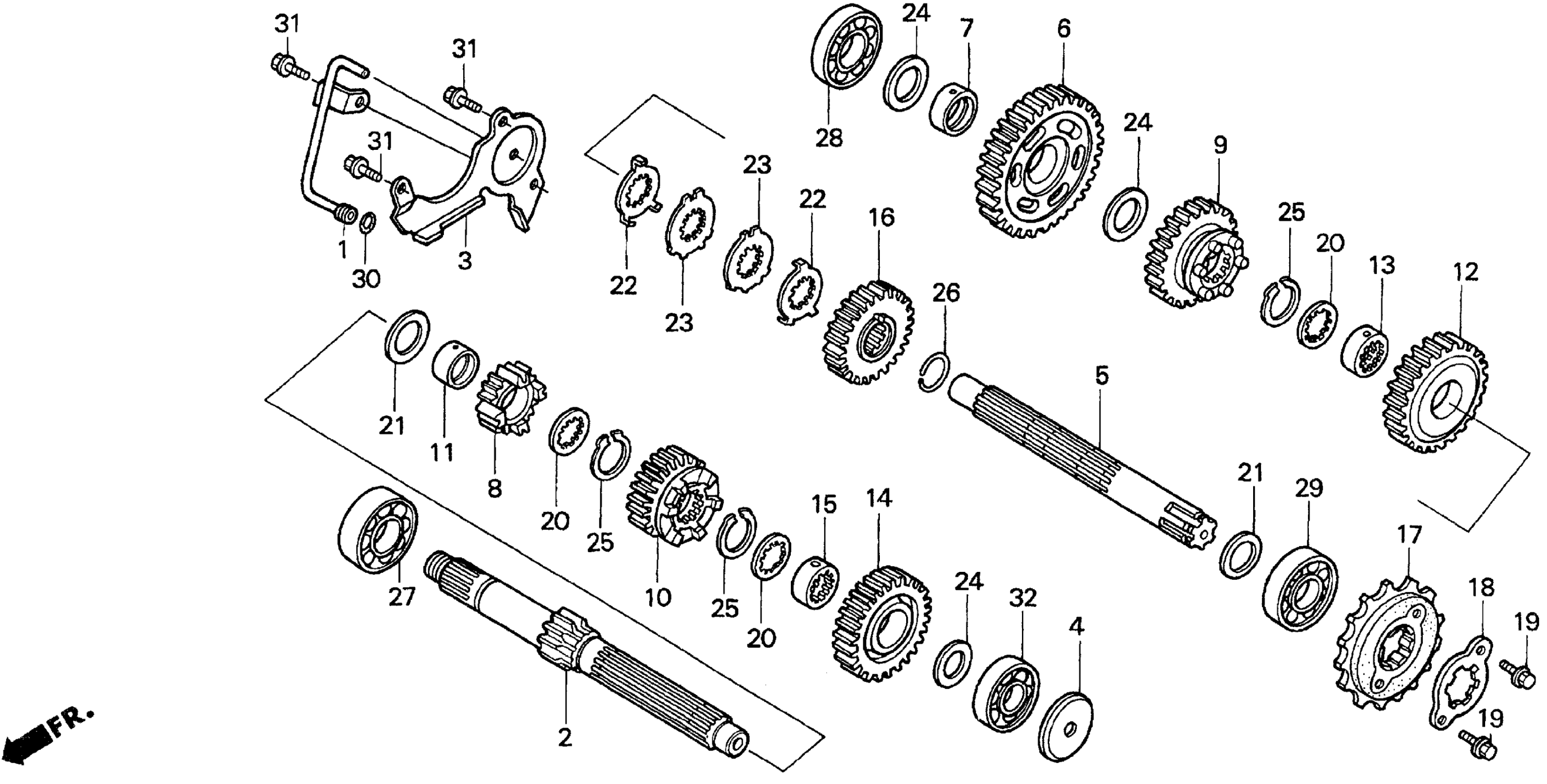

Honda VT600CA (01) MOTORCYCLE, JPN, VIN# JH2PC210-1K200001 TRANSMISSION Diagram

PIPE, OIL FEED

15520-MS6-000

$35.93

MAINSHAFT (14T)

23210-MZ8-L50

$146.75

PLATE, BEARING SETTING

23212-MS6-920

$17.62

PLATE, OIL GUIDE

23219-MF5-000

$4.87

COUNTERSHAFT

23220-MZ8-L50

Unavailable

GEAR, COUNTERSHAFT LOW (36T)

23421-MR1-000

$168.21

COLLAR (20X11.8)

23422-MB0-010

Unavailable

GEAR, MAINSHAFT SECOND (20T)

23431-MR1-000

Unavailable

GEAR, COUNTERSHAFT SECOND (34T)

23441-MR1-000

Unavailable

GEAR, MAINSHAFT THIRD (22T)

23451-MR1-000

Unavailable

BUSH (25X28X15)

23455-MM9-000

$23.02

GEAR, COUNTERSHAFT THIRD (27T) This part replaces 23461-MR1-000.

23461-MR1-700

$130.90

COLLAR, SPLINE (25X28X10.8)

23462-MR1-000

Unavailable

GEAR, MAINSHAFT FOURTH (29T)

23471-MR1-000

Unavailable

COLLAR, SPLINE (25X28X15)

23472-MR1-000

$23.28

GEAR, COUNTERSHAFT FOURTH (27T)

23481-MR1-000

$137.57

SPROCKET, DRIVE (16T)

23801-MN8-000

$63.26

PLATE, FIXING

23811-MN8-000

$11.75

BOLT, FLANGE (6X12)

90118-958-003

$3.24

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

WASHER, LOCK (25MM)

90462-MR7-000

$11.00

WASHER, SPLINE (25MM)

90465-MR7-000

$10.41

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

CIRCLIP (25MM)

90601-107-000

$3.74

CLIP (25MM)

90602-MR1-000

$2.92

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

BEARING, RADIAL BALL (6204U) This part replaces 91003-MG2-792.

96140-62040-10

$21.84

BEARING, RADIAL BALL (6204U) This part replaces 91003-MK2-680.

96140-62040-10

$21.84

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

BEARING, RADIAL BALL (5205) (NTN)

91014-969-003

$139.89

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
