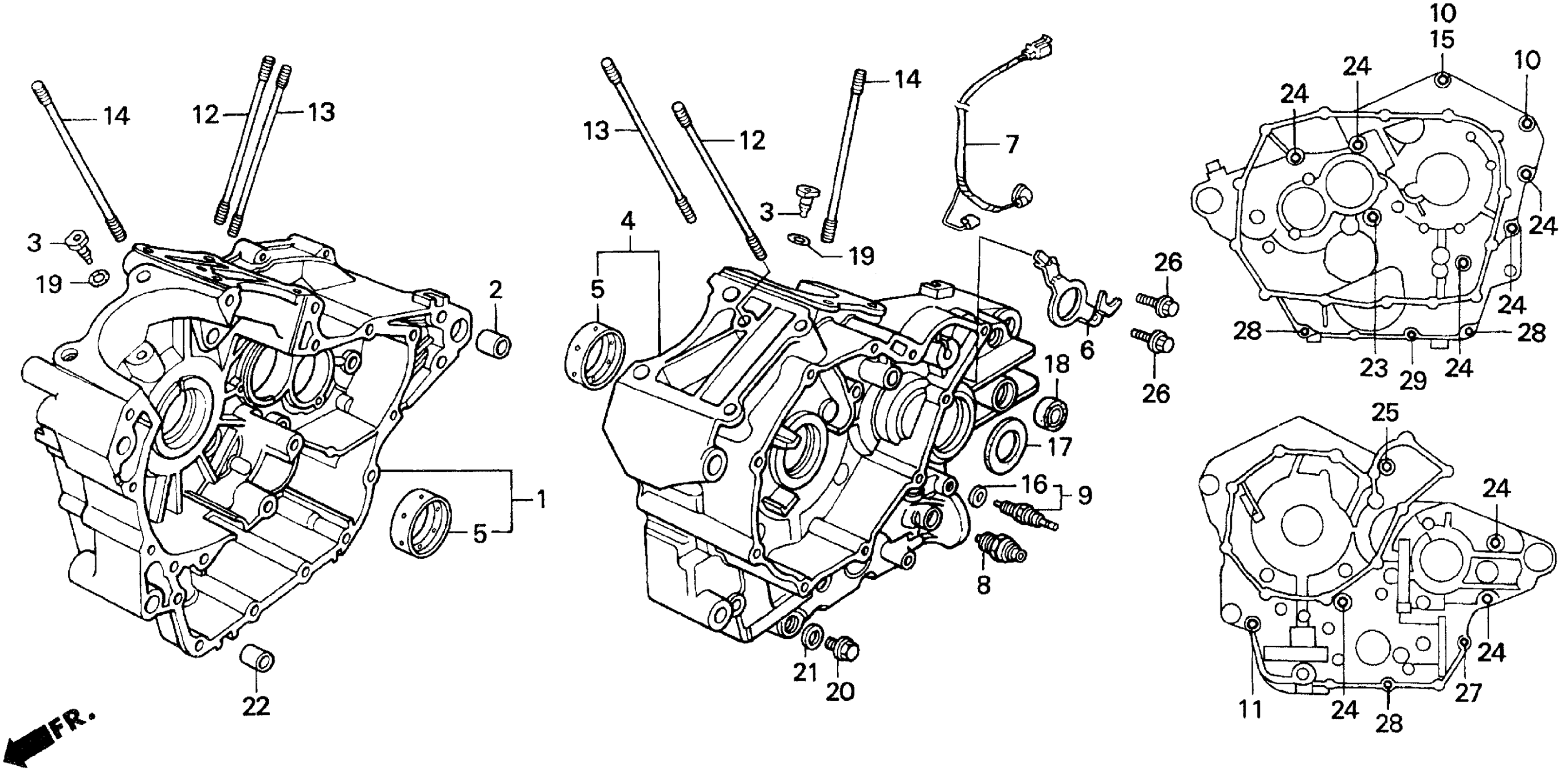

Honda VT600CA (01) MOTORCYCLE, JPN, VIN# JH2PC210-1K200001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MZ8-B40

$1,234.74

2

COLLAR (23X20)

11105-MM9-000

$9.11

3

JET, OIL

11146-MM9-000

Unavailable

4

CRANKCASE, L.

11200-MZ8-H00

$890.08

5

BEARING A, MAIN (BLUE)

13325-MM9-315

Unavailable

5

BEARING B, MAIN (BLACK)

13326-MM9-315

Unavailable

5

BEARING C, MAIN (BROWN)

13327-MM9-315

Unavailable

6

PLATE, OIL SEAL SETTING

23531-MV1-000

$10.10

7

SUB-HARNESS A

32101-MZ8-H00

Unavailable

8

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

9

SWITCH ASSY., NEUTRAL (TEC)

35600-MAW-601

$23.73

10

BOLT, FLANGE (8X140)

90002-MR1-000

$5.95

11

BOLT, FLANGE (8X70) This part replaces 90008-KE9-000.

95801-08070-00

$1.89

12

BOLT, STUD (8X189)

90011-MZ8-B40

$11.39

13

BOLT, STUD (12X177)

90012-MZ8-B40

$22.46

14

BOLT, STUD (10X177)

90013-MZ8-B40

$17.15

15

WASHER, SEALING (8MM)

90442-MR1-770

$2.28

16

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

17

OIL SEAL (25X45X7) (ARAI)

91204-MG3-003

$9.80

18

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

19

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

20

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

21

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

22

PIN, DOWEL (14X20)

94301-14200

$2.28

23

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

24

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

25

BOLT, FLANGE (8X125) This part replaces 95701-08125-00.

95701-08125-07

$4.87

25

BOLT, FLANGE (8X125)

95701-08125-07

$4.87

26

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

27

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

28

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

29

BOLT, FLANGE (6X80)

96001-06080-00

$2.21
