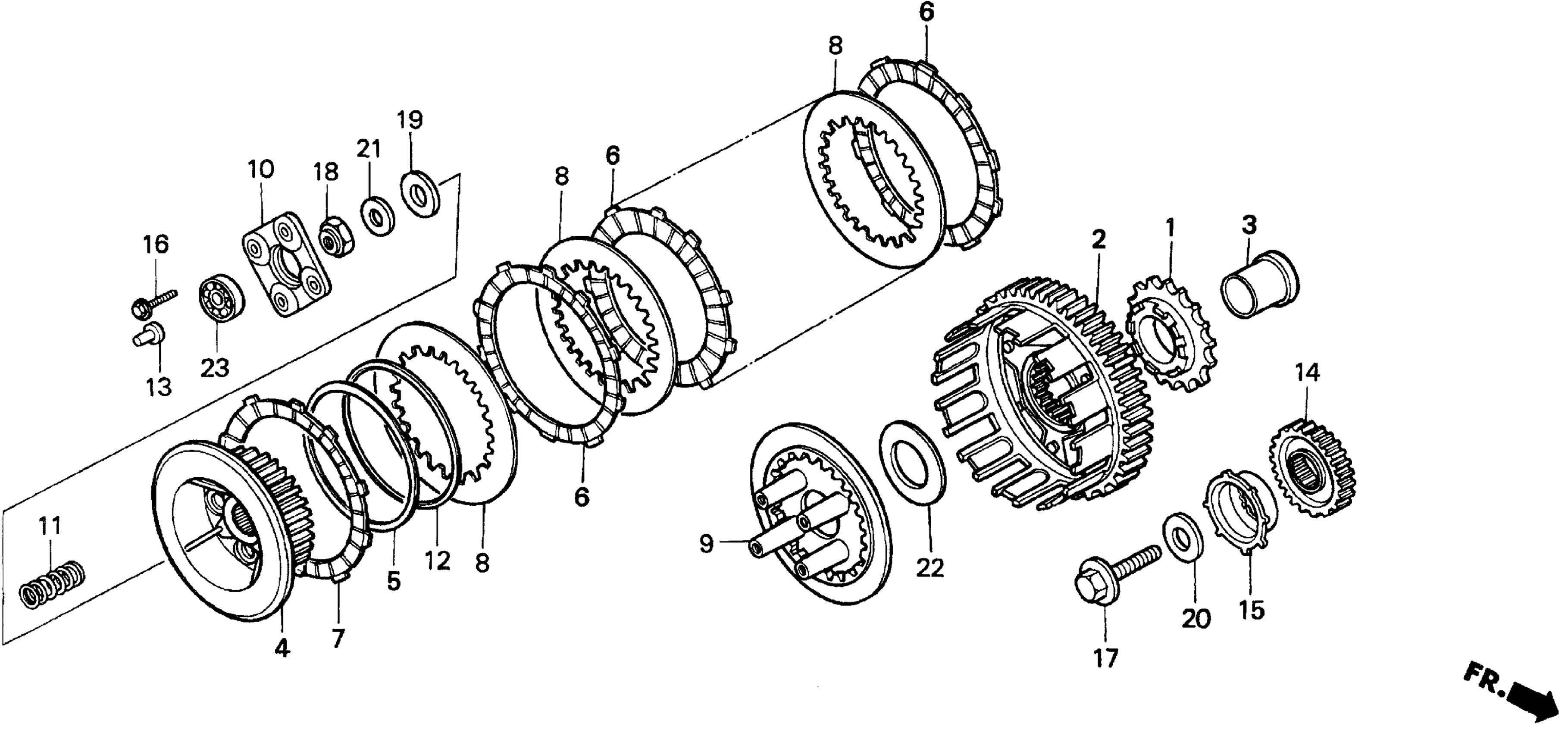

Honda VT600CA (01) MOTORCYCLE, JPN, VIN# JH2PC210-1K200001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (31T)

15131-MR1-003

Unavailable

2

CLUTCH OUTER (68T)

22100-MZ8-H00

Unavailable

3

COLLAR, PRIMARY DRIVEN

22116-MF5-000

$49.72

4

CENTER, CLUTCH

22120-MZ8-B40

Unavailable

5

SEAT, JUDDER SPRING

22125-435-000

$9.15

6

DISK, CLUTCH FRICTION

22201-MAL-600

$17.72

7

DISK B, CLUTCH FRICTION

22202-MAE-000

$16.01

8

PLATE, CLUTCH

22321-MM9-000

$9.48

9

PLATE, CLUTCH PRESSURE This part replaces 22350-MS6-921.

22350-MS6-922

$60.04

10

PLATE, CLUTCH LIFTER

22361-MR1-000

$21.17

11

SPRING, CLUTCH

22401-MM9-000

$3.81

12

SPRING, JUDDER

22402-435-000

$34.37

13

ROD, CLUTCH LIFTER

22847-MZ8-H00

$5.84

14

GEAR, PRIMARY DRIVE (36T)

23103-MR1-010

Unavailable

15

ROTOR, PULSE

30211-MZ8-H00

Unavailable

16

BOLT, SPECIAL FLANGE (6X30)

90007-MR1-000

$2.92

17

BOLT, UBS (12X28)

90013-415-000

$11.49

18

NUT, LOCK (18MM)

90236-HA0-000

$10.45

19

WASHER (18MM)

90401-MZ8-B40

$2.52

20

WASHER (12.5X34X5)

90402-PC6-000

$21.19

21

WASHER, LOCK

90432-428-000

$7.57

22

WASHER, THRUST (22MM)

90452-471-000

$4.76

23

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
