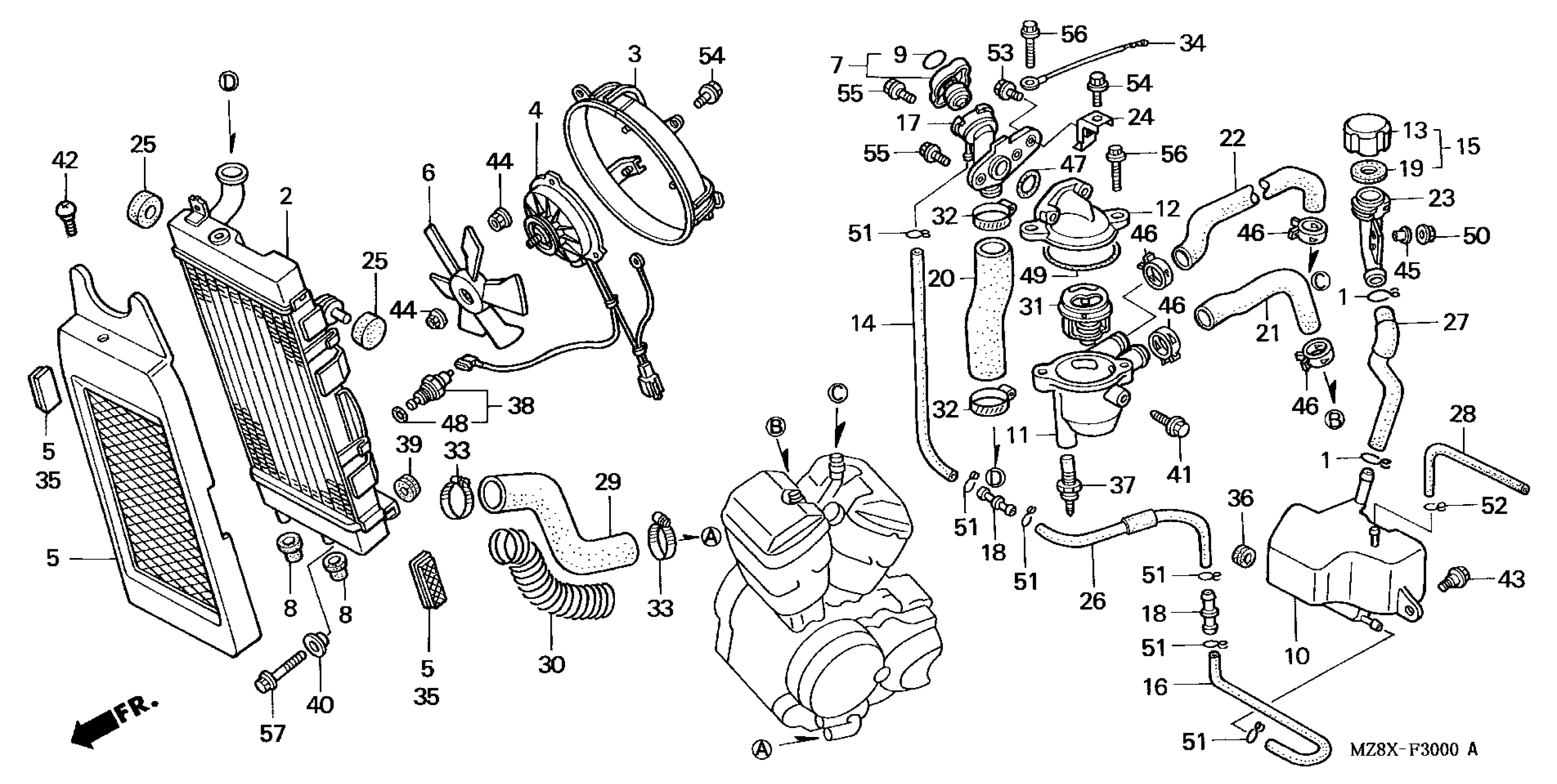

Honda VT600CA (00) MOTORCYCLE, JPN, VIN# JH2PC210-YM110001 RADIATOR Diagram

CLIP, BREATHER TUBE

17316-611-000

$9.23

RADIATOR This part replaces 19010-MZ8-G21.

19010-MZ8-G22

Unavailable

SHROUD

19015-MZ8-003

Unavailable

MOTOR ASSY., FAN

19030-MZ8-G21

Unavailable

GRILLE, RADIATOR

19031-MZ8-K00

Unavailable

FAN, COOLING (TOYO)

19040-MF5-751

$63.21

CAP, RADIATOR This part replaces 19045-GBF-770.

19045-MZ1-621

$50.26

CAP, RADIATOR

19045-MZ1-621

$50.26

RUBBER, RADIATOR MOUNTING

19051-MB2-000

$4.53

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$9.22

TANK, RESERVE

19101-MR1-010

$36.50

CASE, THERMOSTAT

19102-MR1-000

Unavailable

CAP, THERMOSTAT

19103-MR1-000

Unavailable

CAP, RESERVE TANK

19104-ME9-000

$16.36

TUBE B, RADIATOR RESERVE

19104-MR1-000

Unavailable

CAP ASSY., RESERVE TANK

19105-MG8-000

$12.95

TUBE, RADIATOR RESERVE

19105-MR1-000

$12.39

NECK, FILLER

19106-MF5-003

Unavailable

JOINT, OVERFLOW TUBE

19106-MJ8-000

Unavailable

GASKET, RESERVE TANK

19107-MG8-000

$5.05

HOSE, RADIATOR (UPPER)

19107-MR1-000

$14.75

HOSE, FR. OUTLET WATER

19108-MZ8-770

Unavailable

HOSE, RR. OUTLET WATER

19109-MR1-000

$25.05

NECK, RESERVE TANK FILLER

19111-MR1-000

Unavailable

STAY, THERMOSTAT

19111-MZ8-G20

$6.66

MOUNT, RADIATOR (LOWER)

19112-MF5-840

$5.12

TUBE C, RADIATOR RESERVE

19112-MR1-000

Unavailable

TUBE, RADIATOR RESERVE TANK

19113-MR1-000

Unavailable

TUBE, OVERFLOW

19114-MR1-000

Unavailable

HOSE, RADIATOR (LOWER)

19115-MR1-000

$32.64

PROTECTOR, RADIATOR HOSE (LOWER)

19116-MR1-000

$37.20

THERMOSTAT ASSY.

19300-KE8-000

$61.93

CLAMP, WATER HOSE

19505-ML3-770

$7.08

CLAMP, RADIATOR HOSE

19509-MM5-003

$13.58

SUB-WIRE B

32111-167-000

Unavailable

REFLECTOR SET, FR. REFLEX

33745-MBA-670

$28.16

GROMMET A, TUBE This part replaces 36043-657-000.

36037-657-000

$6.16

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$71.91

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

COLLAR, SETTING

61104-422-000

$6.91

BOLT, SPECIAL (8MM)

90042-ME9-000

$5.43

BOLT, COWL SETTING

90107-KW7-930

$4.54

BOLT, FLANGE (6MM)

90111-162-000

$2.89

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

COLLAR, GEARSHIFT LEVER SETTING This part replaces 90522-MF5-000.

90522-170-700

$1.84

CLAMP, WATER HOSE (21MM)

90701-MF5-003

$5.66

O-RING (18.9X1.5)

91302-MF5-000

$2.92

O-RING (13.5X1.4)

91307-PH7-660

$2.83

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

O-RING (47.5X2)

91311-KE8-000

$2.39

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (C11)

95002-70000

$1.56

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
