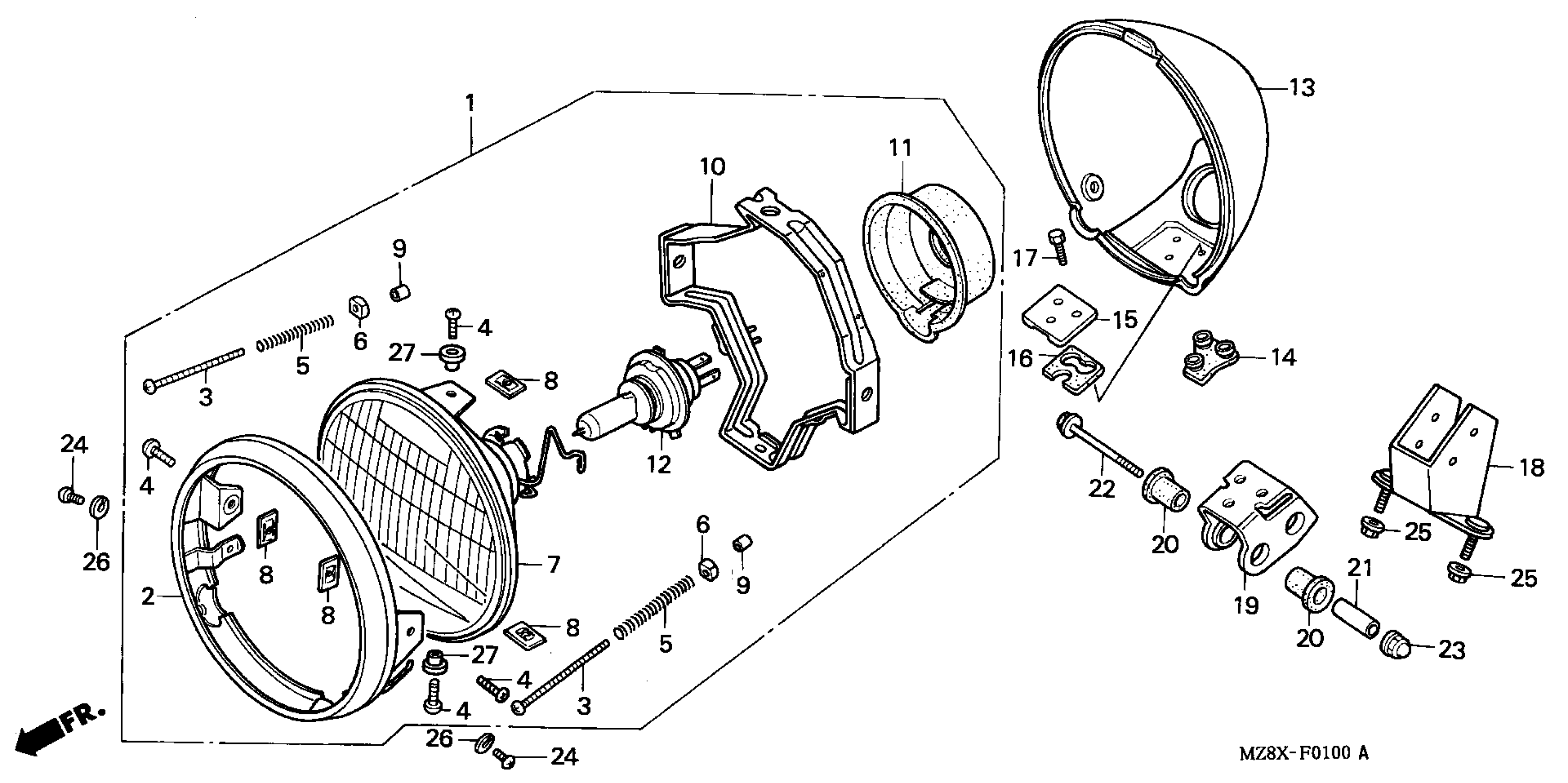

Honda VT600CA (00) MOTORCYCLE, JPN, VIN# JH2PC210-YM110001 HEADLIGHT (1) Diagram

HEADLIGHT ASSY. (12V 60/55W)

33100-MR1-671

Unavailable

RIM, HEADLIGHT

33101-MM2-003

Unavailable

SCREW, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33103-MM2-003

$2.74

SCREW, PAN (5X8)

33104-MR1-670

$2.61

SPRING, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33108-MM2-003

$3.26

NUT, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33118-438-841

$2.23

HEADLIGHT UNIT

33120-MM2-671

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

COVER, SCREW

33136-426-830

$1.89

RING, HEADLIGHT

33153-MM2-003

Unavailable

COVER, RUBBER

33180-MJ0-010

$15.62

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

CASE, HEADLIGHT

61301-MR1-000

Unavailable

RUBBER, MOUNTING

61303-MR1-000

Unavailable

COLLAR

61304-MR1-000

$21.84

RUBBER B, MOUNTING

61305-MR1-000

$6.44

BOLT, HEX. (6X18)

61306-MR1-000

$2.10

STAY, HEADLIGHT

61311-MR1-000

Unavailable

BRACKET, HEADLIGHT

61315-MM8-003

Unavailable

RUBBER, HEADLIGHT MOUNTING

61315-MR1-000

$3.26

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.97

BOLT, CAP (6MM)

90132-MK7-000

$3.04

NUT, CAP (6MM)

90201-415-000

$2.05

SCREW, PAN (5X12)

93500-05012-0B

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49
