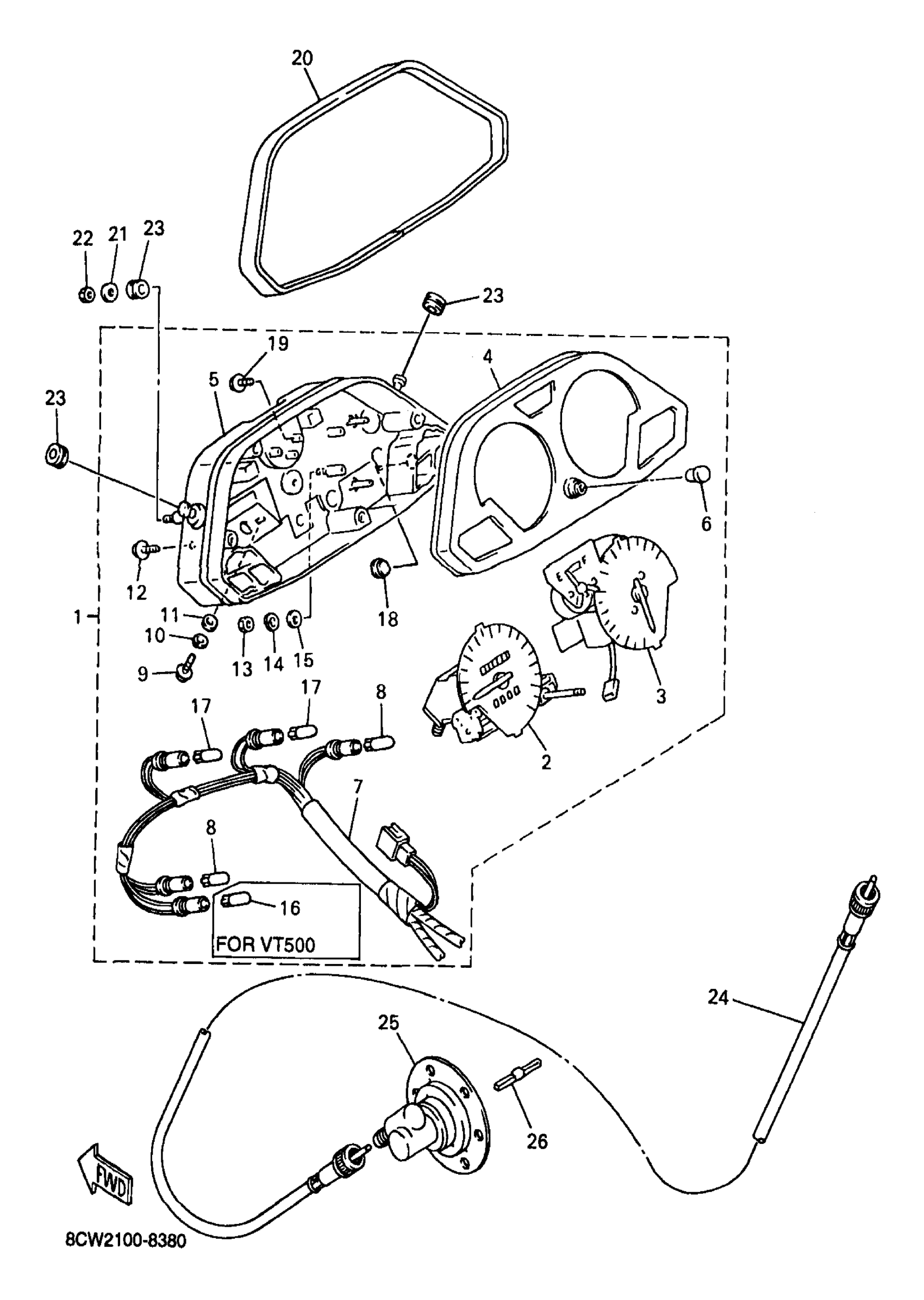

Yamaha VT600B (VENTURE 600) 8CW2 1998 METER Diagram
#
1
SPEEDOMETER ASSEMBLY
8CW-83500-40-00
Unavailable
1
SPEEDOMETER ASSEMBLY
8CX-83500-40-00
Unavailable
2
SPEEDOMETER ASSY
8CR-83580-40-00
Unavailable
3
. TACHOMETER ASSEMBLY
8CX-83540-40-00
Unavailable
4
. COVER, METER
8CW-83559-40-00
Unavailable
4
. COVER, METER
8CX-83559-40-00
Unavailable
5
. CASE, UNDER (8AS-8353H-20-00)
89A-8353H-40-00
Unavailable
6
KNOB, TRIP METER
29L-83578-00-00
Unavailable
7
. SOCKET CORD ASSEMBLY
8CC-83509-30-00
Unavailable
7
SOCKET CORD ASSY
8CX-83509-40-00
Unavailable
8
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
8
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
9
SCREW, PAN HEAD
98517-04012-00
$3.88
10
WASHER(6TA)
92907-04100-00
$8.49
11
WASHER(JF2)
92907-04600-00
$1.71
12
SCREW, TRUSS TAP.
97707-40014-00
Unavailable
13
NUT(6TA)
95307-04600-00
Unavailable
14
WASHER(6TA)
92907-04100-00
$8.49
15
WASHER(JF2)
92907-04600-00
$1.71
16
BULB (6V 3W)
4N0-83516-00-00
Unavailable
17
BULB (12V-1.7W)
3GM-83517-00-00
Unavailable
18
. PLUG, BLIND
4BE-8352K-00-00
Unavailable
19
SCREW, WITH WASHER(36Y)
90159-03102-00
Unavailable
20
TRIM 5
8CR-77225-00-00
Unavailable
21
WASHER, PLATE
90201-06380-00
Unavailable
22
NUT(6TA)
95317-06600-00
Unavailable
23
DAMPER
5J0-83513-00-00
Unavailable
24
SPEEDOMETER CABLE ASSY
8CR-83550-10-00
Unavailable
25
METER GEAR HOUSING COMP.
8CR-47700-00-00
Unavailable
26
JOINT
8K4-47715-00-00
Unavailable
