Description

Price

1

GEAR 1

8DM-1760A-18-00

Unavailable

2

BOLT,CAP

8DV-17617-10-00

$4.63

3

CLAMP

90464-13077-00

$8.49

4

. CLAMP

90465-10381-00

Unavailable

5

CLAMP(4FM)

90464-15195-00

$4.41

6

CLAMP(4FM)

90464-15195-00

$4.41

7

DAMPER

8CW-82176-00-00

Unavailable

8

PIPE (L320)

8CW-8235W-01-00

Unavailable

9

CLIP(41W)

90467-08092-00

$9.49

10

. BRACKET, BATTERY

8CW-2199G-00-00

Unavailable

11

BOLT, FLANGE

95817-06014-00

Unavailable

12

. SHIELD, HEAT

8CW-2199H-00-00

Unavailable

13

SEAT, BATTERY

84N-82122-00-00

$6.99

14

BAND, BATTERY

1E6-82131-00-00

$27.99

15

. WIRE, PLUS LEAD

8CW-82115-00-00

Unavailable

16

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

18

. COVER, TERMINAL

8DM-81916-00-00

Unavailable

19

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

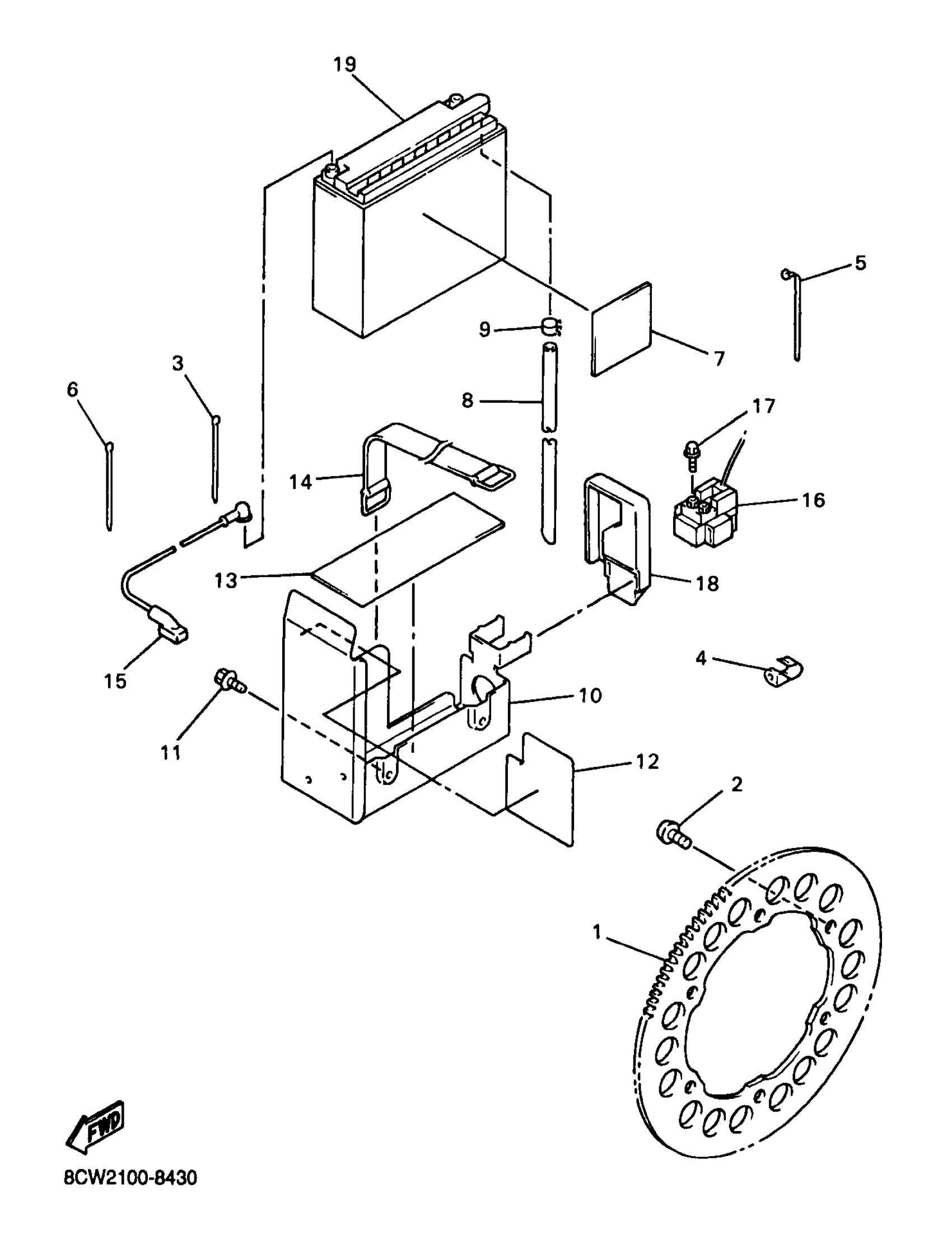

Yamaha VT600B (VENTURE 600) 8CW2 1998 ELECTRICAL STARTING Diagram

GEAR 1

BOLT,CAP

CLAMP

. CLAMP

CLAMP(4FM)

CLAMP(4FM)

DAMPER

PIPE (L320)

CLIP(41W)

. BRACKET, BATTERY

BOLT, FLANGE

. SHIELD, HEAT

SEAT, BATTERY

BAND, BATTERY

. WIRE, PLUS LEAD

STARTER RELAY ASSY (RC19-016)

BOLT, SMALL FLANGE

. COVER, TERMINAL

YB16ALA2 YUASA BATTERY
