- VT600B (VENTURE 600) 8CW2 1998
DOUBLE SEAT VT600

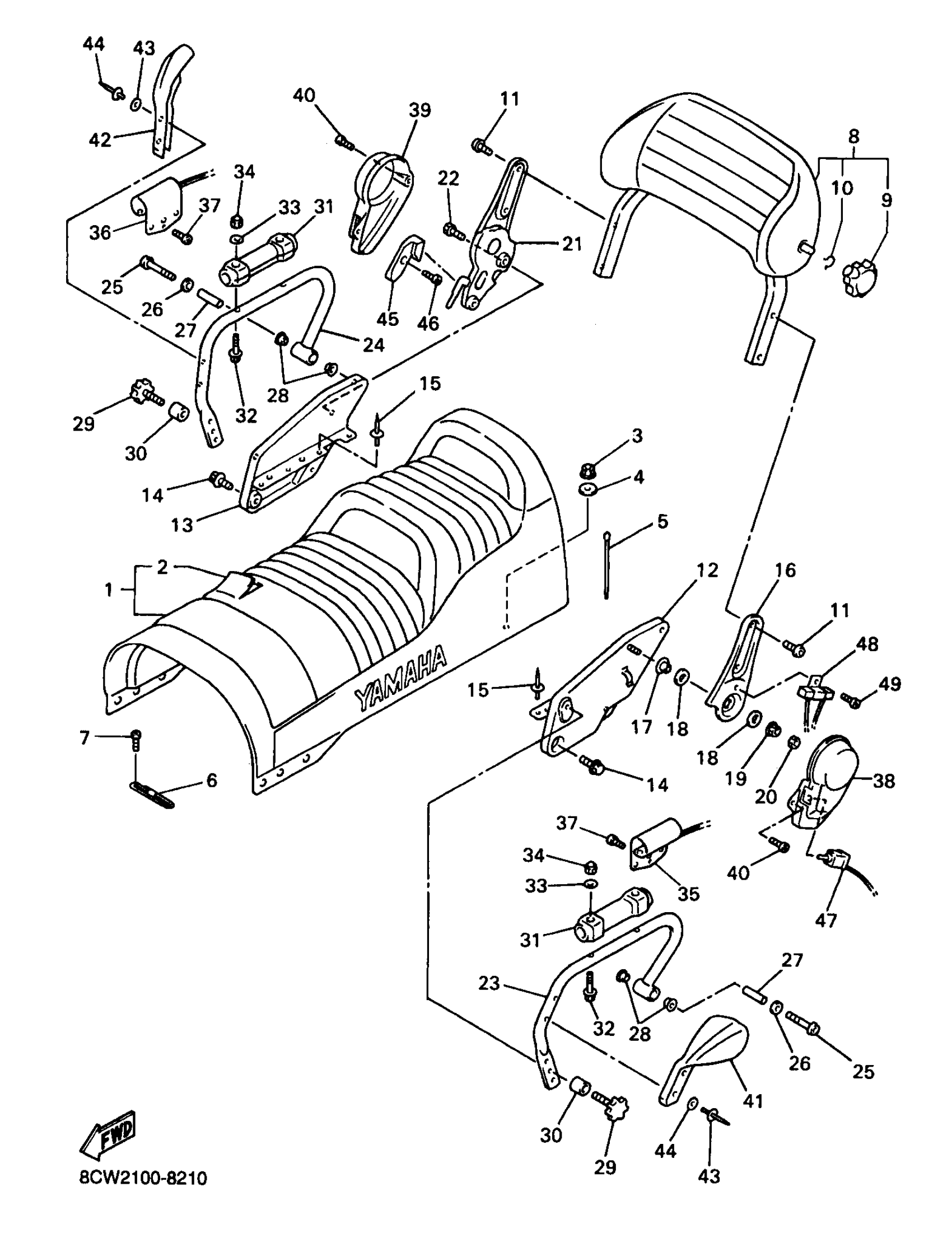

Yamaha VT600B (VENTURE 600) 8CW2 1998 DOUBLE SEAT VT600 Diagram
#
1
. DOUBLE SEAT ASSY
8CW-24730-20-00
Unavailable
2
.. COVER, SEAT
8CW-2470F-20-00
Unavailable
3
NUT, NYLON
95717-08300-00
$2.70
4
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
5
CLAMP
90464-13077-00
$8.49
6
BAND, SEAT
8CR-24734-00-00
Unavailable
7
SCREW, BINDING
90154-06040-00
Unavailable
8
SEAT BACK ASSY
8DM-24790-00-00
Unavailable
9
KNOB
8DM-24598-01-00
Unavailable
10
CLIP
8DM-24519-00-00
Unavailable
11
BOLT, BUTTON HEAD
92017-10016-00
$8.49
12
STAY, FRONT 1
8DM-2474F-00-00
Unavailable
13
STAY, FRONT 2
8DM-2474G-00-00
Unavailable
14
BOLT, FLANGE
95817-08014-00
$5.60
15
RIVET, BLIND(8CH)
90267-47187-00
$2.34
16
ARM 2
8DM-2477R-00-00
Unavailable
17
COLLAR(4BP)
90387-083Y8-00
Unavailable
18
WASHER, PLATE
90202-12236-00
Unavailable
19
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
20
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
21
SEAT LEVER ASSY
8DM-24760-00-00
Unavailable
22
BOLT, HEXAGON
97027-10014-00
Unavailable
23
. BRACKET, ASSIST GRIP 1
8DM-2474H-00-00
Unavailable
24
. BRACKET, ASSIST GRIP 2
8DM-2474J-00-00
Unavailable
25
BOLT,BUTTON
92017-10070-00
Unavailable
26
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
27
COLLAR 802473690000
90387-10090-00
Unavailable
28
COLLAR (8U7)
90387-145G7-00
Unavailable
29
BODY, SEAT LOCK
8CW-2479H-00-00
Unavailable
30
DAMPER, SEAT
8CW-24737-00-00
Unavailable
31
. ASSIST, GRIP
8CW-2474A-00-00
Unavailable
32
BOLT, FLANGE
95817-06040-00
Unavailable
33
WASHER(6TA)
92907-06200-00
Unavailable
34
NUT(4MY)
95307-06800-00
Unavailable
35
ASSIST GRIP WARMER ASSY 1
8CW-2474B-00-00
Unavailable
36
. ASSIST GRIP WARMER ASSY 2
8CW-2474C-00-00
Unavailable
37
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
38
COVER
8DM-24796-00-00
Unavailable
39
COVER,2
8DM-2475X-01-00
Unavailable
40
SCREW, TRUSS TAP.
97707-40012-00
Unavailable
41
PROTECTOR,1
8DM-2476U-00-00
Unavailable
42
PROTECTOR,2
8DM-2476V-00-00
Unavailable
43
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
44
WASHER, PLAIN (3GDF)
90201-051K1-00
Unavailable
45
LEVER, SEAT
8DM-2477F-00-00
Unavailable
46
SCREW, TAPPING(JN5)
97707-40008-00
Unavailable
47
SWITCH
8DM-82917-01-00
Unavailable
48
RESISTOR ASSY
8DM-85370-00-00
Unavailable
49
SCREW, BINDING
98907-06012-00
Unavailable
