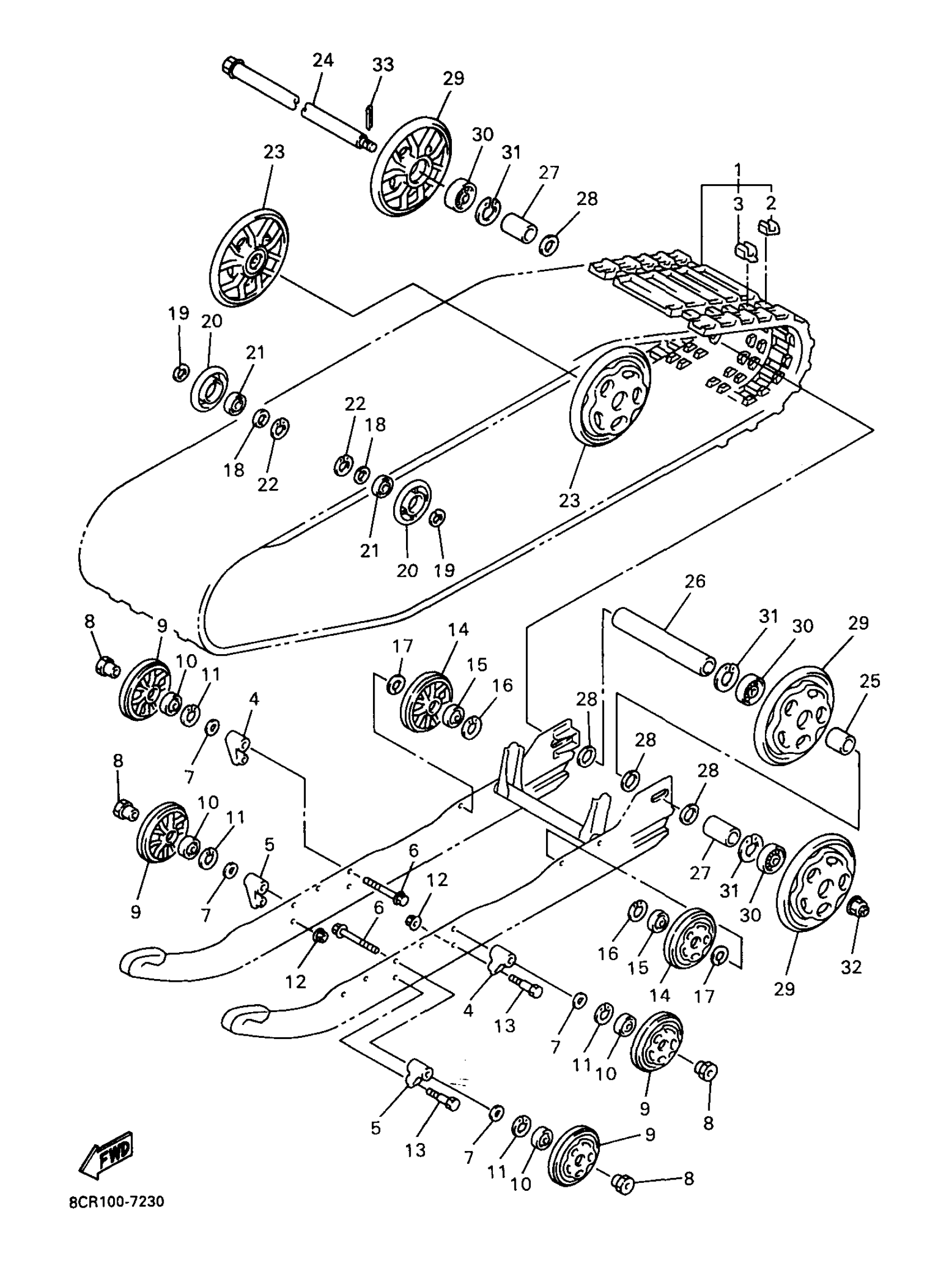

Yamaha VT600A (VENTURE 600) 8CW1 1997 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8BN-47110-10-00

Unavailable

2

PLATE, REINFORCEMENT

8CR-47113-00-00

$9.99

3

METAL, SLIDE

8CR-47115-00-00

$7.99

4

BRACKET 7

8CM-47419-10-00

$39.99

5

BRACKET 7

8CM-47419-20-00

Unavailable

6

BOLT, FLANGE

90105-10029-00

$5.60

7

WASHER, PLATE (17K)

90201-106F2-00

$10.49

8

NUT(8CM)

90179-10670-00

$12.49

9

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

10

BEARING(8AB)

93306-00444-00

$41.99

11

CIRCLIP(5U8)

99009-42500-00

$8.49

12

NUT, SELF-LOCKING

90185-08169-00

$8.49

13

BOLT(8CM)

90101-08774-00

$7.49

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

15

BEARING(8AB)

93306-00444-00

$41.99

16

CIRCLIP(5U8)

99009-42500-00

$8.49

17

CIRCLIP(1AR)

99009-20400-00

Unavailable

18

COLLAR(8AB)

90387-2004V-00

Unavailable

19

CIRCLIP(1AR)

99009-20400-00

Unavailable

20

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

21

BEARING(8AB)

93306-00444-00

$41.99

22

CIRCLIP(5U8)

99009-42500-00

$8.49

23

GUIDE WHEEL ASSY

8CR-47550-00-00

Unavailable

24

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

25

COLLAR

90387-204R3-00

Unavailable

26

COLLAR

90387-20023-00

Unavailable

27

COLLAR

90387-20022-00

Unavailable

28

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

29

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

30

BEARING(8AE)

93306-20469-00

Unavailable

31

CIRCLIP(48Y)

99009-47500-00

Unavailable

32

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable
